6 Spool Hydraulic Control Valve: Design, Functionality, and Applications

The 6 spool hydraulic control valve is an essential component in hydraulic systems, designed to control fluid flow into various paths from one or more sources. This type of valve is widely used in heavy machinery and industrial applications where precise hydraulic control is needed. The 6 spool valve consists of six individual spools housed in a cylindrical body, and these spools can be either mechanically or electrically controlled.

Construction and Function of 6 Spool Hydraulic Control Valves

The 6 spool hydraulic control valve works through the movement of the spools inside the valve body. As the spools shift, they direct hydraulic fluid through different paths. Each spool is equipped with lands and grooves:

There are two fundamental positions for each spool:

Some 6 spool hydraulic valves feature additional positions, such as a spring-centered position where the valve has two working positions and a central normal position, offering more precise control of fluid flow.

Specification of 6 Spool Hydraulic Control Valves

6 spool hydraulic control valves are generally specified by the number of ports (connections) and the number of switching positions. This is usually represented as np/ns, where:

For example, a valve might be described as a 4-way, 3-position valve (or 4/3 control valve). In this case:

In addition to the valve's physical characteristics, other important factors such as the type of hydraulic fluid, fluid viscosity, and operating temperature should be considered when selecting the appropriate valve for a system.

Methods of Actuation for 6 Spool Hydraulic Control Valves

Manual Operation: In manually operated valves, the spools are controlled using levers or paddles. The operator applies force to move the spools, directing the fluid flow to the desired path. Springs are often used to return the valve to its normal position when the lever is released.

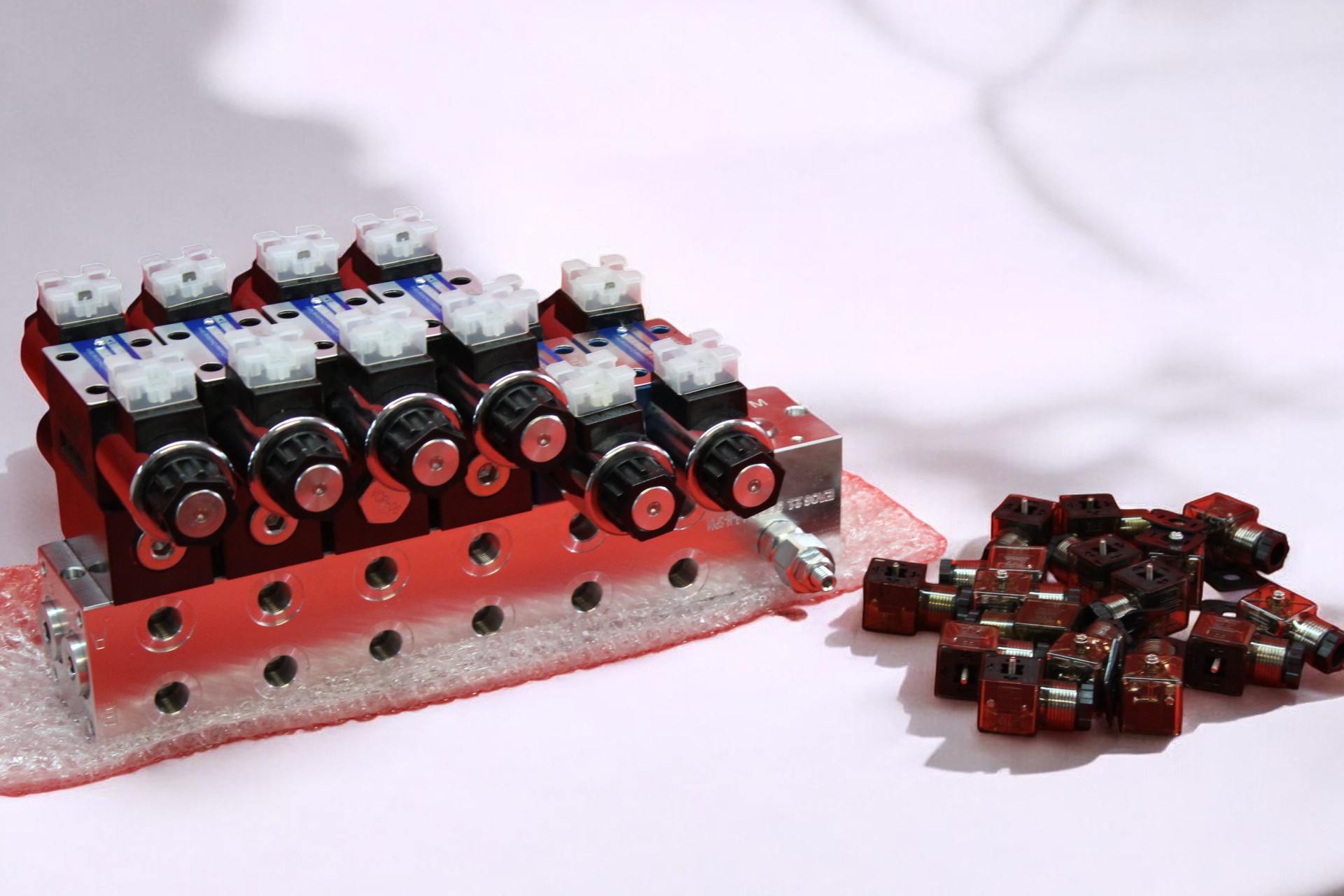

Electrical Operation: Electrically operated valves use electromechanical solenoids to move the spools. When electrical power is applied, the spools shift to allow fluid flow. This method is popular due to its simplicity and ease of control, but electrically operated solenoids are limited in terms of the force they can generate. Continuous operation can lead to heat buildup, limiting the valve’s duty cycle in high-demand applications.
Pneumatic and Hydraulic Operation: For systems that require more force to actuate the spools, pneumatic or hydraulic methods are used. Often, a low-power solenoid (pilot valve) controls the flow of hydraulic fluid to the larger valve, ensuring that the system operates efficiently while minimizing energy consumption.

Applications of 6 Spool Hydraulic Control Valves

The 6 spool hydraulic control valve is commonly found in machinery and systems that require precise control of multiple hydraulic functions. Typical applications include:

Construction Equipment: These valves are used in excavators, cranes, loaders, and other heavy machinery to control various hydraulic functions, such as lifting, rotating, or extending components.
Agricultural Machinery: Tractors and other agricultural equipment use these valves to regulate hydraulic systems for plowing, lifting implements, and other hydraulic tasks.
Industrial Machinery: In industrial automation, 6 spool valves are integral to managing multiple hydraulic actuators, such as clamps, lifts, and presses, ensuring smooth and efficient operations.

Conclusion

The 6 spool hydraulic control valve is a versatile and critical component in modern hydraulic systems, providing precise control over fluid flow to various parts of machinery. Whether operated manually, electrically, or through pneumatic or hydraulic methods, these valves enable efficient and accurate hydraulic operations across a wide range of industries, from construction to agriculture and industrial automation. Their ability to manage multiple fluid paths makes them essential for complex machinery that requires reliable and flexible hydraulic control.
