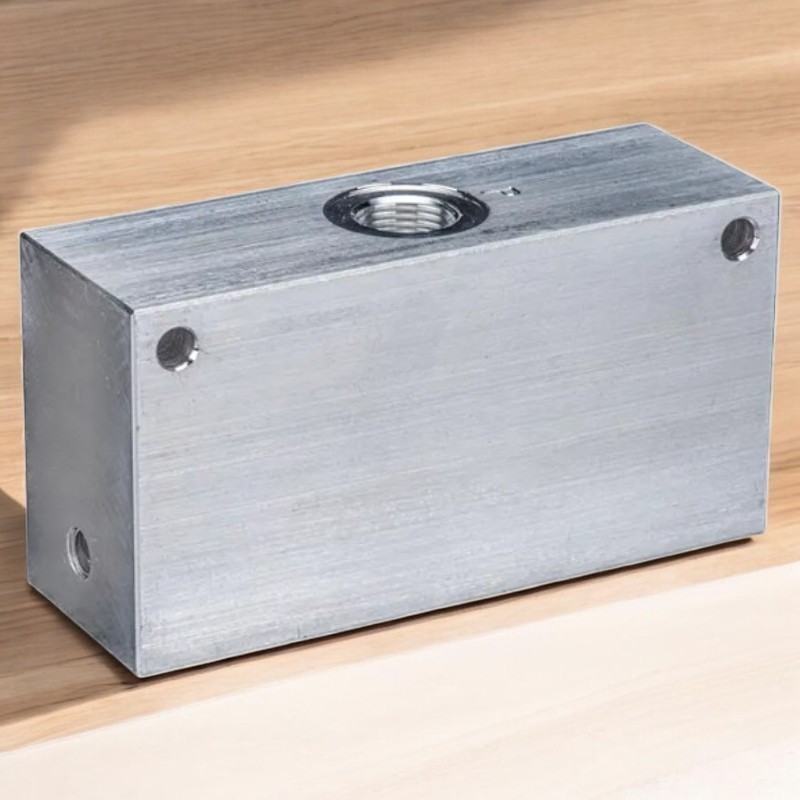

Flow Divider Combiner VDFR ± 5
220 $
Product ID: 1396
Order number

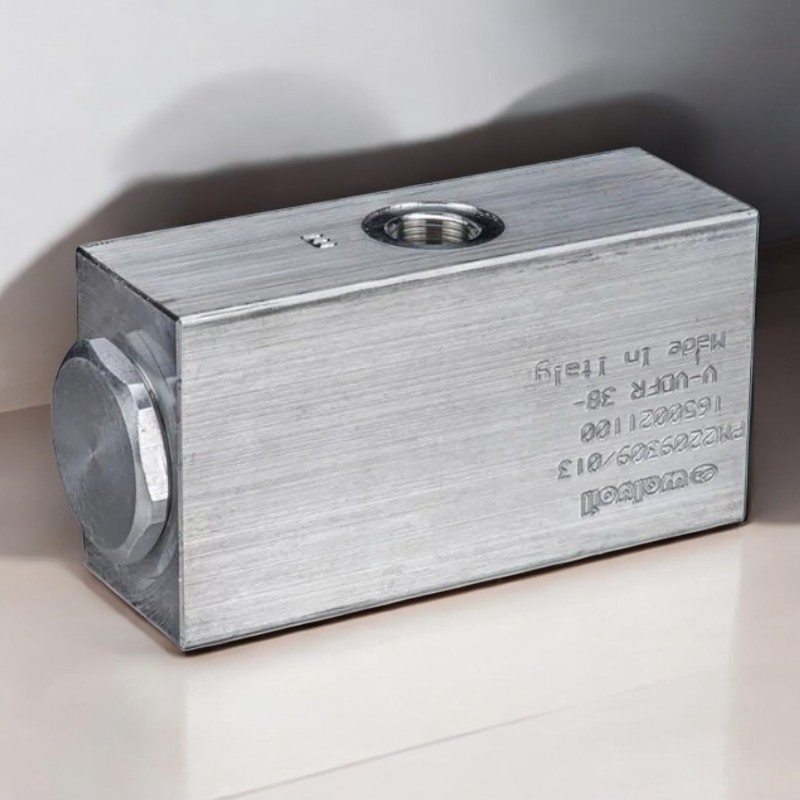

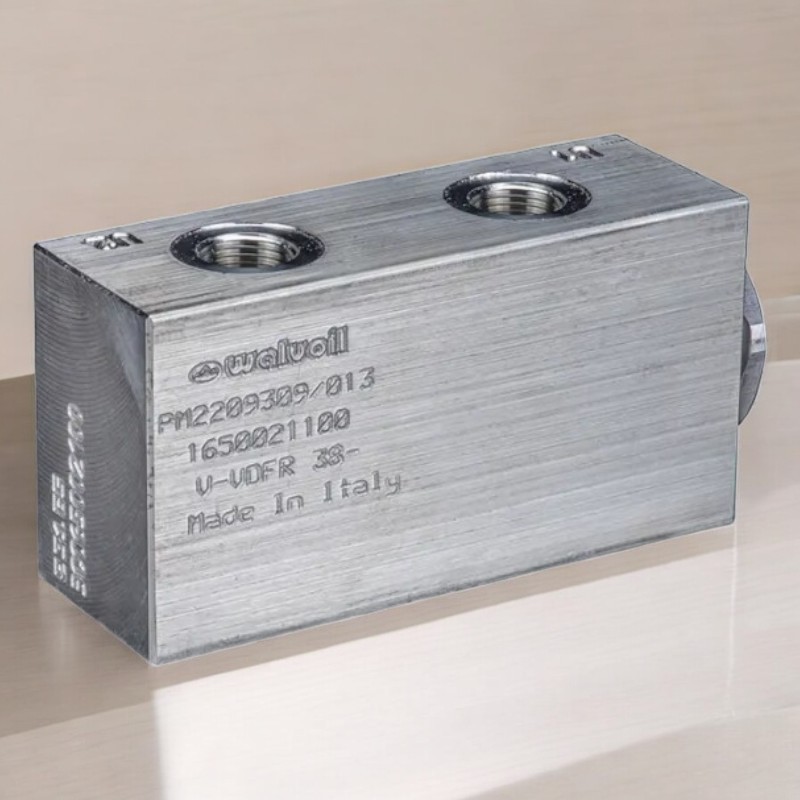

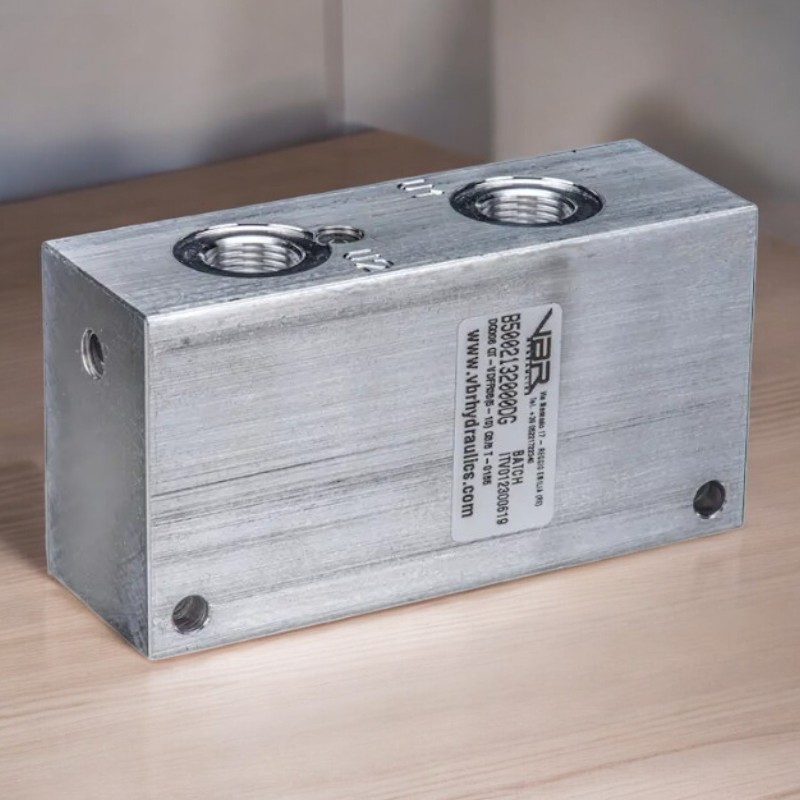

Piston flow divider for dividing and combining volume flows.
Split ratio at the outlets: 50 / 50
Max. pitch error in %: ± 5
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information

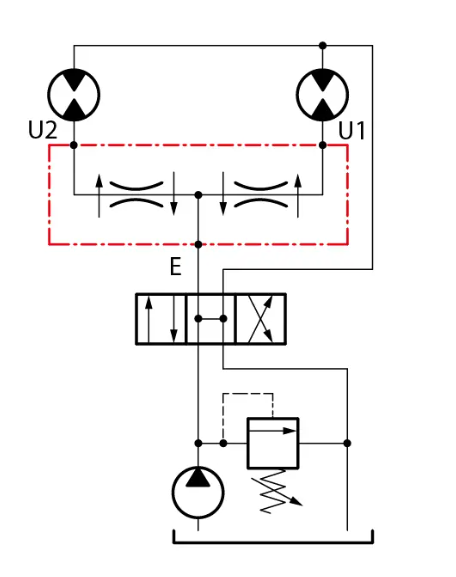

Piston flow dividers are used to divide an input volume flow into two equal volume flows. They can be used to divide and/or collect the volume flow. The valves are used to synchronize two mechanically unconnected consumers. The valves operate independently of the load pressure and input volume flow.
To counteract any imbalance in the hydraulic cylinders, it is essential to balance the cylinders in their end position.
Otherwise, the pitch errors add up with each extension and retraction.
 |
 |

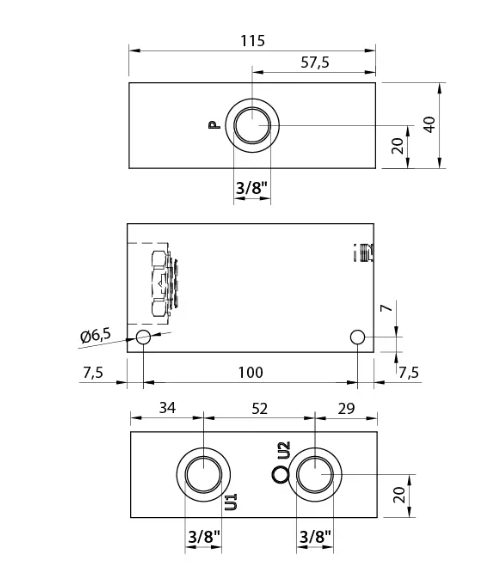

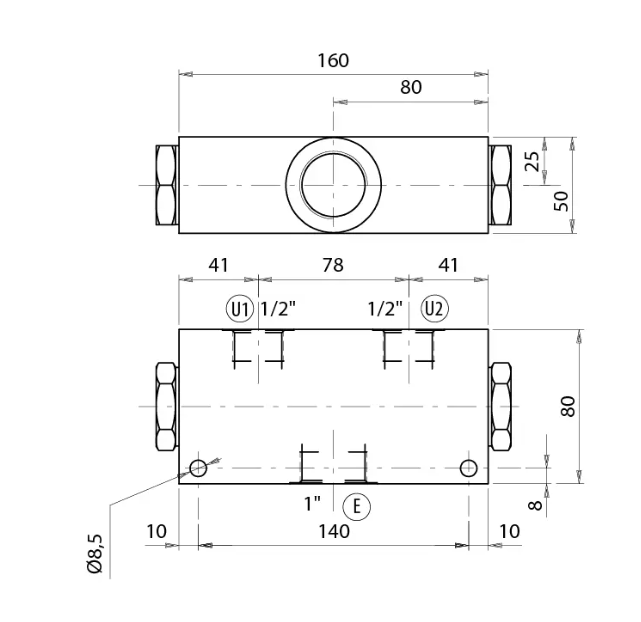

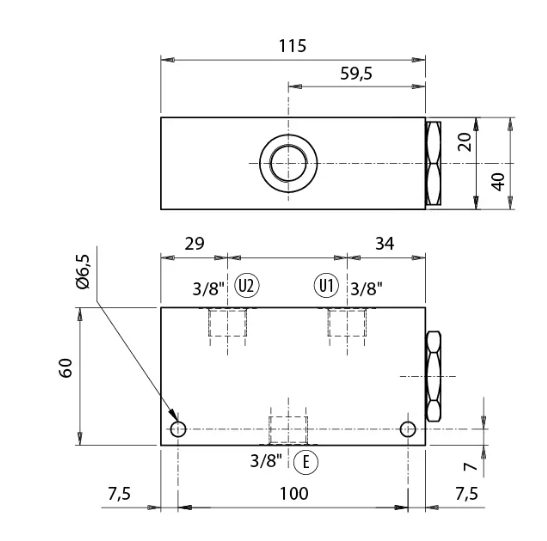

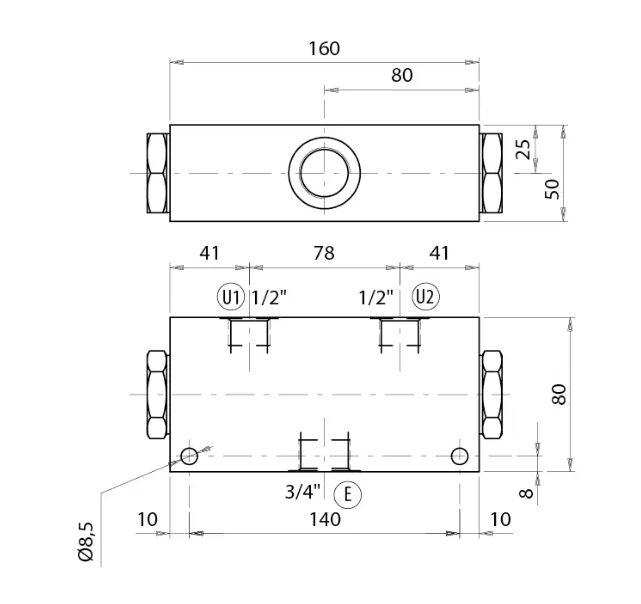

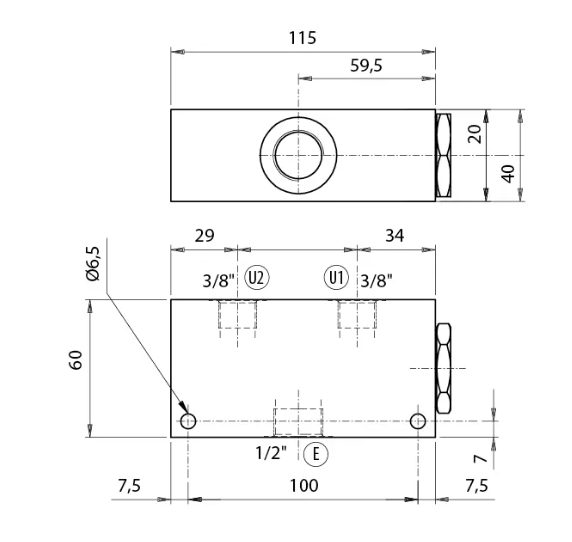

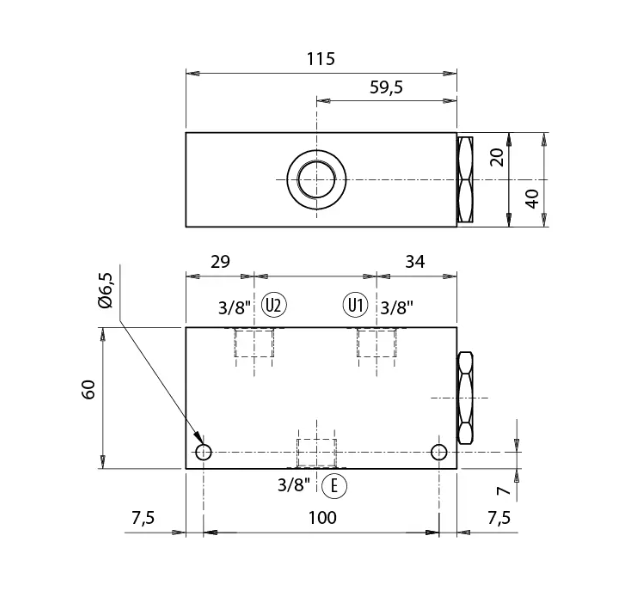

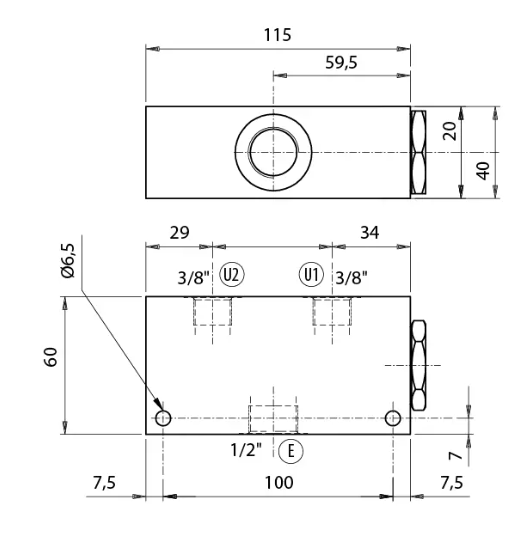

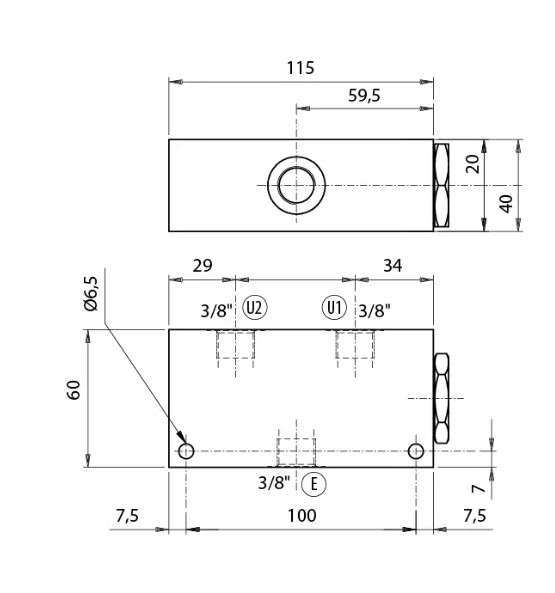

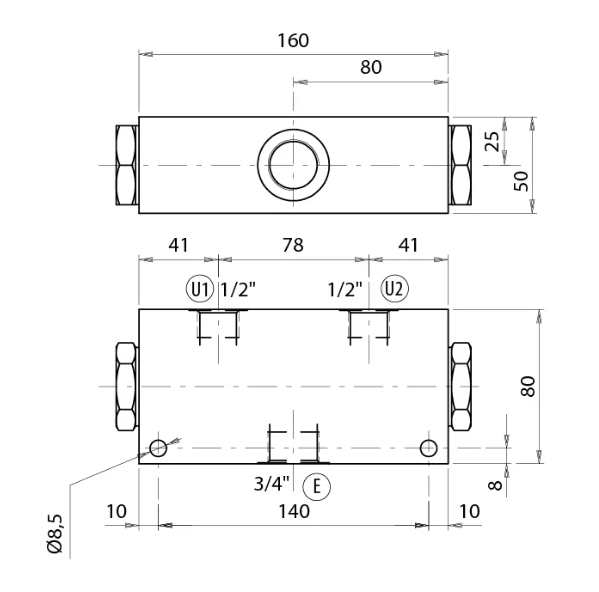

Schemes:
 |

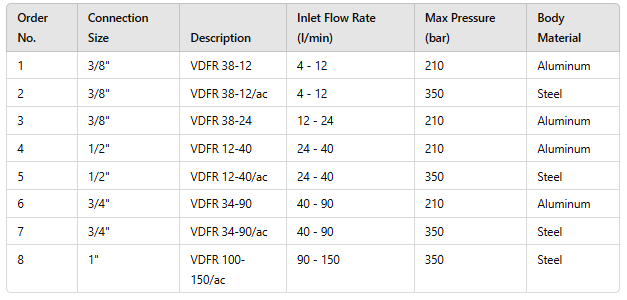

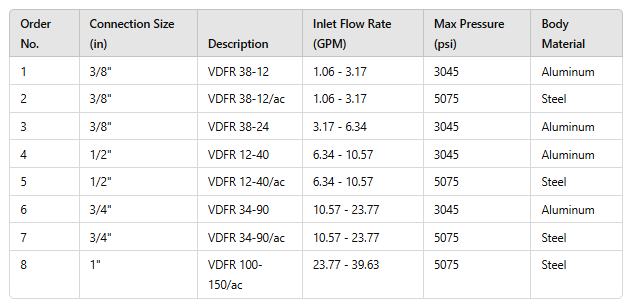

Order 1:
 |
 |
Order 2:
 |
Order 3:
 |
Order 4:
 |
Order 5:
 |
Order 6:
 |
Order 7:
 |
Order 8:
 |
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 44 $ |
| 10 | 8% | 176 $ |
| 20 | 15% | 660 $ |
