Max flow: 50 l/min

Solenoids: 12V

Ambient temperature -30°C...+50°C

Fluid temperature -20°C...+70°C

Nominal flow 50 l/min

Max operating pressure, with/without L 315/210 bar = 3045 psi

Viscosity 15-380 mm²/s Filtration 9 to NAS 1638

Supply voltage  12V DC

Power , W 36;29

Internal threads in the body:

Connection port supply: 1/2''

Connection port return: 1/2''

Connection port sections : 1/2''

Switching frequency, 1/h 15 000

Coil temperature up to 180°C

Duty cycle 100%

Hydraulic liquid -mineral oil based/hydraulic oil

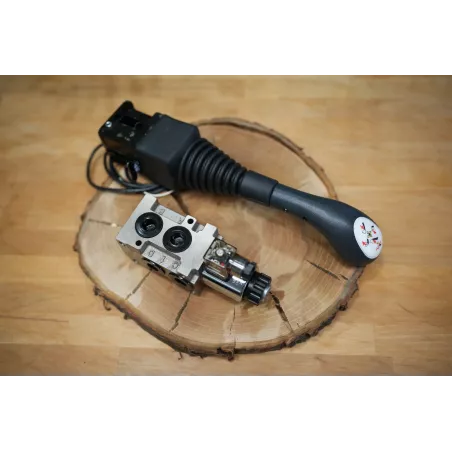

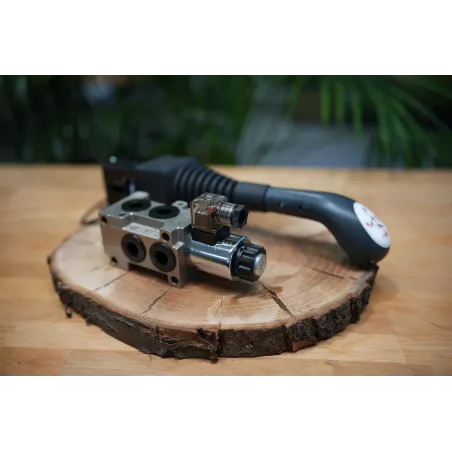

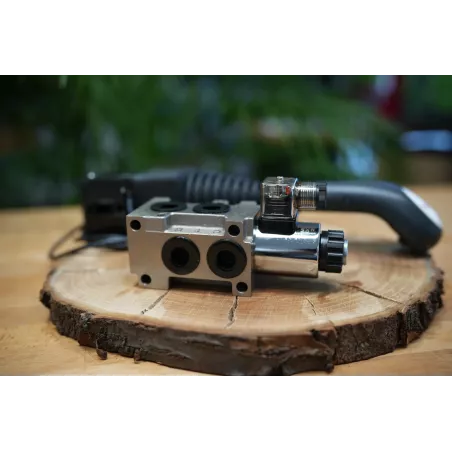

The distributor is suitable for various types of machinery such as: agricultural machines, tractors,

sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers,

industrial machines and other hydraulically operated equipment.

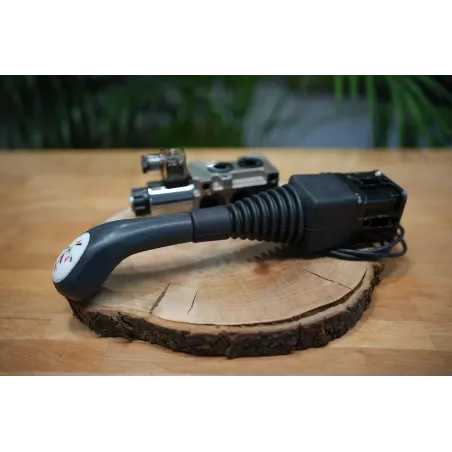

Indemar 6019 single button joystick.

A modern simple to use joystick intended for 2-section hydraulic directional control valves.

It has a robust lightweight casing and an on/off button.

It is widely used in hydraulic systems in agriculture, construction and industry.

Adapted to control three sections in a hydraulic system by means of:

two cables and a button.

It can be used to control the three sections of the frame without any problems:

the frame lift, the tilt leveller and the bale grab or crocodile.

It is designed for various types of machinery such as:

aurochs, loaders, cyclops and forklifts and for other hydraulically controlled equipment.

Ideal for controlling 1, 2, 3, Ursus, Zetor, MF tractors and many others.
