Kronos Jonsered Radio Remote RC 400 6 Functions 6 Pads With Canbus Otto

This set allows for convenient and alternating crane control – both via radio control and joysticks.

The radio system has been configured to support up to 6 standard proportional functions (with the option of choosing a larger transmitter or extension of functions) and 3 ON/OFF functions, with the possibility of further expansion.

Each of the two joysticks allows you to control 3 proportional functions and And an ON/OFF function on a separate panel.

This solution provides the user with high comfort and flexibility in everyday work, regardless of the conditions or preferred method of operation.

Scanreco RC400 Radio Remote Control Systems.

The Scanreco RC 400 G2B remote control system has been especially developed for hydraulically driven mobile cranes and machinery. The system is a digital remote control system based on an extremely advanced microprocessor technology. Years of exhaustive and demanding testing have shown that the remote control system can cope with the roughest of environments.

The system is protected against electromagnetic and radio frequency radiation and can be installed onto all hydraulic valve types (voltage, current pulse width, or protocol steered) found on the market.

In its basic form the remote control system is comprised of a portable control unit with manoeuvre levers for proportional control and switches for ON/OFF functions, a central unit with connection cable for driving proportional electro-hydraulic slide controllers.

Digitally coded control information (lever deflection and switch position) is sent from the portable control unit via radio to the central unit. The portable control unit and central unit translate the magnitude and direction of the manoeuvre lever deflections and switch position.

It can be used for typical proportional functions, e.g.

-Slewing (rotation of crane)

-Main lift

-Jib

-Extension

-Grab open / close

-Rotator

You can also choose a different function as below:

Scanreco Mini with 6 levers

- 6 manipulators

- Stop function according to EN ISO 13849-1 Cat. 3, PL e

- Various toggle switches, buttons and rotary switches

- Frequency bands: 433-434 or 902-928MHz (other frequencies available on request)

- Operating range > 100 m / > ~330 ft.

- Degree of protection: IP65

- Operating temperature: -20°C to +70°C / ~-4°F to +160°F

- Cable control: standard length 10 meters / ~33 ft.

- G2B Receiver PWM 12 or 24 VDC power supply

- Choice of radio or cable control

- 8 bi-directional proportional outputs

- All analog outputs are programmable for final setting of speeds

- 14 digital outputs (where 1 is combined input/output) and 4 digital inputs (where 1 is combined input/output)

- A DV output to control the dump valve

- Radio communication in the ISM band using frequency hopping technology

- Manual mode available to bypass the radio system, providing only the DV output and allowing manual control via the hydraulic manifold (where available).

- Programmable logic with block, soak, decelerate, ramp functions and much more

- Please note that cable sets or connection plug sets are NOT included in the scope of delivery and must be ordered separately if required.

- Dimensions: (W x H x D): 350 x 160 x 190 mm / ~13.78 x 6.30 x 7.48 inches (without color display)

G3 Receiver

G3 Receiver

- CANopen interface (other protocols on

request).

- Supply voltage: 12/24 VDC.

- Operational temperature: –25°C to +70°C/ ~–15°F to +160°F.

- Cable control: Standard length 10 meters/ ~33 ft.

- 2 dump valve outputs. » 2 safety loops. » Stop function in accordance with EN ISO

13849-1 cat. 3, PL d.

- Frequency bands: 433–434, 902–928

MHz & 2.4 GHz (other frequencies available

on request).

- Two-way communication. » Connection cables with M12 connectors:3 meters / ~10 ft.

- Dimensions (WxHxD): 110x140x157 mm/~4.33x5.51x6.18 in (height incl. antenna).

- Weight: 1.2 kg / ~2.6 lbs.

- Protection category: IP 67.

Canbus Otto Joysticks

Technical data :

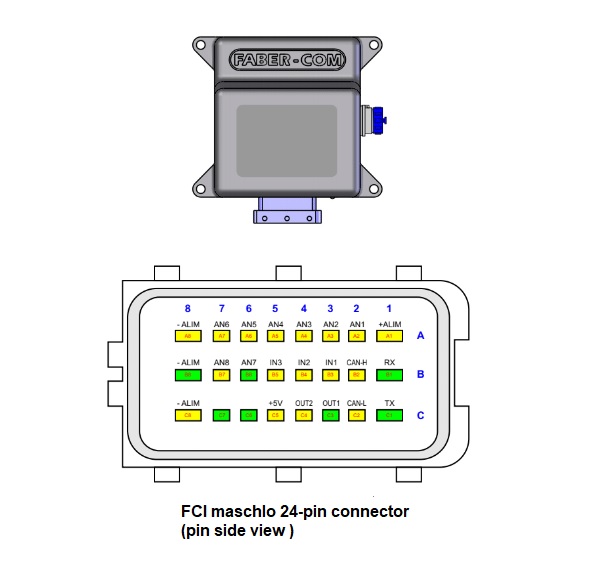

CANBus card for analog/digital inputs

DESCRIPTION:

- It's an electronic board with CANBus interface to simulate 2 JC joysticks with 2 Otto joystick and push button dashboard.

- The transmission has course immediately after the turning on of the electronic card.

FEATURES:

- Supply voltage from 10 to 30 Vdc

- CAN V2.0B communication bus

- 120 Ohm inner terminator not present in this version

- 2 diagnostic LEDs (red and green)

- Firmware updatable by integrated serial port

SIGNALS:

- Red LED flashing one time: short circuit error on the +5V stabilized output

- Red LED flashing two times: one of the analog inputs has been found not at rest position during the turning on, this input is blocked until a reset

- Green LED On: the electronic card is working correctly

- The green LED flashes one time every time an input (analog or on/off) change status

Technical Specifications:

-Power Supply Voltage : 10Vdc÷30Vdc (inner 5x20 8A fuse type F8A)

-Current absorpion : 300mA + load outputs (max 7.5A)

-Working Temperature Range : -20 ÷+ 70 C

-Supply for external potentiometers: +5V - max current 50mA

-PWM minimum current range : from 100 to 2500mA

-PWM maximum current range: from 100 to 2500mA

-PWM frequency : 50-60-70-85-100-125-150-200-250-300 Hz

-Analog inputs impedance: 11 KOhm towards 2.5V

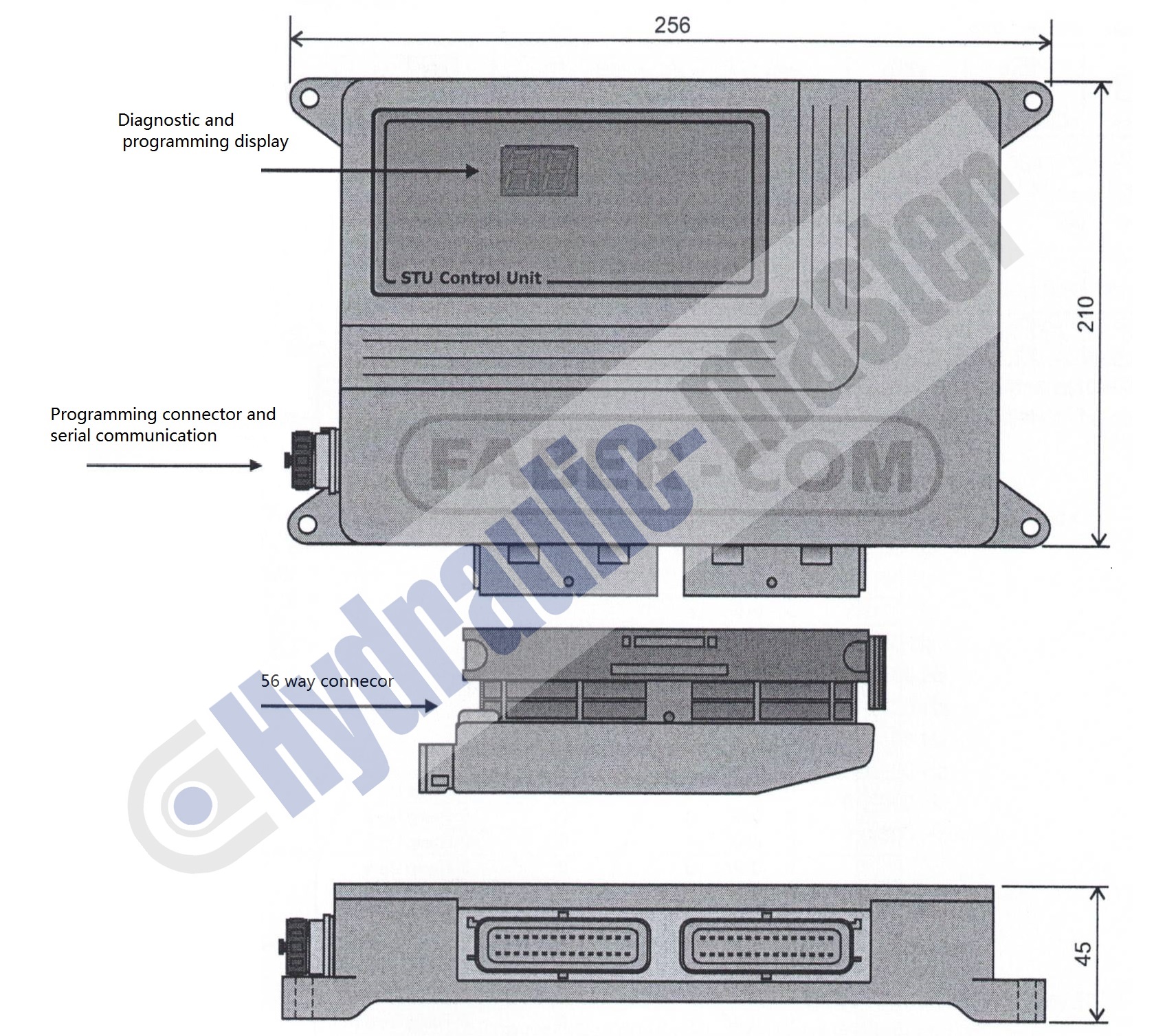

-Overlall dimensions with connector mounted: 256x210x45mm

-Drill interasis : 242x142mm (n. 4 holes of 6mm diameter)

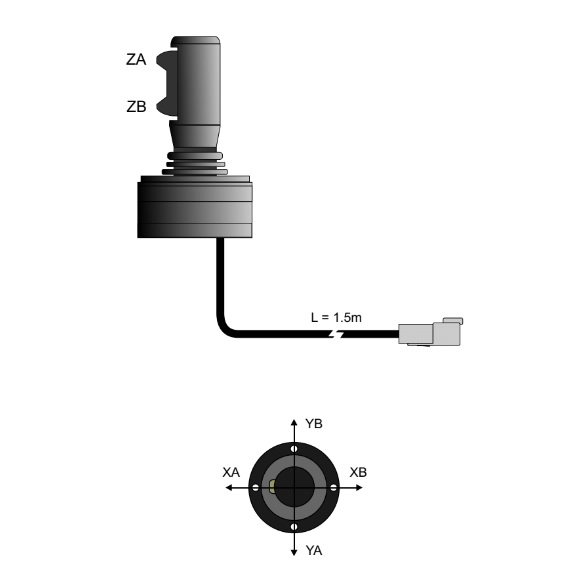

NOTE:

to have the cable L = 1.5m it is necessary to

- make the joystick / cable connections 7x0.75mmq by removing the

original connector

- put the corrugated sheath and fix it to the bottom of the joystick (see photo)

- connect the 7x0.75 cable to the Deutsch 6-pin female connector

to male contacts

The kit works with a lot of application. For sure pleae contact with us.
