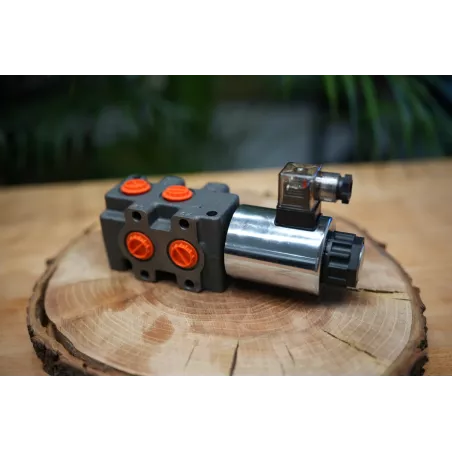

SOLENOID DIRECTIONAL CONTROL VALVE 12 V 90 L/MIN 24GPM DIVIDER 6/2 FOR 3RD FUNCTION
175 $
Product ID: 74
Max flow: 90 l/min
Solenoids: 12 V
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
SOLENOID DIRECTIONAL CONTROL VALVE 12 V 90 L/MIN 24GPM DIVIDER 6/2 FOR 3RD FUNCTION
175 $
Max flow: 90 l/min
Solenoids: 12 V
Informations
Max flow: 90 l/min
Solenoids: 12 V
Ambient temperature -40°C...+95°C
Fluid temperature -20°C...+70°C
Max operating pressure 280 bar = 4061 psi
Viscosity 10-400 mm²/s
Filtration 18/14 acc. to ISO4406
Supply voltage , 12 VDC; 24 VDC
Power 65W
Internal threads in the body:
Connection port supply: 1/2''
Connection port return: 1/2''
Connection port sections : 1/2''
Switching frequency, 1/h 15 000
Duty cycle 100%
Spool leakage-100bar = 1450 psi and 25 mm²/s
Viscosity 2.0 cm³/min.
Hydraulic liquid -mineral oil based/hydraulic oil
The distributor is suitable for various types of machinery such as: agricultural machines, tractors,
sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers,
industrial machines and other hydraulically operated equipment.
