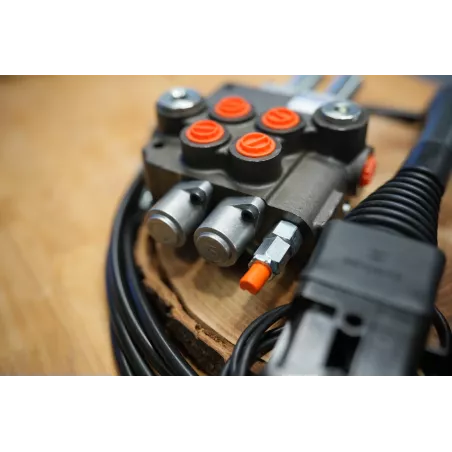

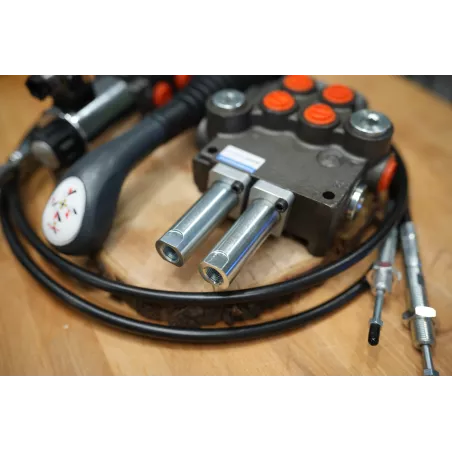

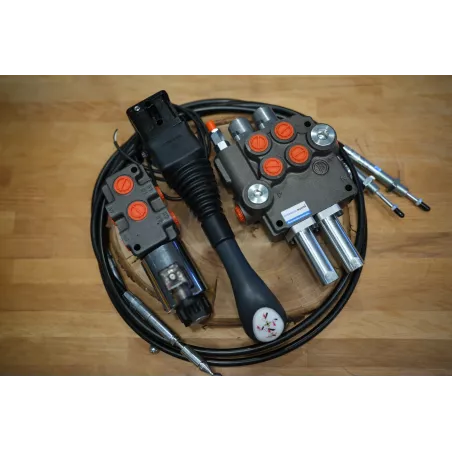

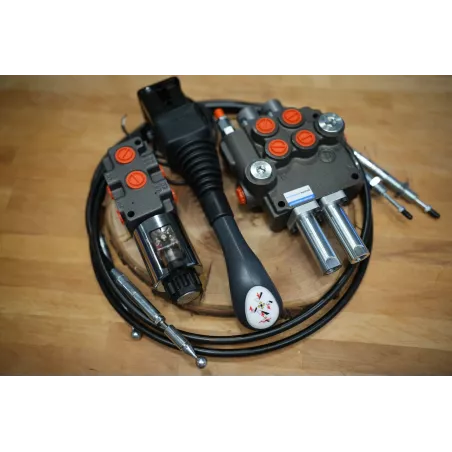

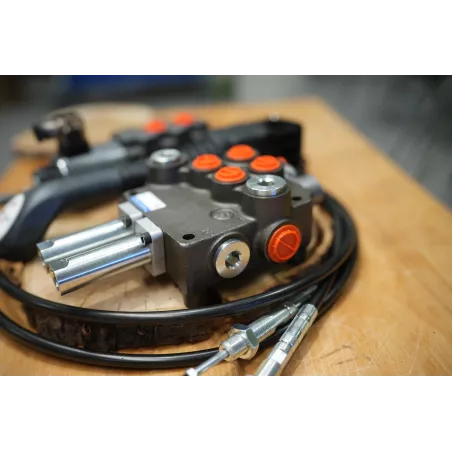

Hydraulic valve kit 3 functions double acting tractor loader 3rd function joystick 21 GPM 80 l/min

Both sliders on the sections three-position on the spring, that is, they return to the neutral position by themselves.

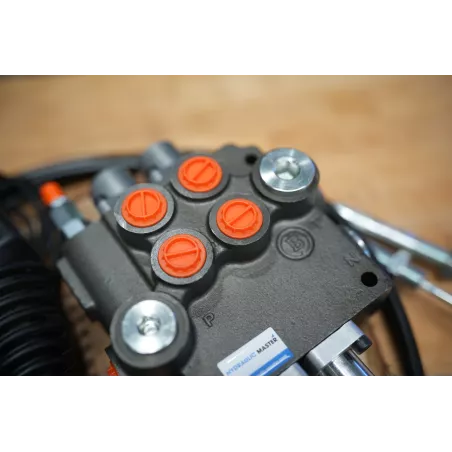

Internal threads in the body:

Connection port supply: 1/2''

Connection port return : 3/4''

Section connection ports : 1/2''

Cable connections:

Tube internal thread: M16x1.5

Internal threads of the slide end: M6x1.5

Pressure range:

Maximum supply pressure: 250Bar (3625,94 psi)

Maximum pressure on return: 50Bar (725,19 psi)

Maximum pressure on sections: 300Bar (4351,13 psi)

The opening pressure of the bypass valve increases proportionally with increasing flow rate:

180 bar (2610,68 psi) at 20 l/min (5,28 gallon/min)

190 bar (2755,72 psi) at 40 l/min (10,57 gallon/min)

200 bar (2900,75 psi) at 60 l/min (15,85 gallon/min)

210 bar (3045,79 psi) at 80 l/min (21,13 gallon/min)

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Recommended hydraulic oil on mineral oil basis, e.g. HL 32 or HL 46

Recommended oil filtration of 10 - 15 µ

Open centre system (pump-to-tank flow)

Modification / Spools with 1 to 7

HIGH QUALITY Made in EU

Dimensions:

The hydraulic valve is widely used in hydraulic systems in construction, industry and agriculture.

The valve is adapted to various types of machines such as:

sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, agricultural machines, tractors, industrial machines and other hydraulically operated equipment.

Can be used with MF, CASE, Caterpillar, Komatsu, Volvo, JCB, Liebherr, Hyundai, Bobcat, Kawasaki, John Deere..... and many more.

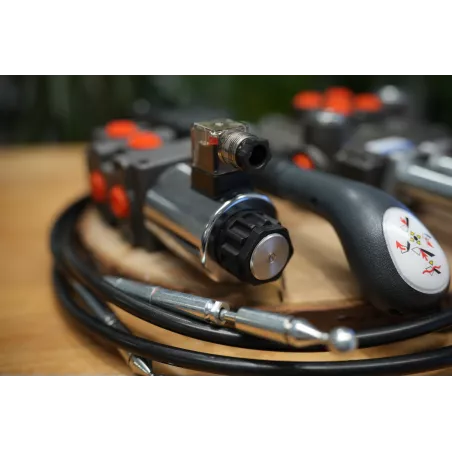

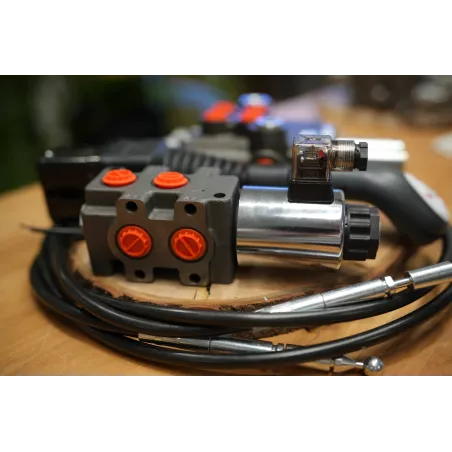

Solenoid directional control valve :

Max flow: 90 l/min

Ambient temperature -40C...+95C

Fluid temperature -20C...+70C

Max operating pressure 280 bar = 4061psi

Viscosity 10-400 mm2/s

Filtration 18/14 acc. to ISO4406

Supply voltage , 12 VDC; 24 VDC

Power , W 65

Internal threads in the body:

Connection port supply: 1/2''

Connection port return: 1/2''

Connection port sections : 1/2''

Switching frequency, 1/h 15 000

Duty cycle 100%

Spool leakage-100bar = 1450psi and 25mm2/s

Viscosity 2.0 cm3/min

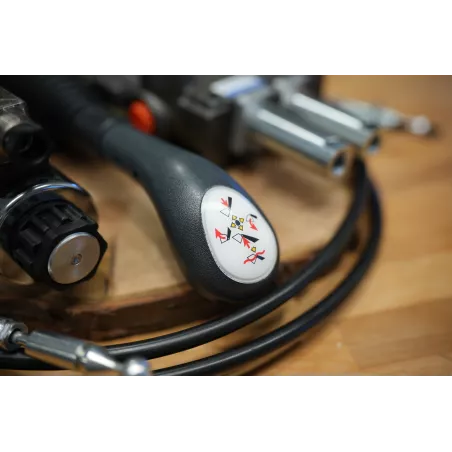

Joystick with 1 push-button:

Max. cable stroke: 14+14 mm

Lever ratio: 6,5:1

Cross-type movement

Cable type: standard

Lateral safety lock

Operating temperature: -30° ÷ +80°C

Lubrication: Molikote g72

Scheme:

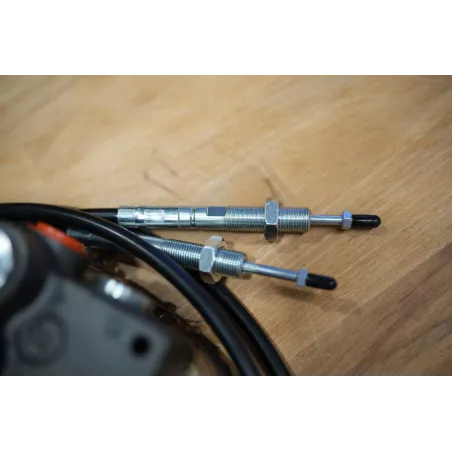

Cable for Joystick:

Max. cable stroke: 30±2 mm

Disconnection load of wire rope terminal: 3000 N

Disconnection load of conduit terminal: 3000 N

Min. bending radius: 200 mm

Operating temperature: -30° ÷ +80° C

IB-431216

Choice of metal or plastic ball.

Scheme:

We also have other line lengths available if you need it. Please let us know.

1.0m - 39,37''

1.5m -59,06''

2.5m - 98.4''

3.0m - 118,11''
