2 Joysticks + Radio Control Scanreco Maxi with Pads for Komatsu Forest Tigercat
6,900 $
Product ID: 1640
Scanreco G3 Canbus system equipped with two JC Joysticks 12/24V.
This kit is configured for the most popular machine settings, supporting up to 8 standard forest crane functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc. The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.
The kit is designed for plug-and-play convenience. We handle everything from the plugs to the software configuration.
We provide technical support and are readily available via email, whatsup and telephone.
After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information

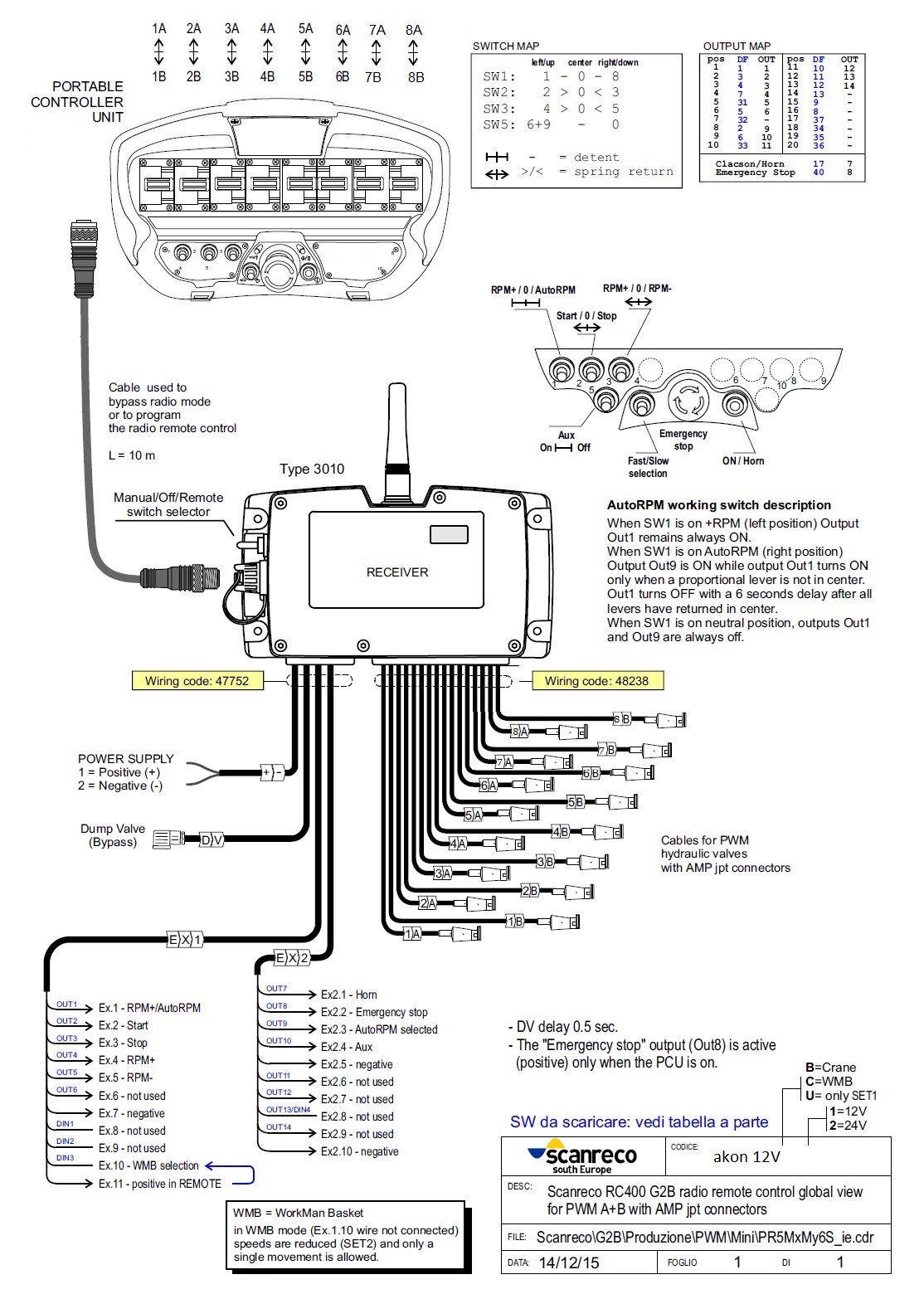

Scanreco RC400 Radio Remote Control Systems.
It can be used for four typical proportional functions, e.g.
-Slewing (rotation of crane)
-Main lift
-Jib
-Extension
-Grab open / close
-Rotator
You can also choose a different function as below:
 |
Scanreco G3 Canbus with JP Joysticks
|
|
Remote Radio Control Scanreco: - Operator feedback by: |
 |
 |
|
Technical Specifications: Power Supply Voltage : 10Vdc -30Vdc Max current absorpion : 200mA ON/OFF output load Wroking Temperature Range : -40°C + 70°C Thumbwhell and analog input signals : 0.5 4,5 V Abakig Uboyts Unoedabce: 11kOhm towards 2.5V Max ON/OFF autput current 700mA Push button power supply voltage: 5 VVdc stabilized, max 30 mA, schort circuit protected Infress Protection Rating : IP65 Connections: Molex minifit Jr 4p. (CAN and supply) + 10p. (aux inputs) |
Technical Specifications: Power Supply Voltage : 10Vdc÷30Vdc (inner 5x20 8A fuse type F8A) Current absorpion : 300mA + load outputs (max 7.5A) Wroking Temperature Range : -20 ÷+ 70 C Supply for external poterntiometers: +5V - max current 50mA PWM minimum current range : from 100 to 2500 mA PweM maximum current range: from 100 to 2500mA PWM frequency : 50-60-70-85-100-125-150-200-250-300 Hz Analog inputs impedance: 11 KOhm towards 2.5V Overlall dimensions with connector mounted: 256x210x45mm Drill interasis : 242x142mm (n. 4 holes of 6mm diameter) |
The kit works with a lot of application. For sure please contact with us.
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 1,380 $ |
| 10 | 8% | 5,520 $ |
| 20 | 15% | 20,700 $ |
Do you need help?
Looking for a non-standard product?
We are able to prepare a customized solution especially for you.
