Control Panel With 3 Movable Joysticks - 4 Sides With Cables 12-24V

$840

Voltage: 12V/ 24V

For 6 Functions hydraulic valve

Informations

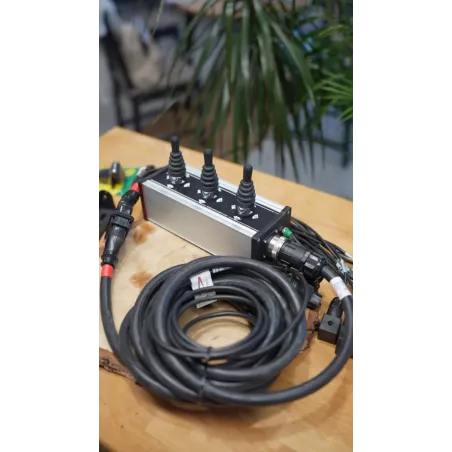

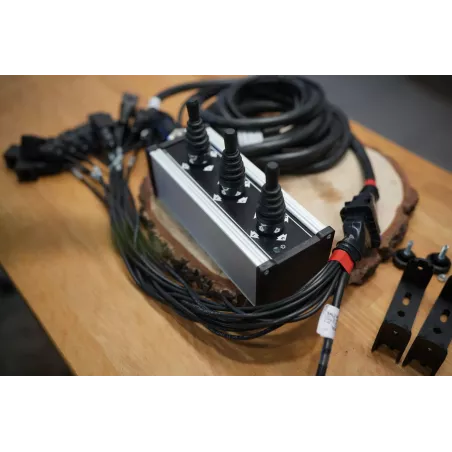

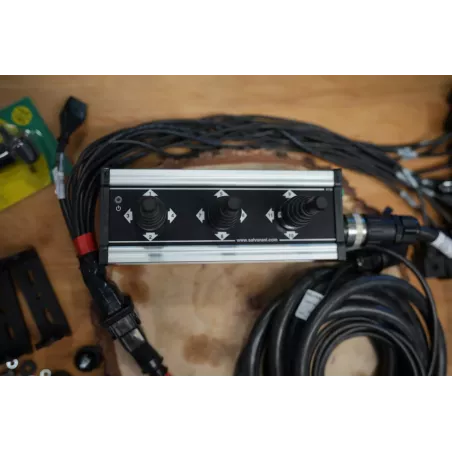

Control panel :

The enclosure is complete and ready to use. It has all the necessary electrical connections and outputs.

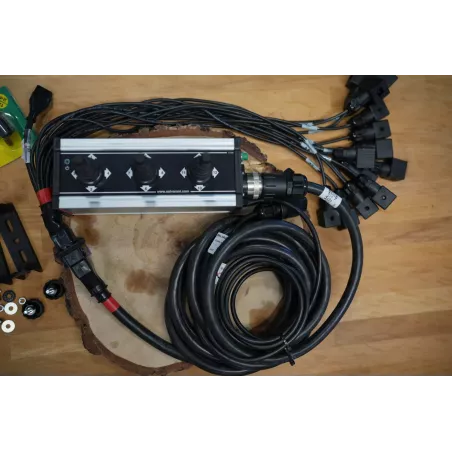

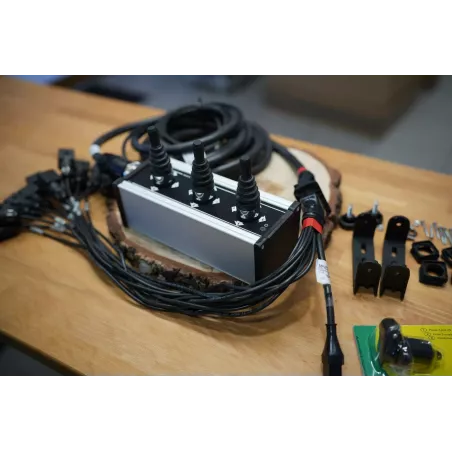

Equipped with three joysticks, a safety switch, two power sockets, an output for a distributor and all necessary electronics and fuses.

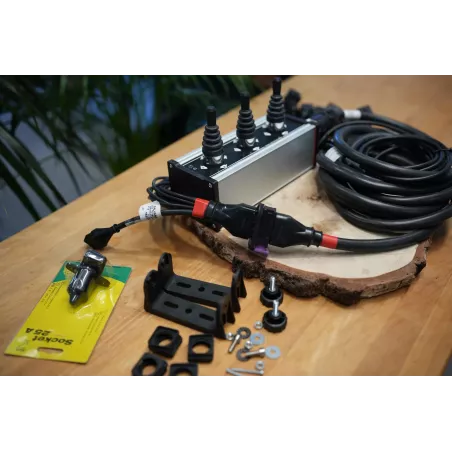

Additional accessories included:

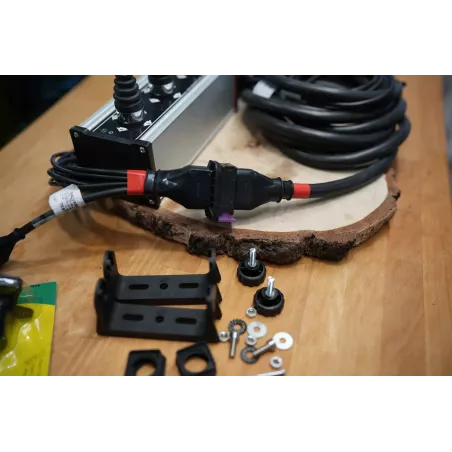

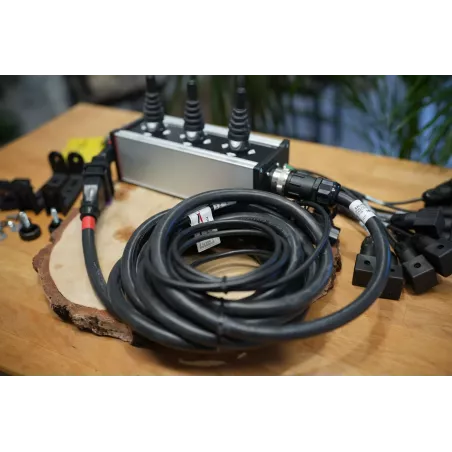

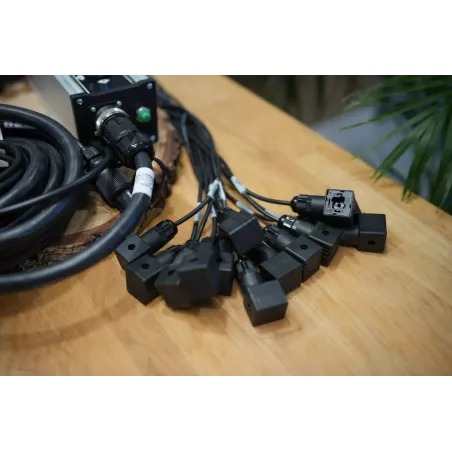

power cable, socket and mounting bracket, 5 m cable, and all necessary plugs.

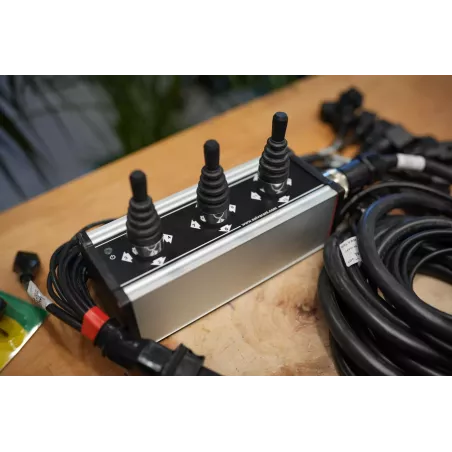

Each joystick has 4 unstable (working) positions and one stable (neutral centre position).

Monostable design where the joystick lever returns to the centre - neutral position by itself.

Features rubber sealing cover for dust, water and oil resistance.

Box dimensions:

23,4cm x 9,6cm x 8,1cm (+7,7 cm joystick)

9,21 '' x 3,78'' x 3,19 '' (+ 3,03 '' joystick)

Lever material: Steel

Housing material: aluminium

The way each joystick works: Monostable (on spring)

Operating temperature: od -25 do 55°C

Leakage class: IP54

Certificates: CE

Recommended supply current: 10A - 12V DC

(It is possible to power the panel with 24V DC, but in this case the power LED will not be lit).


Construction:
