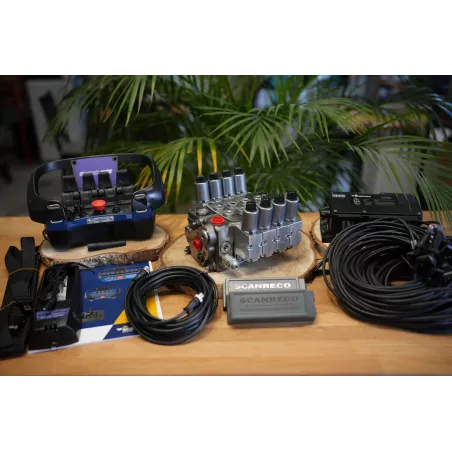

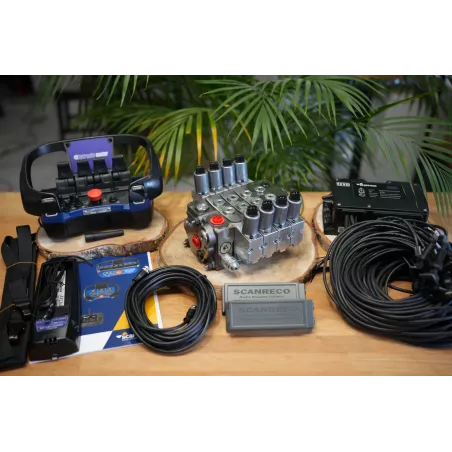

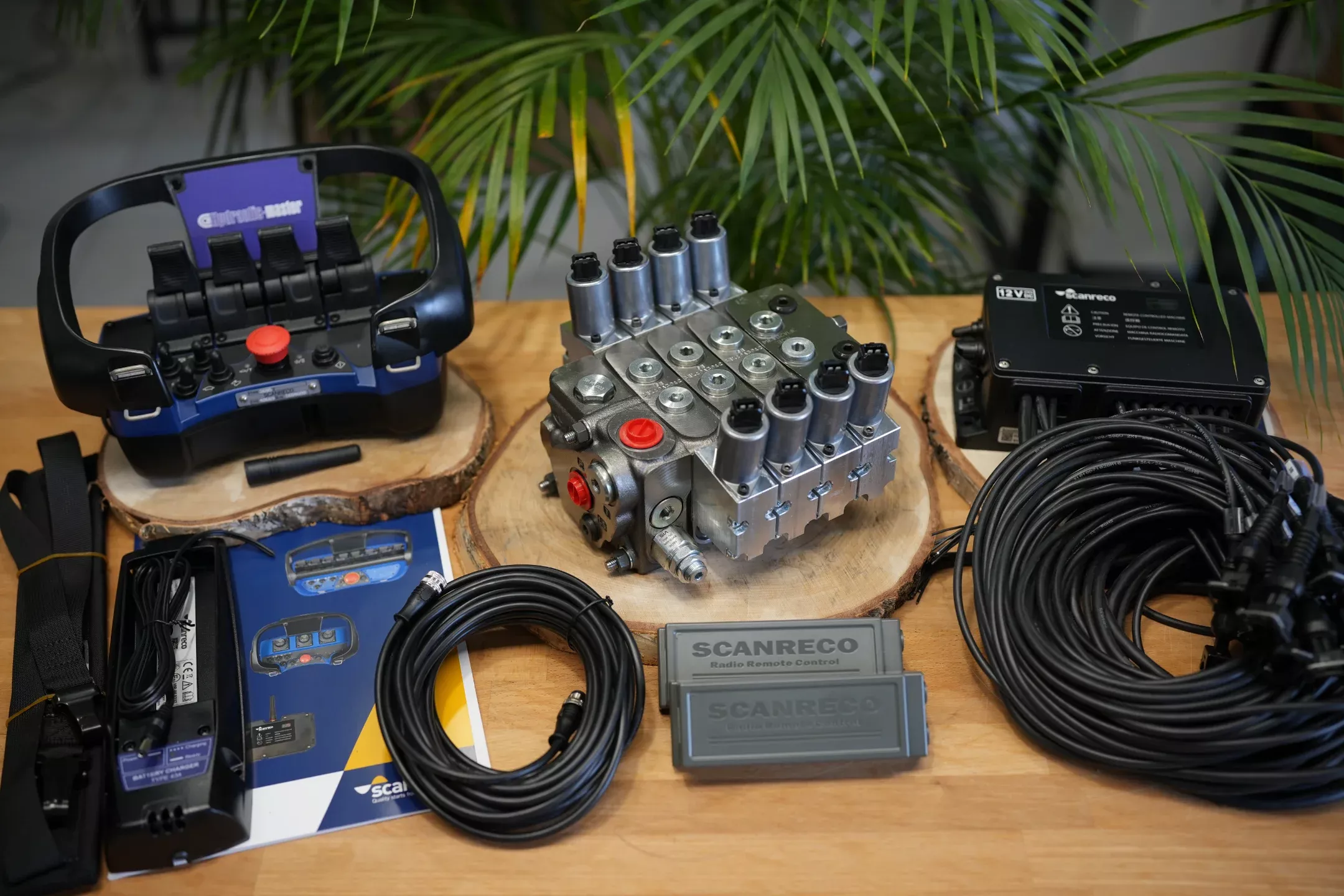

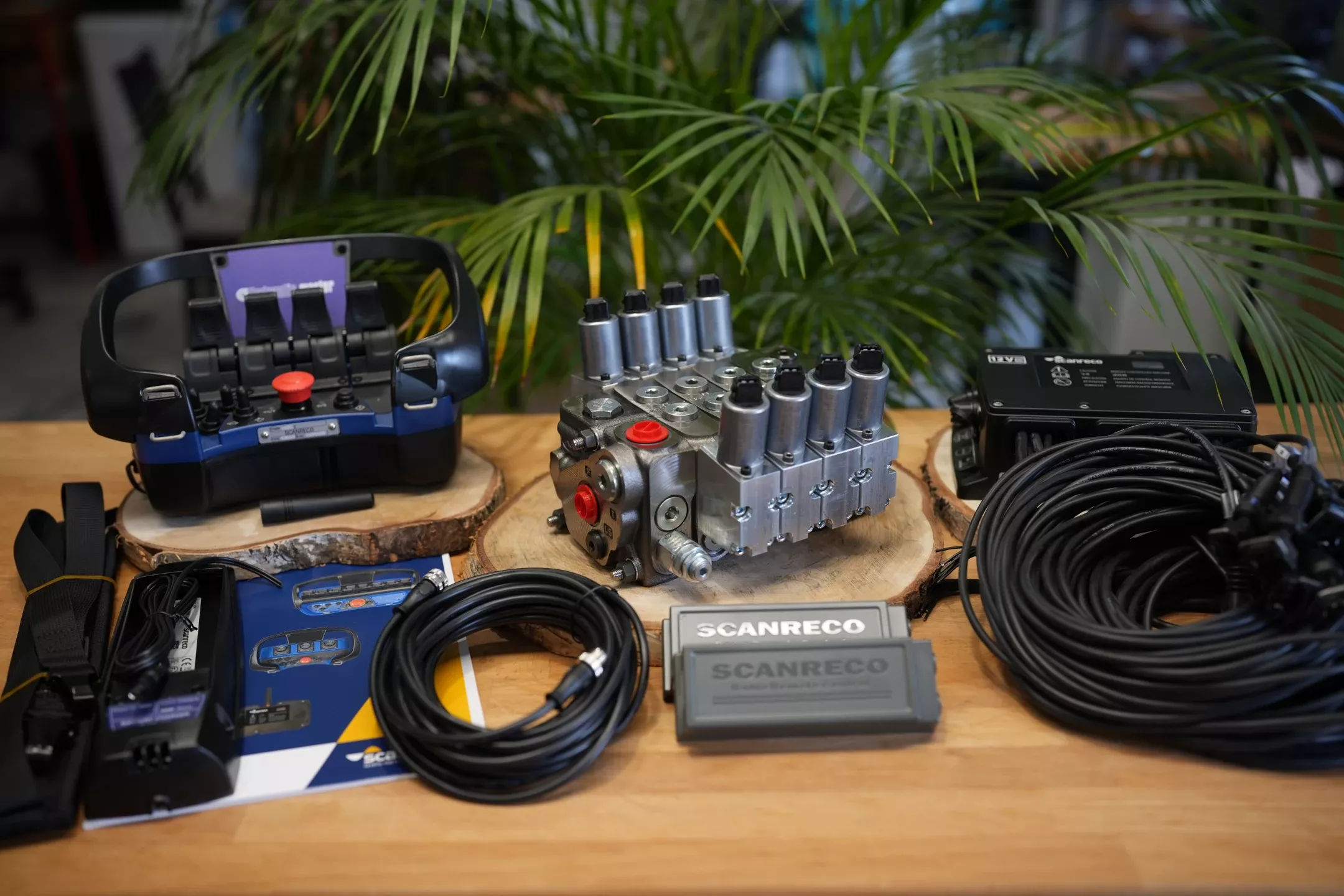

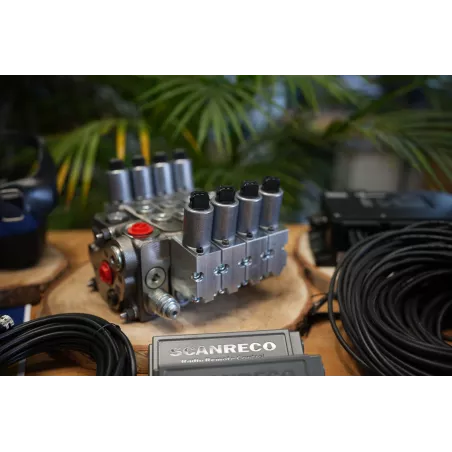

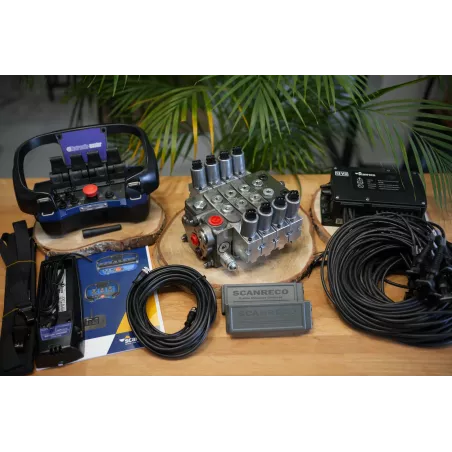

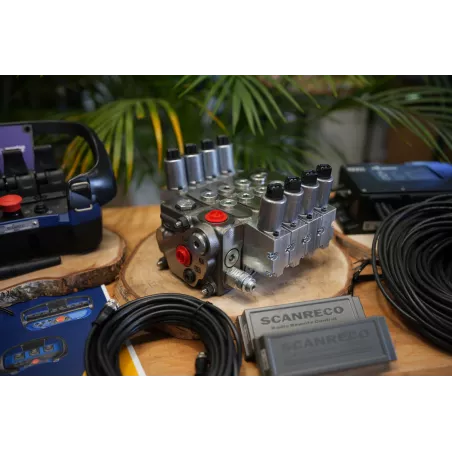

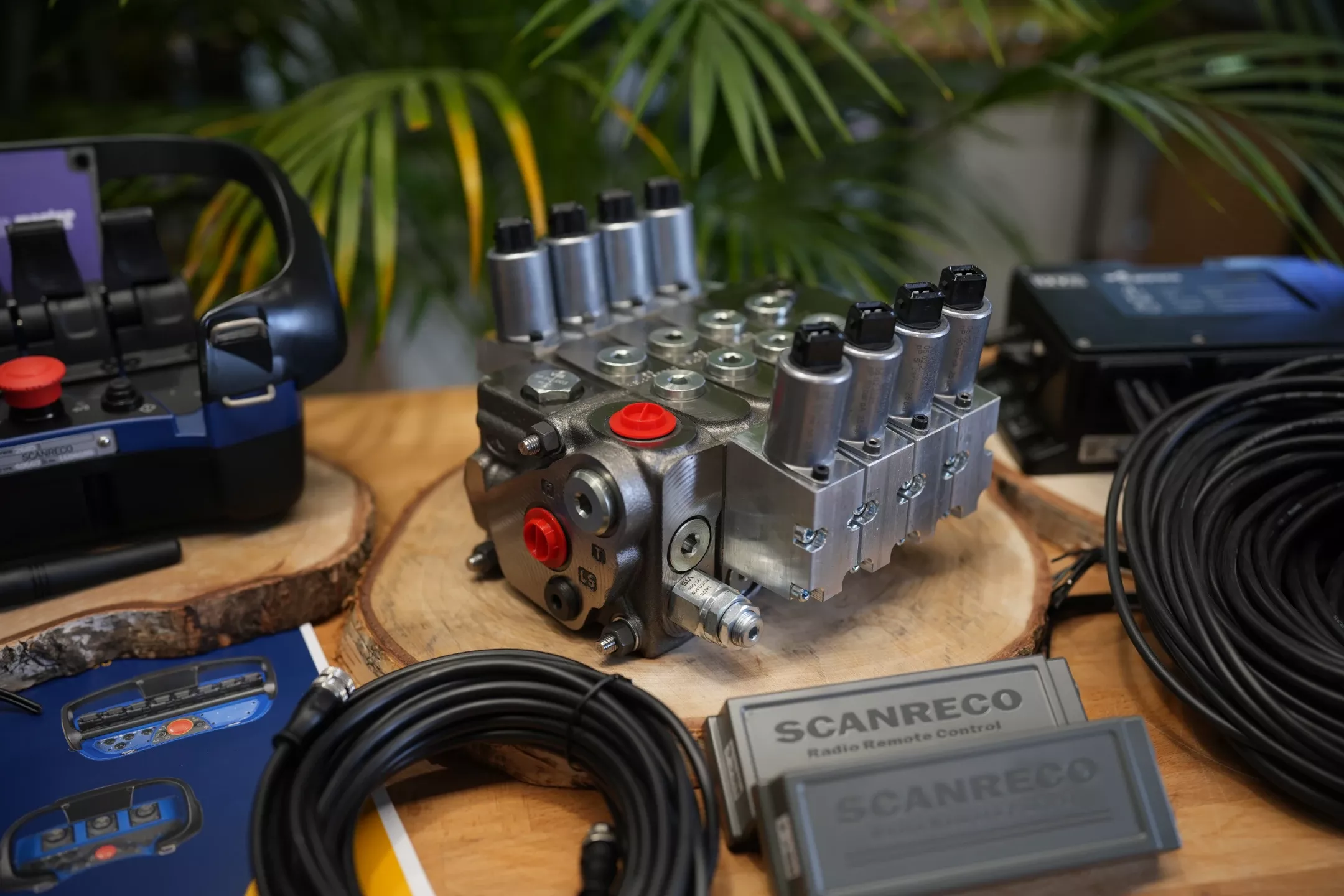

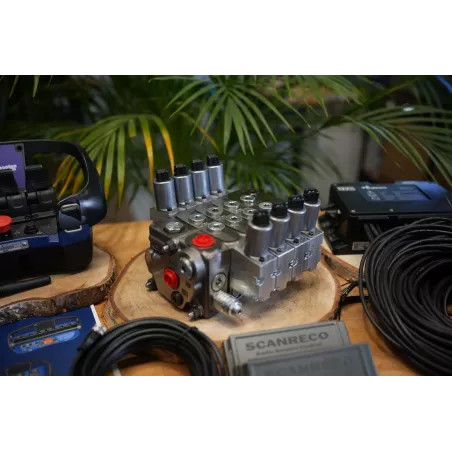

Electric Valve Walvoil DPX050 4 Sections + Wireless Remote Control Scanreco Mini G2B
5,250 $
Product ID: 996
Hydraulic Valve Walvoil DPX 050 12/24V with 4 Proportional Sections, Open Center. The valve includes a post-compensation section.
Scanreco G2B Mini 4 pads 12/24V.
This kit is configured for the most popular machine settings, supporting up to 4 standard crane functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc. The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.
The kit is designed for plug-and-play convenience. We handle everything from the plugs to the software configuration.
We provide technical support and are readily available via email, whatsup and telephone.
Feel free to contact us at [email protected] or [email protected] for any inquiries or assistance.
After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Electric Valve Walvoil DPX050 4 Sections + Wireless Remote Control Scanreco Mini G2B
5,250 $
Hydraulic Valve Walvoil DPX 050 12/24V with 4 Proportional Sections, Open Center. The valve includes a post-compensation section.
Scanreco G2B Mini 4 pads 12/24V.
This kit is configured for the most popular machine settings, supporting up to 4 standard crane functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc. The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.
The kit is designed for plug-and-play convenience. We handle everything from the plugs to the software configuration.
We provide technical support and are readily available via email, whatsup and telephone.
Feel free to contact us at [email protected] or [email protected] for any inquiries or assistance.
After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.
Informations
Scanreco RC400 Radio Remote Control Systems.
The Scanreco RC 400 G2B remote control system has been especially developed for
hydraulically driven mobile cranes and machinery. The system is a digital remote
control system based on an extremely advanced microprocessor technology. Years of
exhaustive and demanding testing have shown that the remote control system can
cope with the roughest of environments.
The system is protected against electromagnetic and radio frequency radiation and
can be installed onto all hydraulic valve types (voltage, current pulse width, or
protocol steered) found on the market.
In its basic form the remote control system is comprised of a portable control unit
with manoeuvre levers for proportional control and switches for ON/OFF functions, a
central unit with connection cable for driving proportional electro-hydraulic slide
controllers.
Digitally coded control information (lever deflection and switch position) is sent from
the portable control unit via radio to the central unit. The portable control unit and
central unit translate the magnitude and direction of the manoeuvre lever deflections
and switch position.
It can be used for four typical proportional functions, e.g.
-Slewing (rotation of crane)
-Main lift
-Jib
-Extension
-Grab open / close
-Rotator
You can also choose a different function as below:
 |

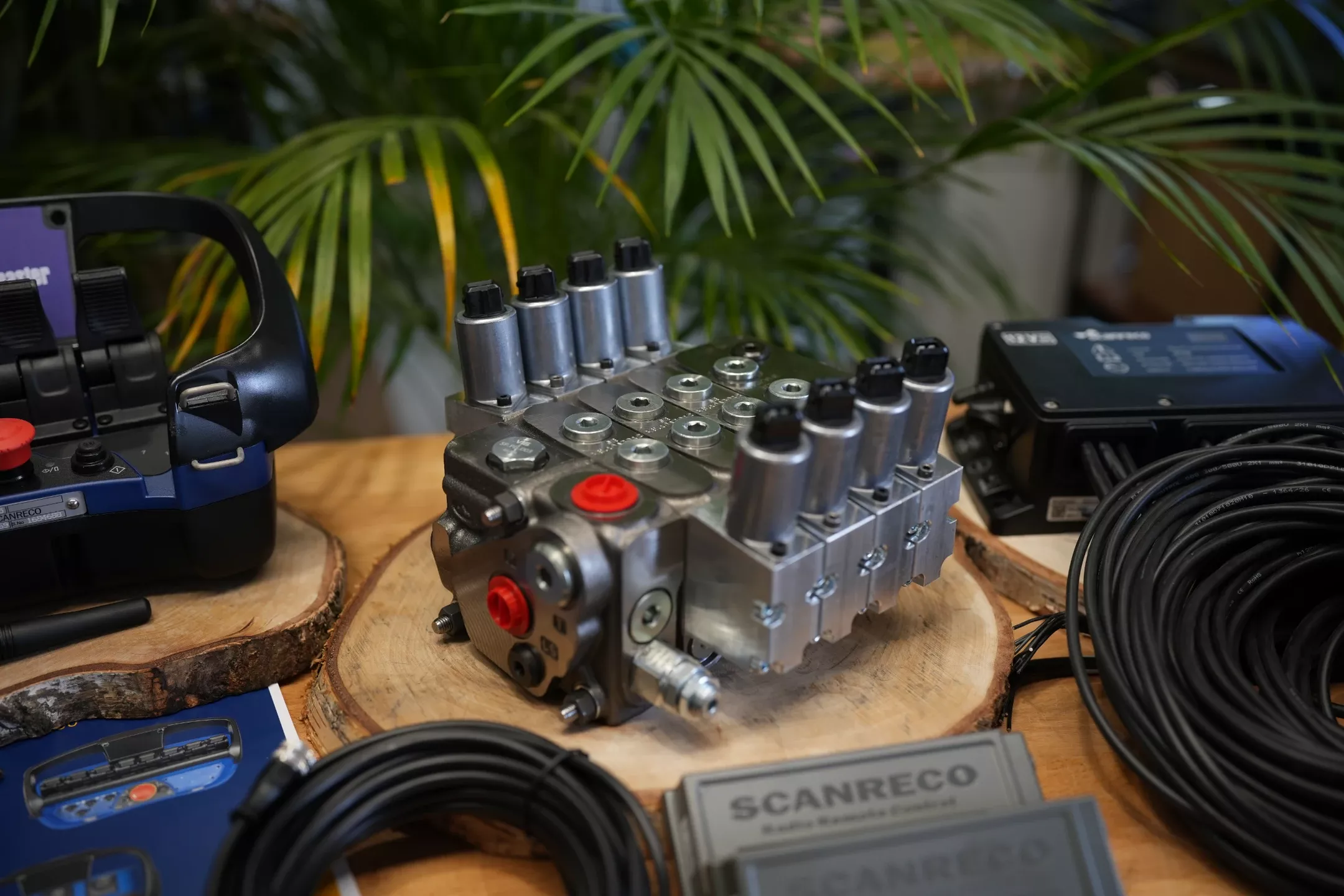

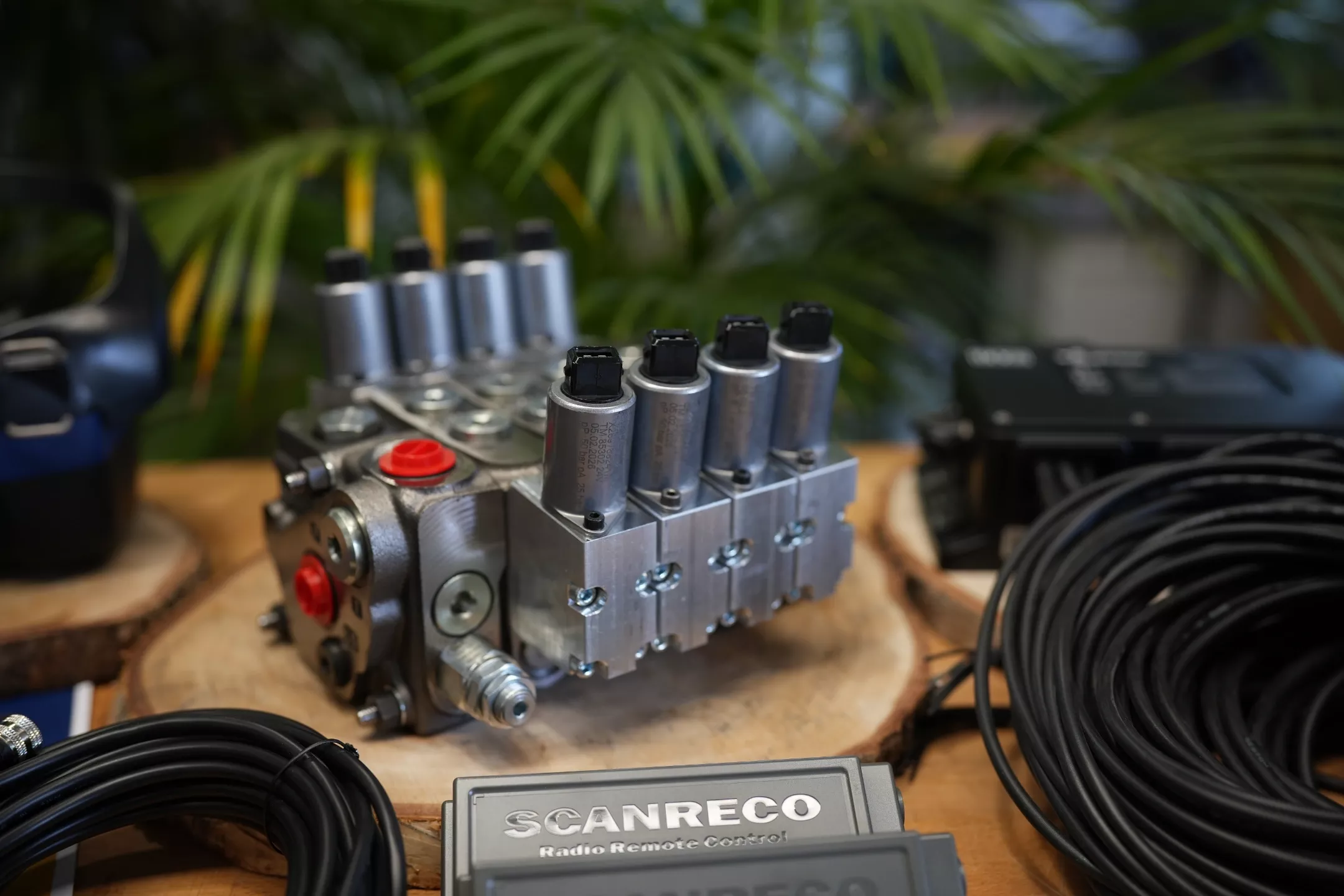

Hydraulic, sectional valve Walvoil DPX 050 with compensation, full proportional.
Directional valve of the DPX series and the most versatile and complete. Highly configurable and versatile for applications such as Miniexcavators, Aerial platform, Truck Mounted Cranes, Telehandlers, Agricultural and Forestry machines.
- Valve model for high pressure applications (HP), inspheroidal graphite cast iron
- Optional spool position sensors
- Valve configurations with high flow sections (HF)
- Special inlet sections designed for steering applications
- Synergy with the Walvoil electronic systems range
- Inlet sections with or without by-pass valve
- Manual, hydraulic and proportional electro-hydraulic controls
Working conditions:
Technical specifications of default configuration:
Inlet section: 32GPM 120l/min - Pmax 300 bar 4351psi Power supply port: 1/2" BPS, tank return port: 1/2" BPS
1st Slewing - Horizontal movement of the crane 50 L/min 13GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors
2nd Main lift 50 L/min 13GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors
3rd Jib - Horizontal bean extending from the crane 50 L/min 13GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors
4th Rotator 50 L/min 13GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors
Outlet section: with the possibility of combining valves, with bleed valve (LS relief), with pressure reducing valve. Control connection "V" and drainage connection "L" closed. Side connections "T1", "P1", "LS1" closed. DBV fixed and sealed to 175 bar at 90L/min.

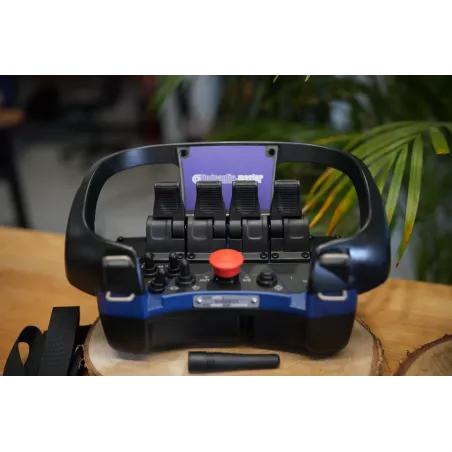

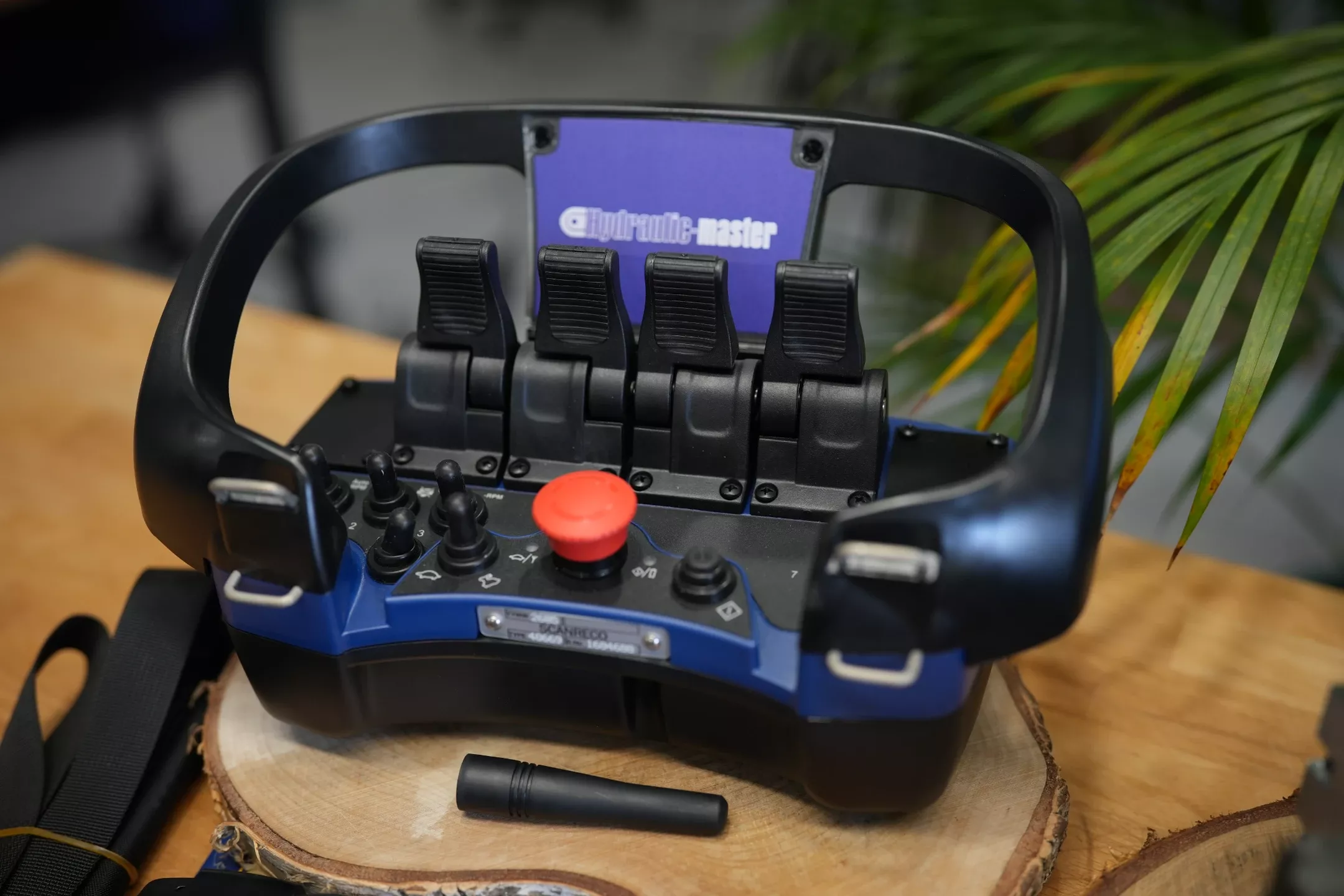

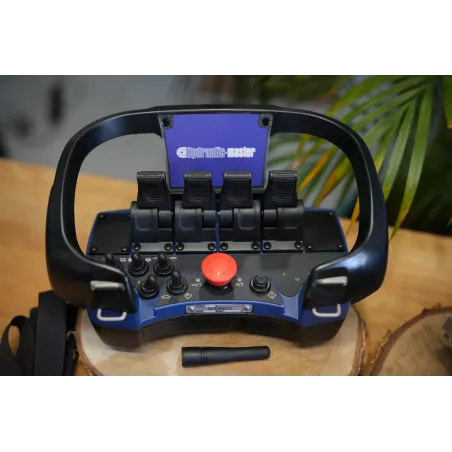

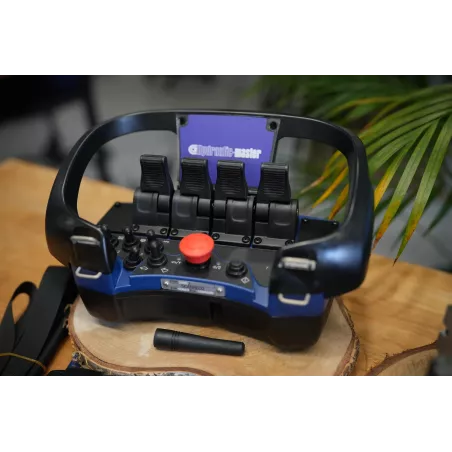

Scanreco G2B Mini with 4 levers
- 1-4 linear levers
- Stop function according to EN ISO 13849-1 Cat. 3, PL e
- Various toggle switches, buttons and rotary switches
- Frequency bands: 433-434 or 902-928MHz (other frequencies available on request)
- Operating range > 100 m / > ~330 ft.
- Degree of protection: IP65
- Operating temperature: -20°C to +70°C / ~-4°F to +160°F

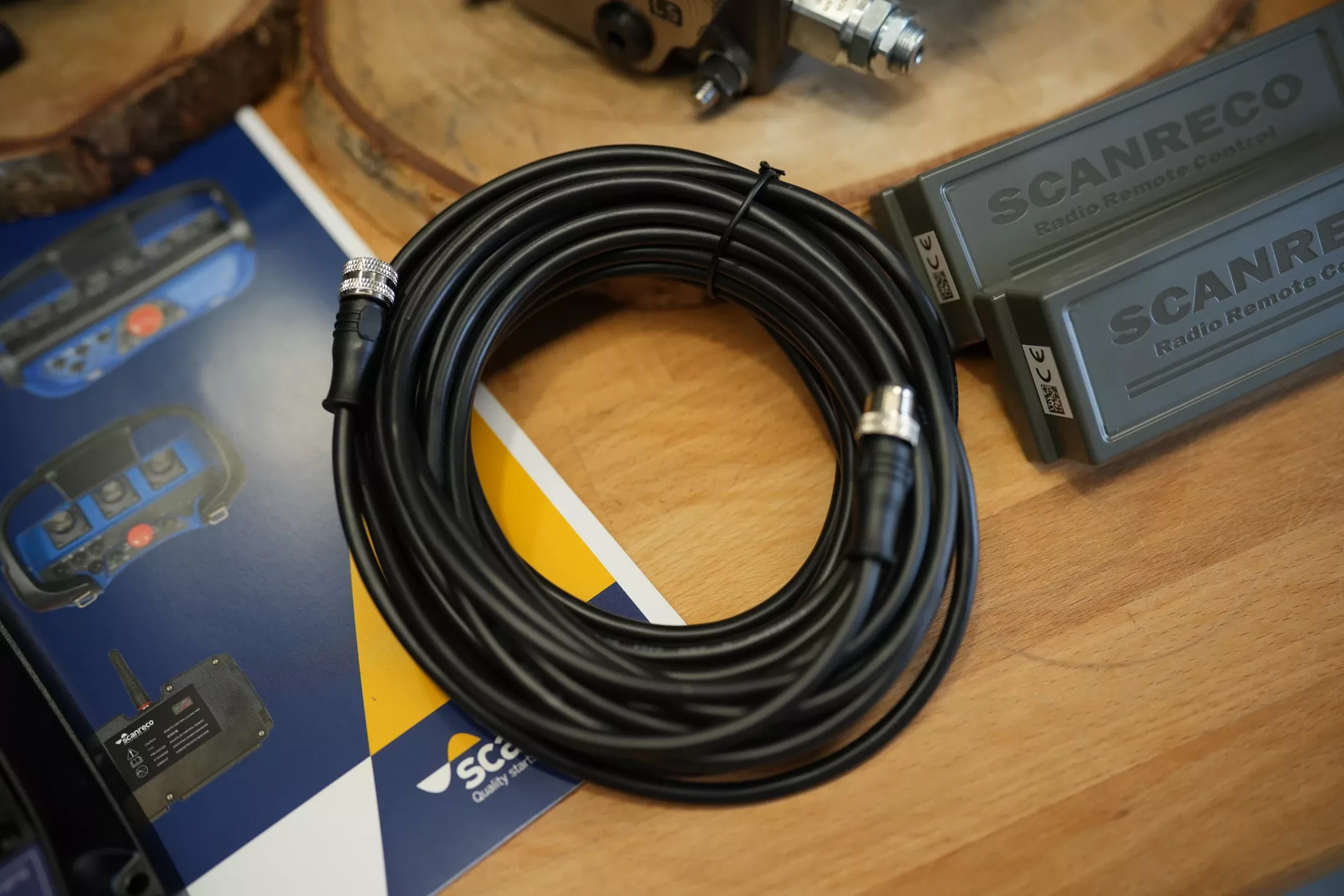

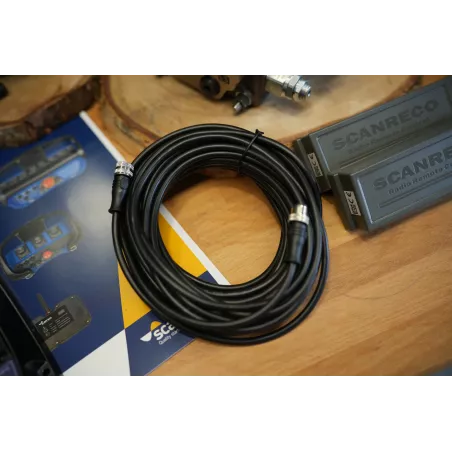

- Cable control: standard length 10 meters / ~33 ft.

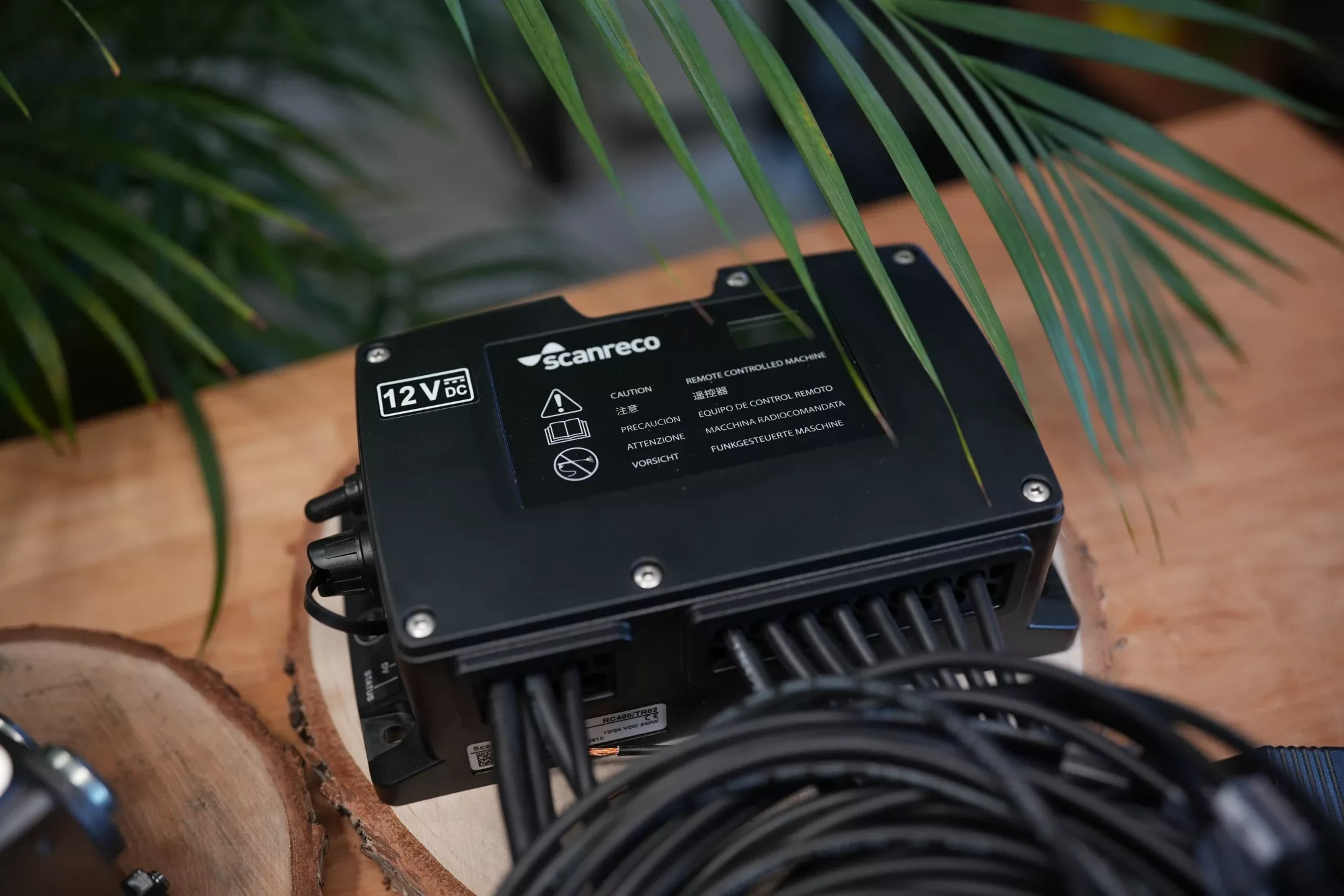

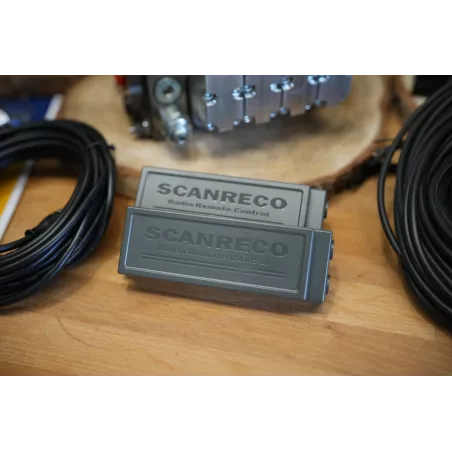

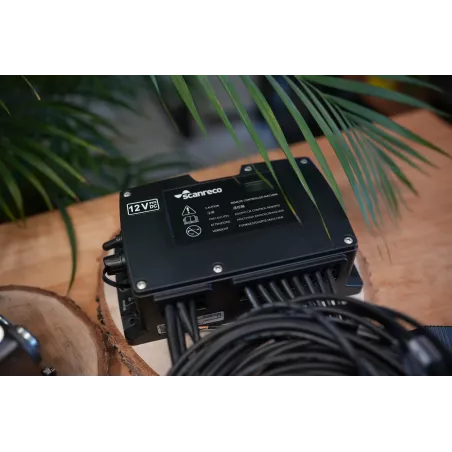

- G2B Receiver PWM 12 or 24 VDC power supply
- Choice of radio or cable control
- 8 bi-directional proportional outputs
- All analog outputs are programmable for final setting of speeds
- - 14 digital outputs (where 1 is combined input/output) and 4 digital inputs (where 1 is combined input/output)
- A DV output to control the dump valve
- Radio communication in the ISM band using frequency hopping technology
- Manual mode available to bypass the radio system, providing only the DV output and allowing manual control via the hydraulic manifold (where available).
- Programmable logic with block, soak, decelerate, ramp functions and much more

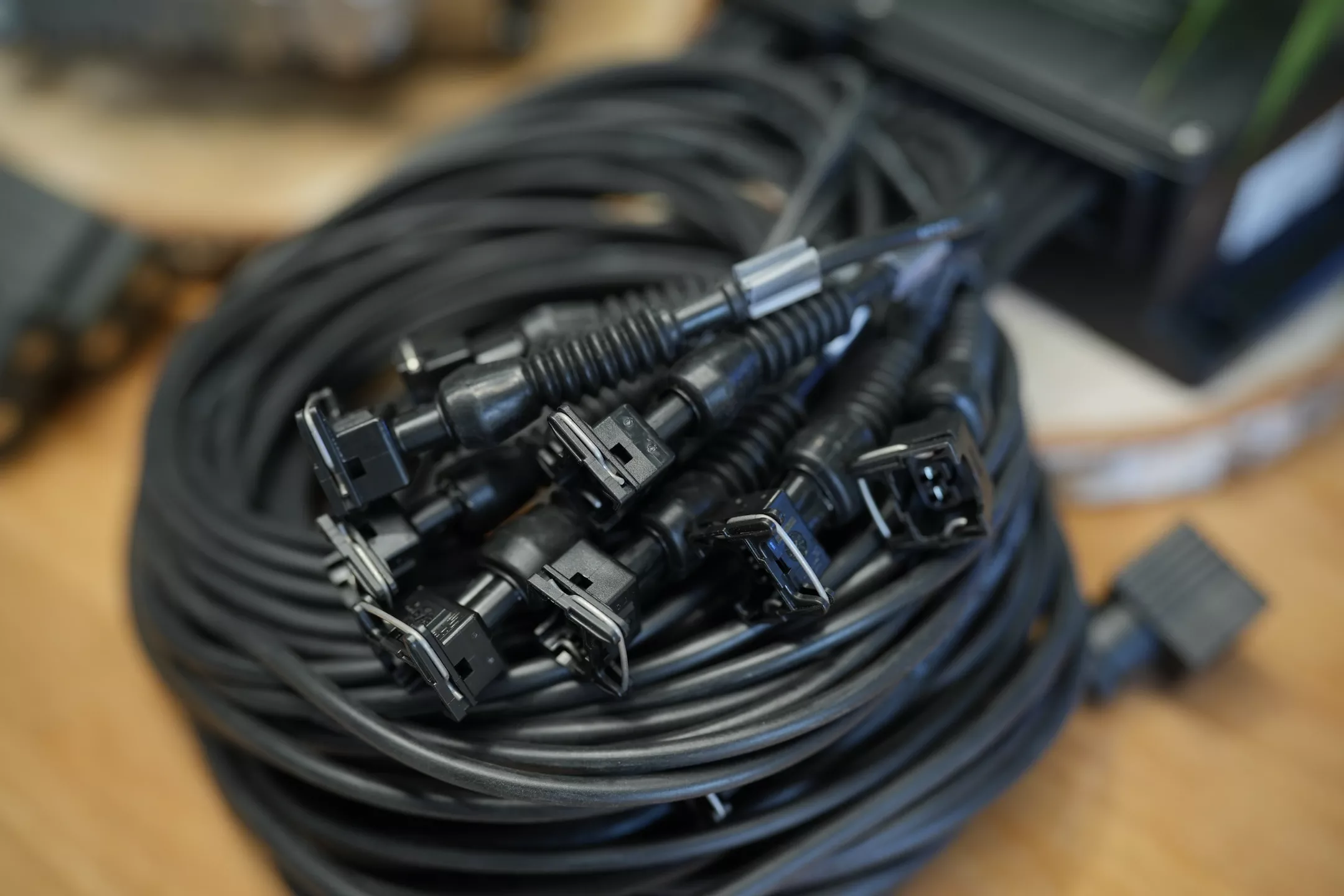

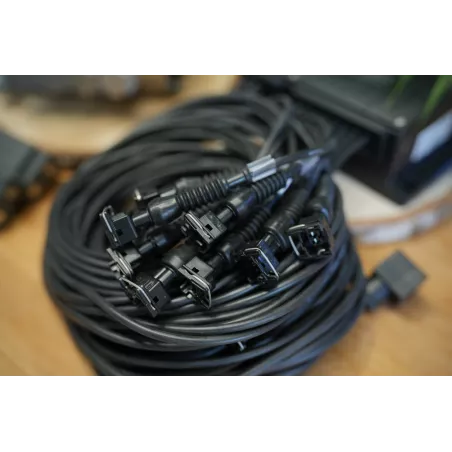

- Please note that cable sets or connection plug sets are NOT included in the scope of delivery and must be ordered separately if required.
- Dimensions: (W x H x D): 350 x 160 x 190 mm / ~13.78 x 6.30 x 7.48 inches (without color display)
 |
The kit works with a lot of application. For sure please contact with us.
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 1,050 $ |
| 10 | 8% | 4,200 $ |
| 20 | 15% | 15,750 $ |
