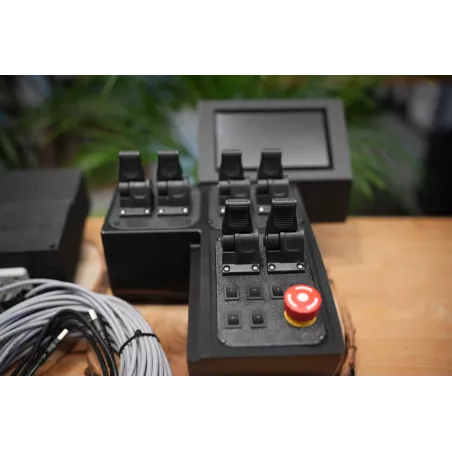

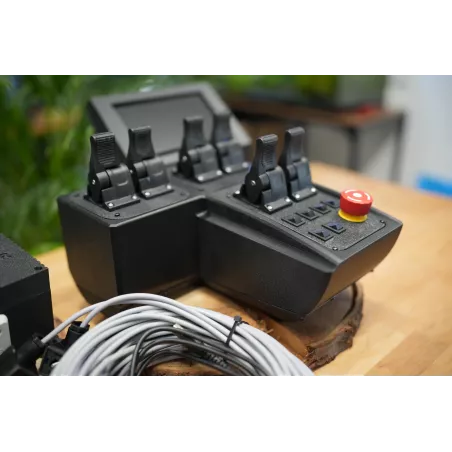

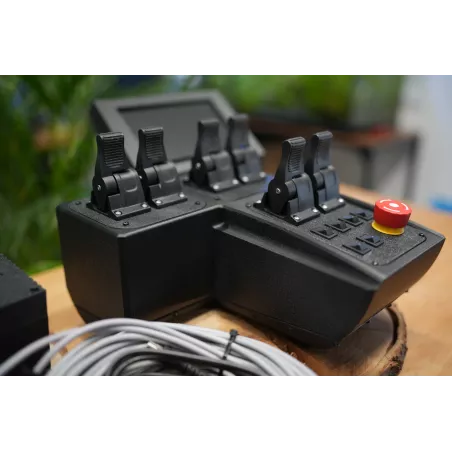

Fire Salamander Large up to 12 functions for heavy machinery

Fire Salamander – designed by Hydraulic Master! 🔥

Perfect solution for:

-up to 12 proportional functions , or more (extension)

-up to 20 on/off functions

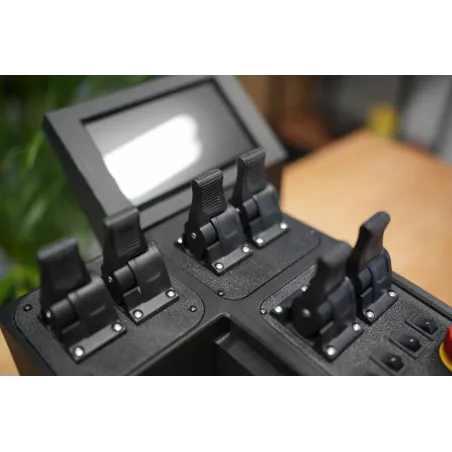

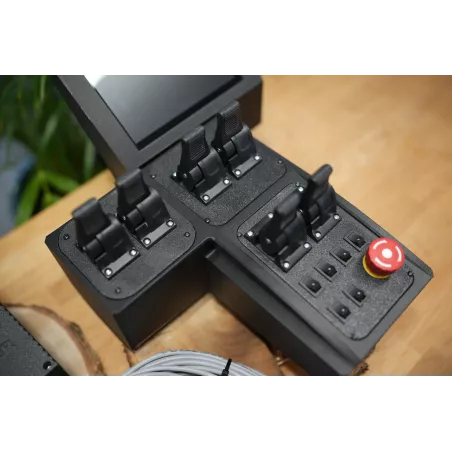

-various control types, including joysticks, buttons, knobs, manipulators, and switches

-intuitive touchscreen display

-user-friendly menu with access to settings

-10-bit PCU board

-PETG carbon cover

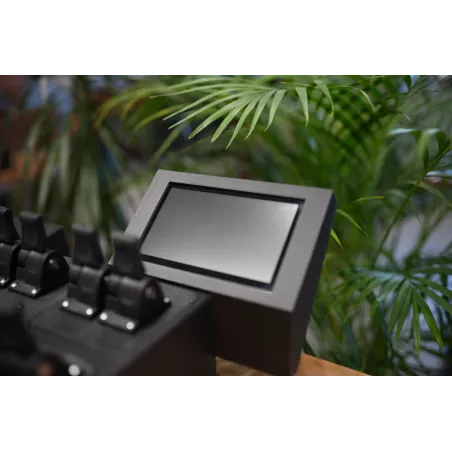

HMI Size: 7″ Resolution: 800 x 480

Number of colors: 65,536

Flash memory: 128 MB

RAM: 512 KB

MCU clock: 200 MHz

EEPROM: 1024 bytes

Number of GPIOs: 8

Functions:

MAX SPEED

You can easily limit the maximum speed for each individual movement.

MIN. SPEED

Set your preferred starting speed for specific functions.

DEADZONE

Adjust the point at which the joystick begins to respond.

FLOATS

Easily enable or disable floating functions.

OTHERS

Custom solutions tailored specifically to your needs.

RAMPS

Easily modify ramp-up and ramp-down times for each output.

TIMER

Set a specific operating time and speed percentage for selected functions. You can define operation durations up to 1 hour or run them continuously.

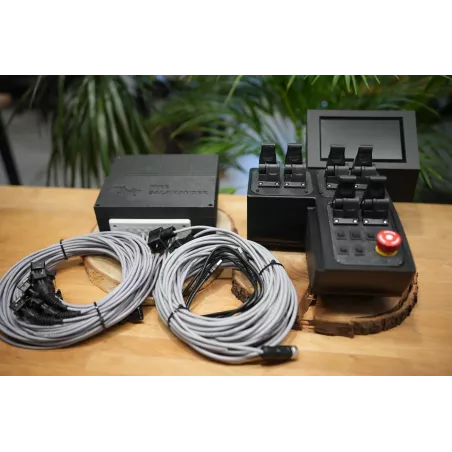

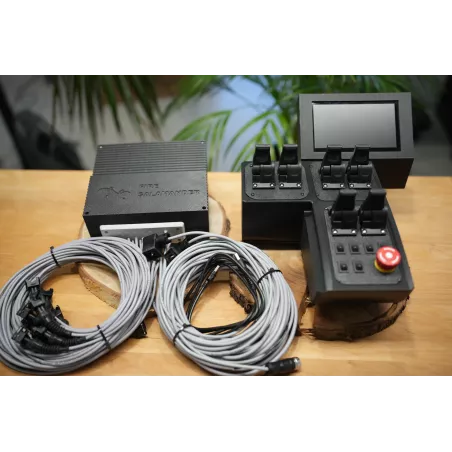

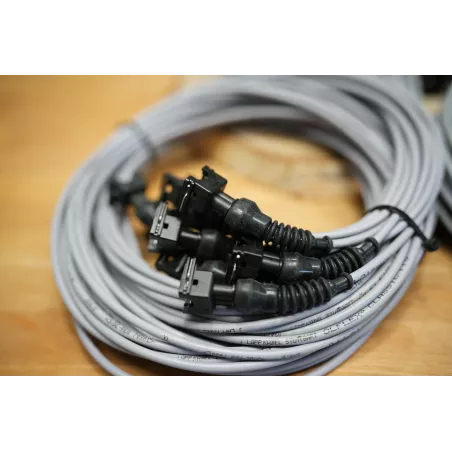

You can choose your own length of cables:

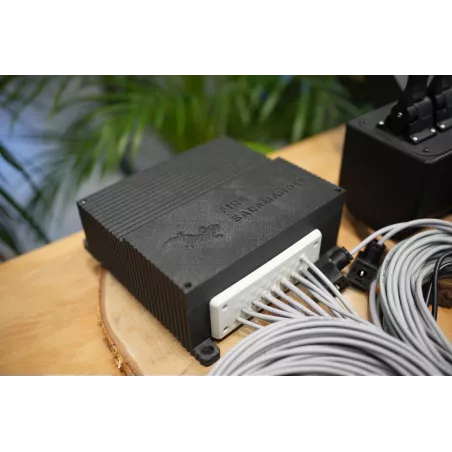

-beetwen hydraulic valve and receiver box

-beetwen receiver box and transmitter

-power supply

-12 or 24 V

The kit works with a lot of application. For sure please contact with us. We can also do working sections with another oil flow
