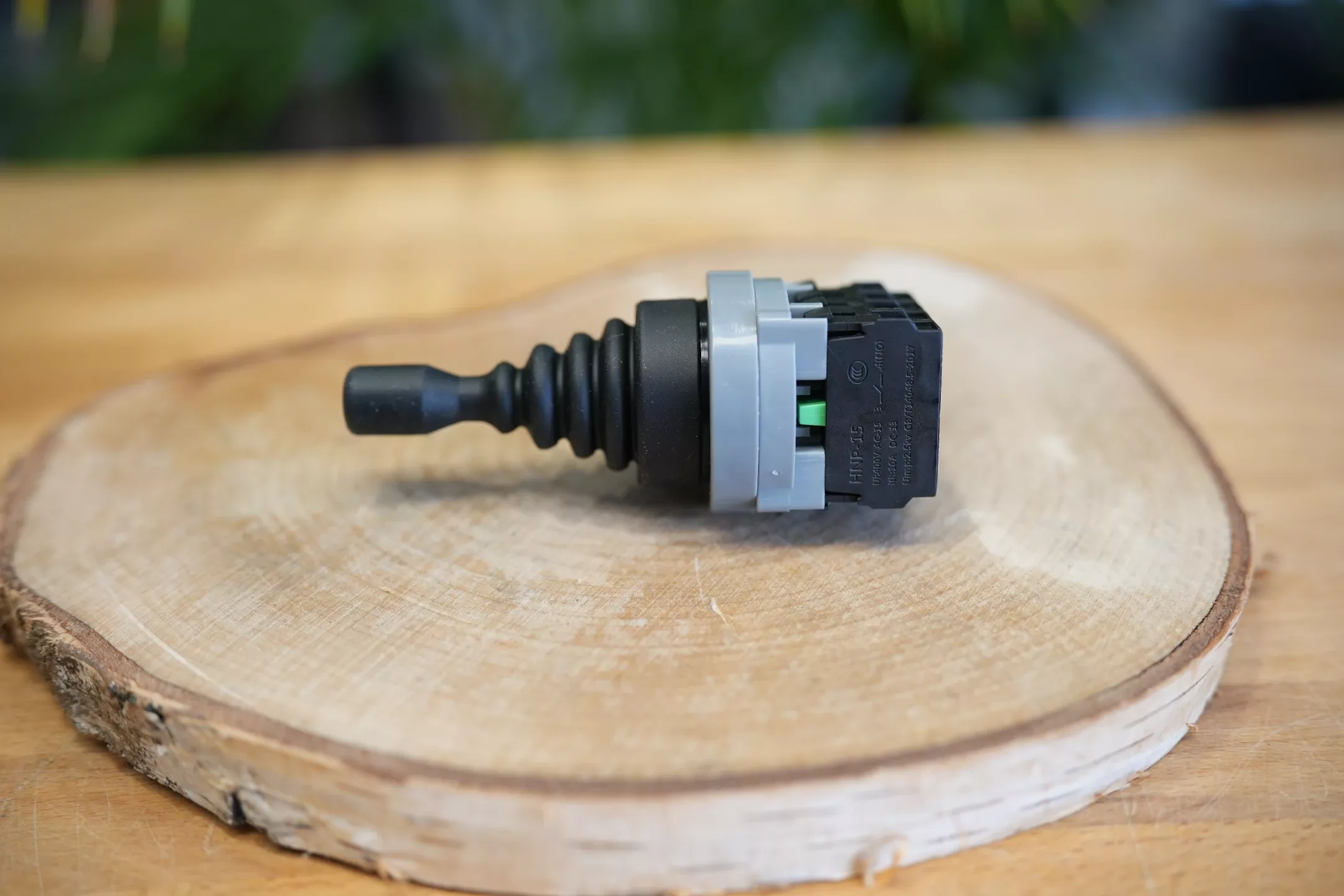

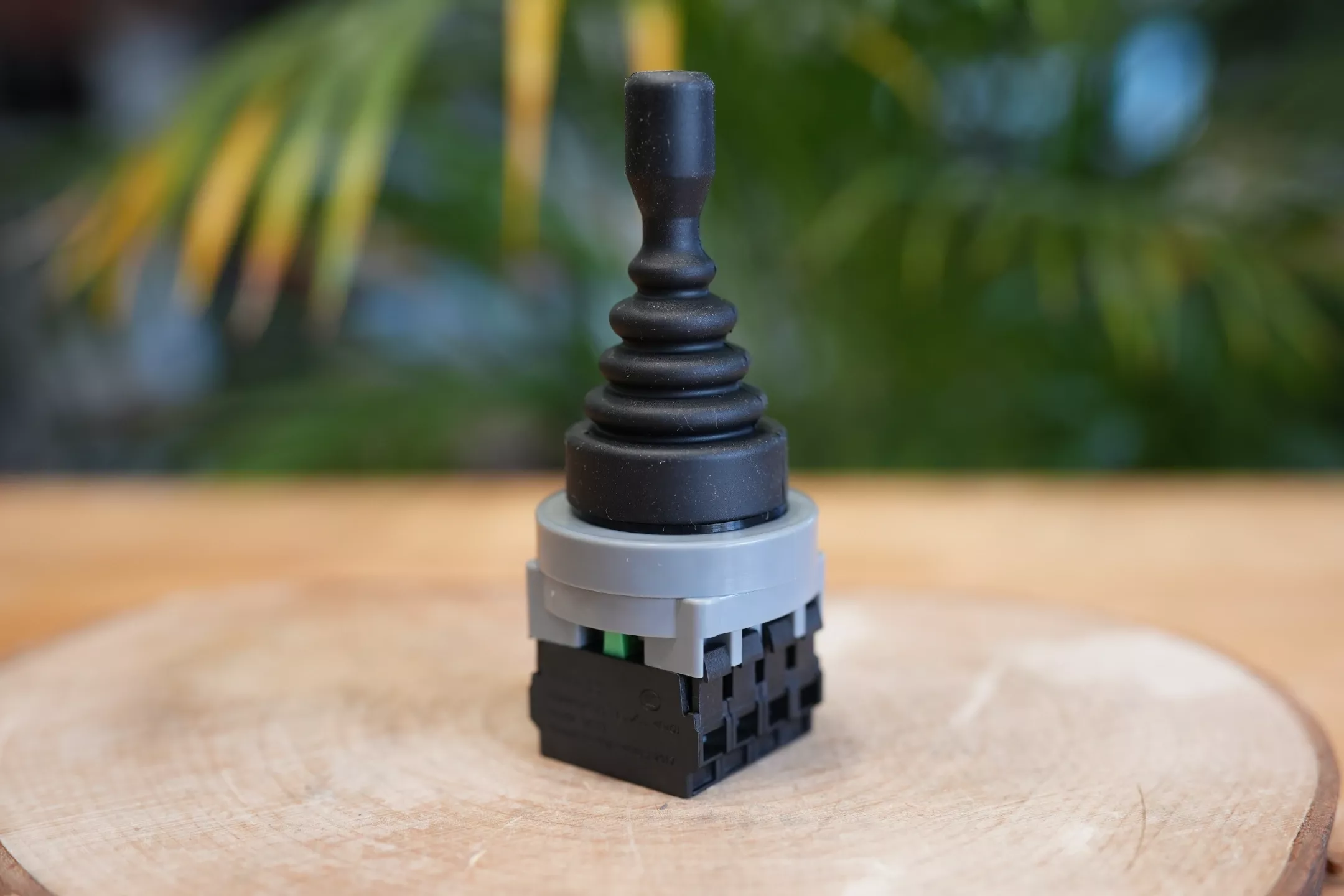

Joystick 4 positions can operate with 2 section double acting valve or 4 section one way walve.

Material: 4 Position NON RETURN SPRING Joystick Controller is made of Exquisite workmanship plastic and metal, stable construction for long-lasting performance for joystick 2 way speed control.

Bistable - the joystick remains in the switching position, when the lever is moved, in one of the directions - left or right, up or down.

Wide scope of application:

The Joystick Switch is widely used in the industrial control circuit of AC 5 HZ, rated operation voltage ~38V and DC voltage of ~22V. for joystick switch latching for joystick 4 way dc.

Applicable scene:

A controller switch for magnetic starter, contactor, relay and other electrical wiring circuit  for 12v dc remote switch for  electric joy stick.

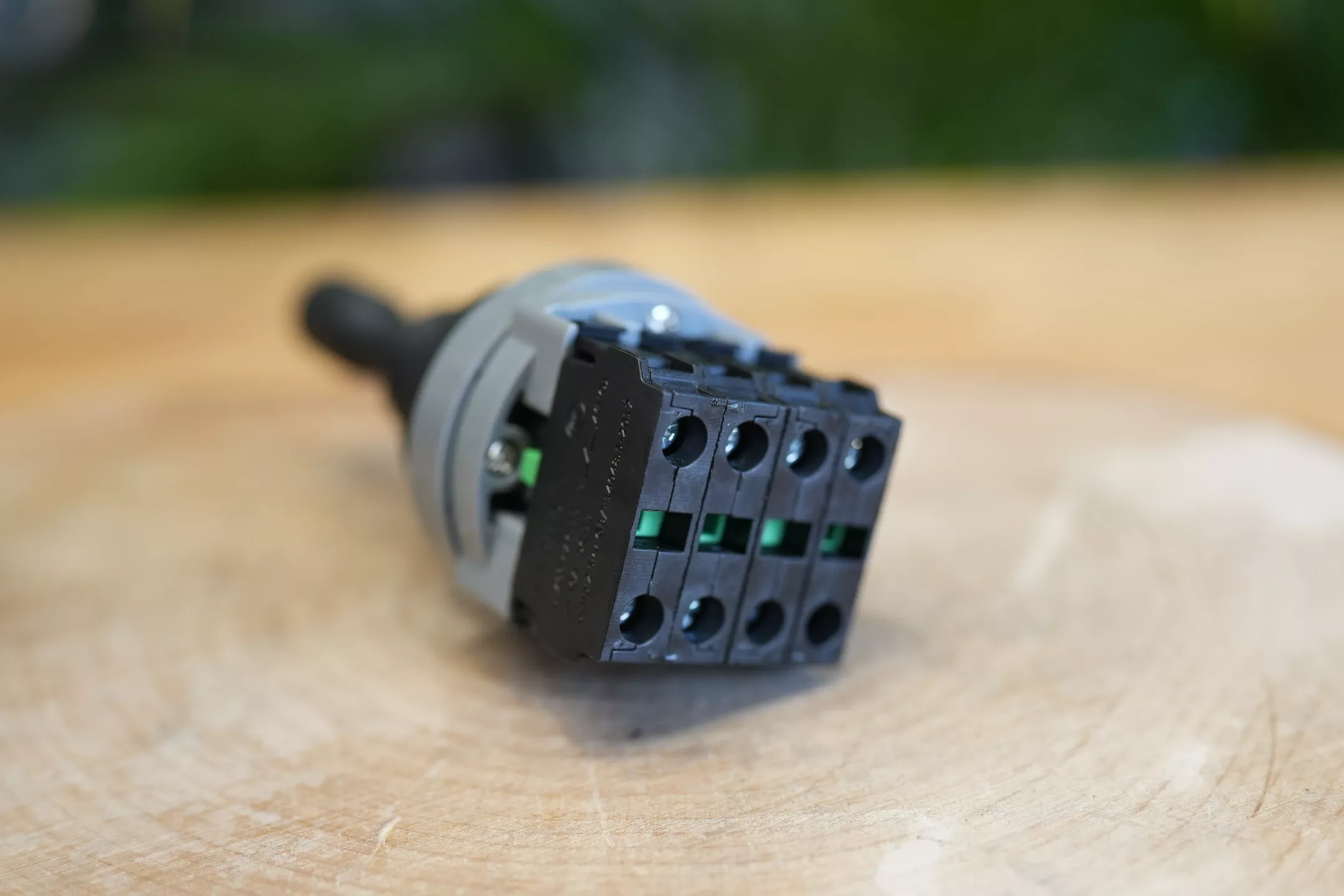

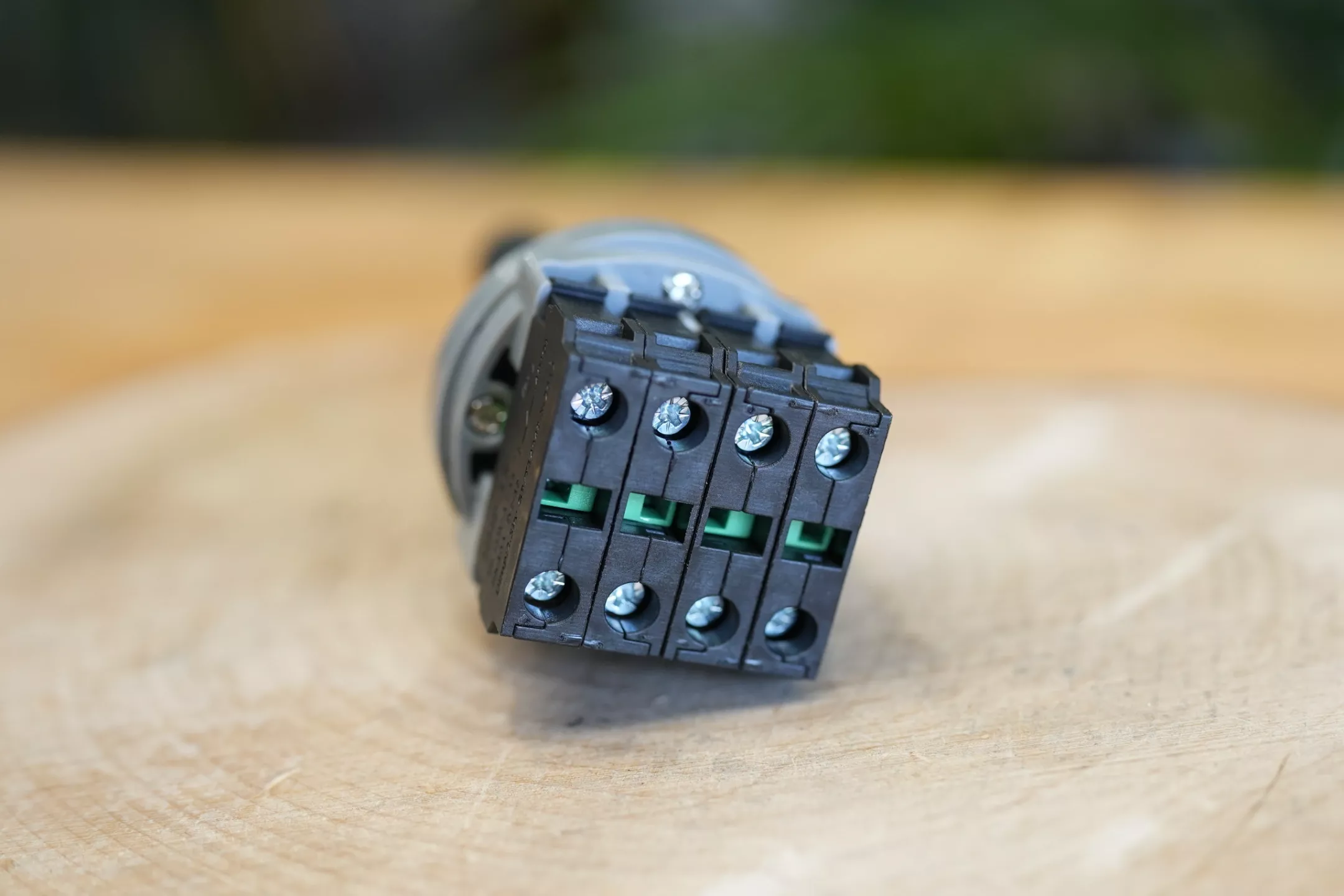

Type: 4 position self lock Contact: 4NO

Voltage: AC 38V 15A

Environment temperature: -25 to +55 (without zing)

Operating humidity: 45 ~ 85% RH (no condensation)

Contact resnce: ≤ 5mΩ Insulation resnce: ≥1Ω

The maximum pressure: 3 V, AC 5

Hz resnce Vibration: 5 Hz, amplitude of about 1mm)

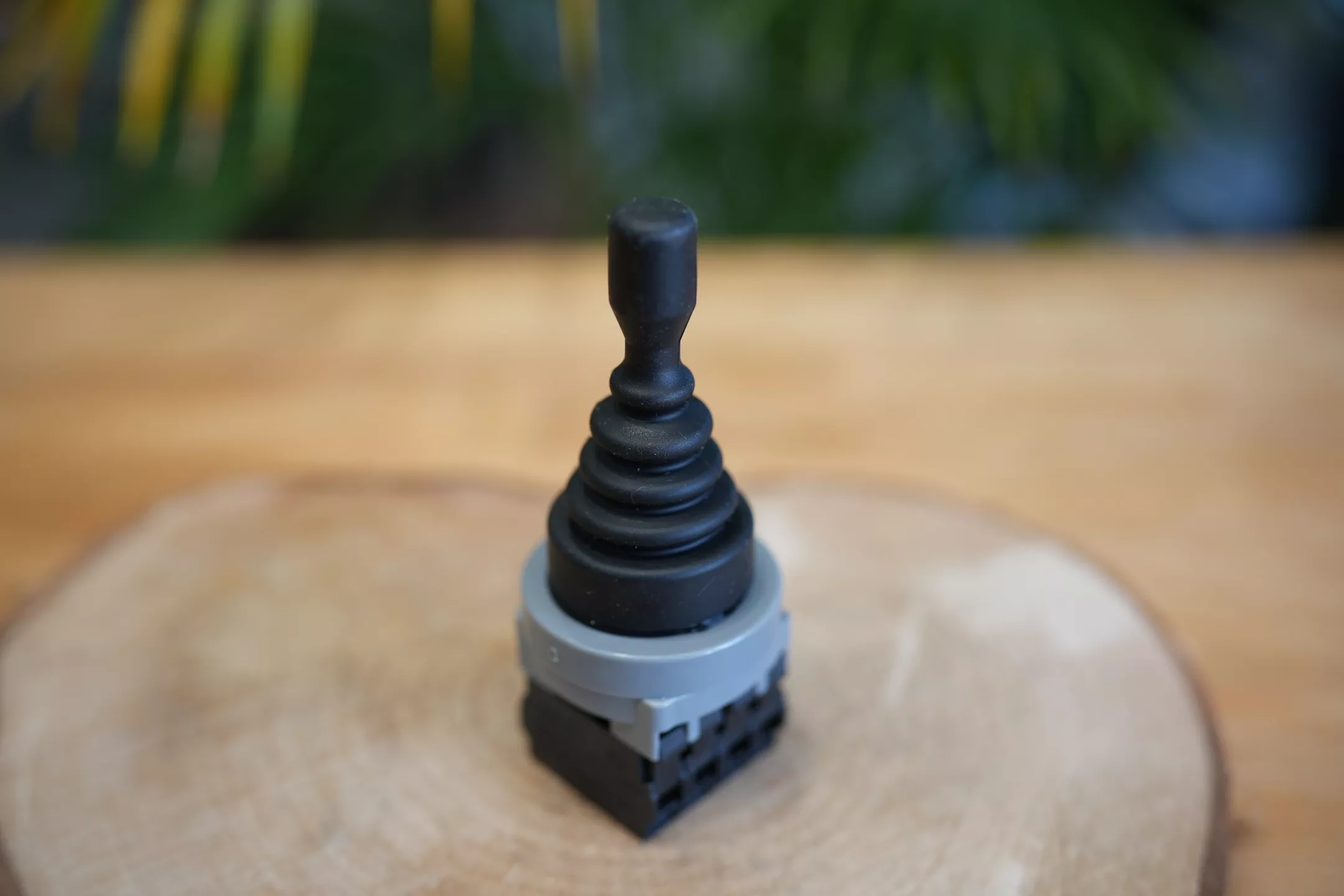

It has a rubber dust-proof, waterproof and oil-resistant sealing cover and rubber gaskets.

Assembly takes place by unscrewing the ring with the cover and the retaining ring, putting the joystick through the hole, fitting the seals and screwing the rings back on.
