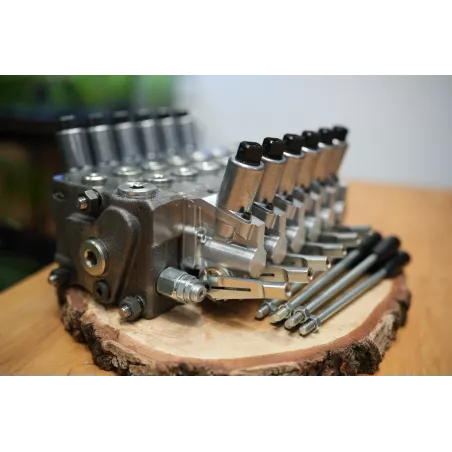

Proportional Valve Walvoil DPX100 6 functions
Hydraulic Valve Walvoil DPX 100 12/24V with 6 Proportional Sections, Open/Closed Center and Additional Levers. The valve includes a post-compensation section.
This valve is configured for the most popular machine settings, supporting up to 6 standard crane functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc. The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.
We provide technical support and are readily available via email, whatsup and telephone.
Feel free to contact us at [email protected] or [email protected] for any inquiries or assistance.
After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Proportional Valve Walvoil DPX100 6 functions
Hydraulic Valve Walvoil DPX 100 12/24V with 6 Proportional Sections, Open/Closed Center and Additional Levers. The valve includes a post-compensation section.
This valve is configured for the most popular machine settings, supporting up to 6 standard crane functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc. The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.
We provide technical support and are readily available via email, whatsup and telephone.
Feel free to contact us at [email protected] or [email protected] for any inquiries or assistance.
After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.
Informations
Hydraulic, sectional valve Walvoil DPX 100 with compensation, full proportional
Technical specifications of default configuration:
Inlet section: 32GPM 120l/min - Pmax 300 bar 4351psi Power supply port: 3/4" BPS, tank return port: 3/4" BPS
1st Slewing - Horizontal movement of the crane 40 L/min 10GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever
2nd Main lift 80 L/min 21GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever
3rd Jib - Horizontal bean extending from the crane 40 L/min 10GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever
4th Extension 60 L/min 16GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever
5th Grab open/close 20 L/min 5GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever
6th Rotator 20 L/min 5GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever
Outlet section: with the possibility of combining valves, with bleed valve (LS relief), with pressure reducing valve. Control connection "V" and drainage connection "L" closed. Side connections "T1", "P1", "LS1" closed. DBV fixed and sealed to 175 bar at 90L/min.
The kit works with a lot of application. For sure please contact with us.
