Proportional Joystick for Loader Fire Salamander up to 120 l/min 32gpm for open center pump or Load sense pump 4 functions

Fire Salamander – designed by Hydraulic Master! 🔥

Proportional Joystick with Touch Display

Developed in collaboration with leading manufacturers and inspired by direct feedback from operators in the field, we proudly present a user-friendly solution that puts full control at your fingertips.

✅ Save your own machine settings directly on the touchscreen – quick, simple, and convenient.

✅ No extra software or cables required – everything is built in!

Standard features include:

Up to 16 proportional outputs (expandable to 32 analog + 16 digital)

UART communication to reduce wiring complexity

Easy integration of joysticks, pressure, and position sensors

The operator can easily:

Adjust minimum & maximum machine speed for every function

Define the joystick dead zone

Configure ramp times for smooth control

Activate the hydraulic valve’s float function

Connect additional devices (joysticks, pressure sensors with bar/psi display)

⚙️ Complete kits are also available with Walvoil DPX proportional valves and more.

Hydraulic, sectional valve Walvoil DPX 100 with compensation, full proportional.

Directional valve of the DPX series and the most versatile and complete. Highly configurable and versatile for applications such as Miniexcavators, Aerial platform, Truck Mounted Cranes, Telehandlers, Agricultural and Forestry machines.

- Valve model for high pressure applications (HP), inspheroidal graphite cast iro

- Optional spool position sensors

- Valve configurations with high flow sections (HF)

- Special inlet sections designed for steering applications

- Synergy with the Walvoil electronic systems range

- Inlet sections with or without by-pass valve

- Manual, hydraulic and proportional electro-hydraulic controls

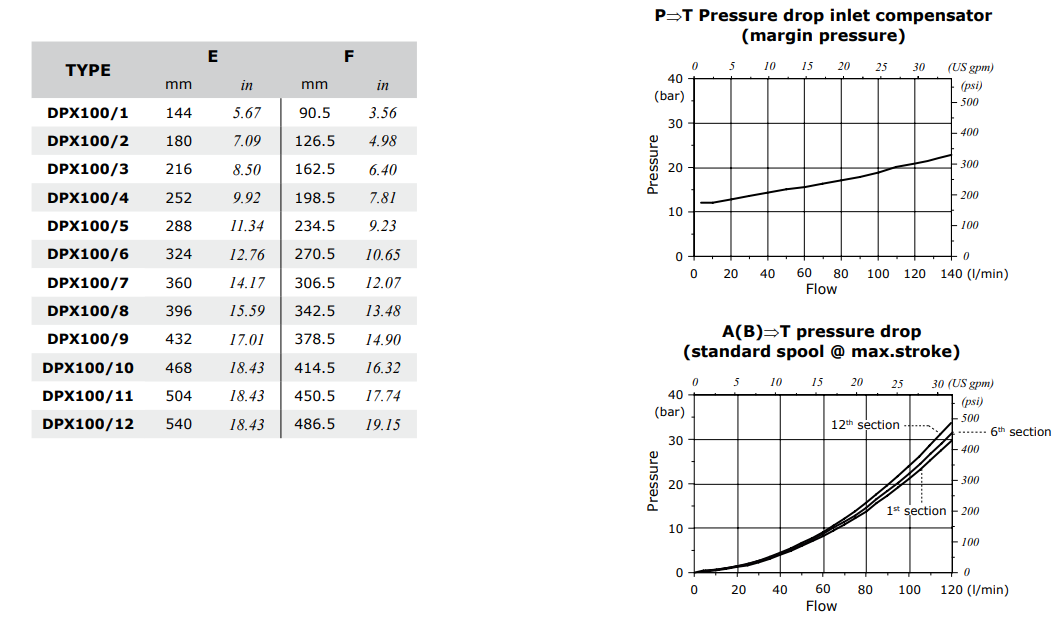

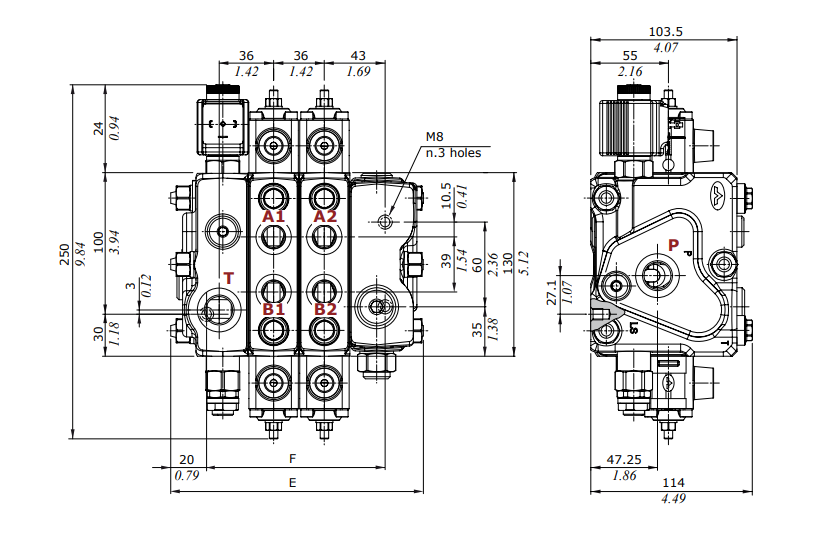

Dimensional data and performance:

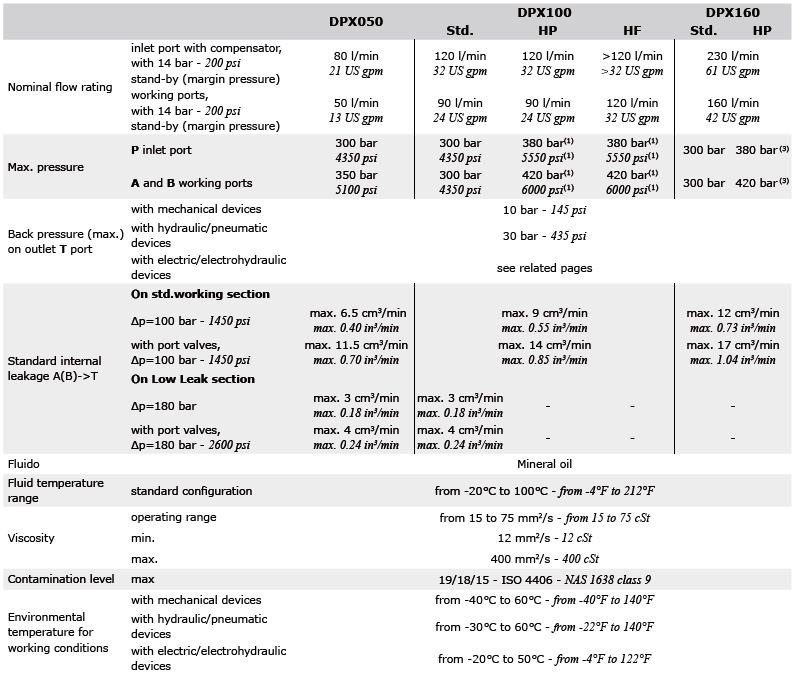

Working conditions:

Technical specifications of default configuration:

Inlet section: 32GPM 120l/min - Pmax 300 bar 4351psi   Power supply port: 3/4" BPS, tank return port: 3/4" BPS

1st 80 L/min 10GPM  A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

2nd 80 L/min 21GPM  A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors with hand lever

Outlet section: with the possibility of combining valves, with bleed valve (LS relief), with pressure reducing valve. Control connection "V" and drainage connection "L" closed. Side connections "T1", "P1", "LS1" closed. DBV fixed and sealed to 175 bar at 90L/min.

The kit works with a lot of application. For sure please contact with us. We can also do working sections with another oil flow
