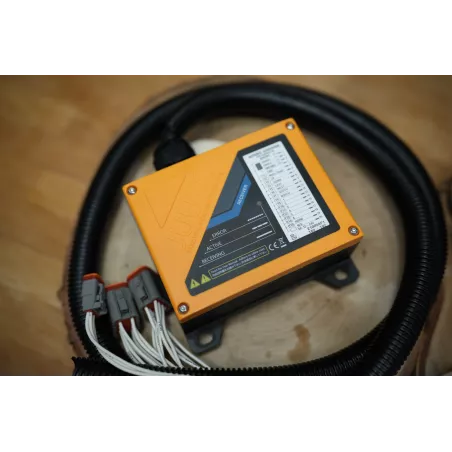

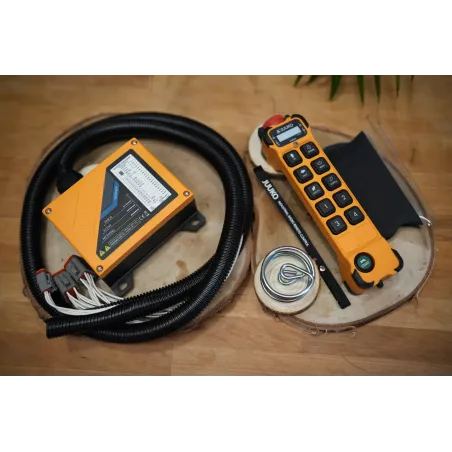

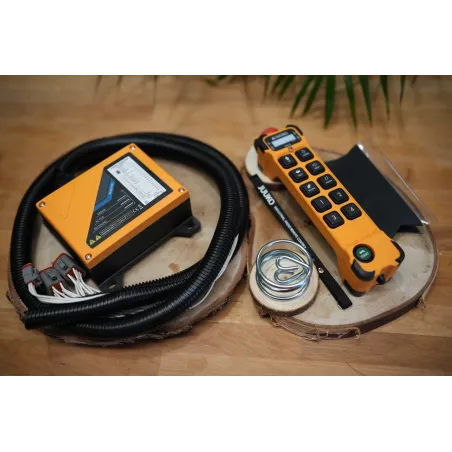

JUUKO HSK 1000 Industrial Remote Crane Control Radio System
Frequency band 433MHz~434MHz
Modulation method GFSK
Typical operating range 100 m
Control system PLL
Antenna impedance 50Ω
Typical response time for Stop command and commands 50ms ~ 100 ms
Power supply LR6(AA)1.5V x2
Average power consumption 8mA@DC3V
Operating and storage temperature (-20°C)~(+55°C)/(-40°C)~(+65°C)
Radio-frequency power <10dbm
Protection degree IP65
Dimensions 193x57x51 mm
Housing material PA (30% G

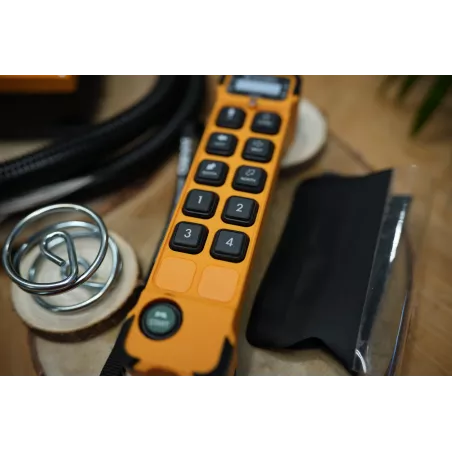

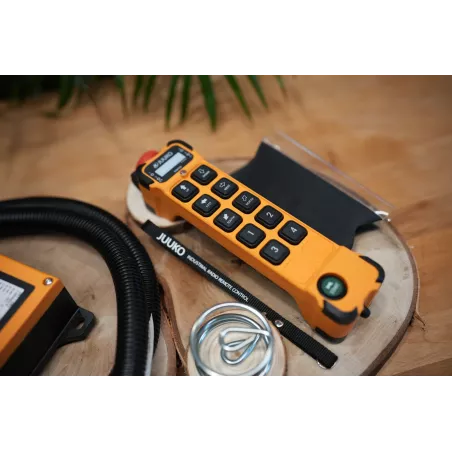

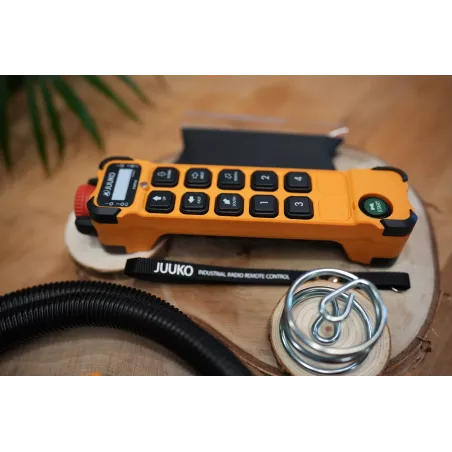

K1000 10 PUSH BUTTONS SINGLE SPEED
Independent LED’s,indicate the status of the battery.
Switching power system.
Activation of the transmitter is protected by an electronic key-code and an auto shut-off option which is programmable.
The system automatically change to a another frequency in the presence of radio interference.
Eco power management system. Save on batteries.
It can receive and display via LED 1 and LED 2, signals coming from the machine control system (relay action feedback).
Mushrooms type EMO button.
Wireless pairing procedure using the keyboard pushbuttons.
