Scanreco Receiver Relay CU Digital I/O G5-R5, G5-R10 R5A
987 $
Product ID: 1567
Order number
When ordering a receicer as a spare part for an existing system the application program configuration file
must be declared if the receiver should be delivered pre-configured!
Order number: 1 CU Digital I/O G5 G5 CU R5A
Scanreco code: 5000
Order number: 2 CU Digital I/O G5 G5 CU R10A
Scanreco code: 5007
Order number: 3 CU Digital I/O G5 G5 CU R5C
Scanreco code: 5009
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information
Our range of Scanreco G5 radio remote controls includes ON-OFF systems, with Pocket (available with maximum 8 push buttons) or Rocket Flex (with 14 buttons) transmitter.
On option, Rocket Flex transmitter can also be equipped with an LCD display panel, manageable in CAN systems.
G5 receivers can be supplied in 3 different versions: relay-output (5 or 10 relays), Mosfet (19 positive outputs) or CAN-bus.
On option, the Rocket Flex transmitter can also be supplied with a dedicated battery charger case. Furthermore, this support can be equipped with a special cradle indicator, which can be useful in order to prevent the loss of the transmitter.
Product description:
- Receiver for the Pocket or Rocket Transmitters.
- 12 or 24 VDC supply.
- 5 or 10 digital outputs.
- Radio communication at 2.4 GHz (ISM-band) using frequency jumping technology.
- Programmable logic offering block-, latching-, delaytime functions and many more.
- Note that cables are not included in the delivery

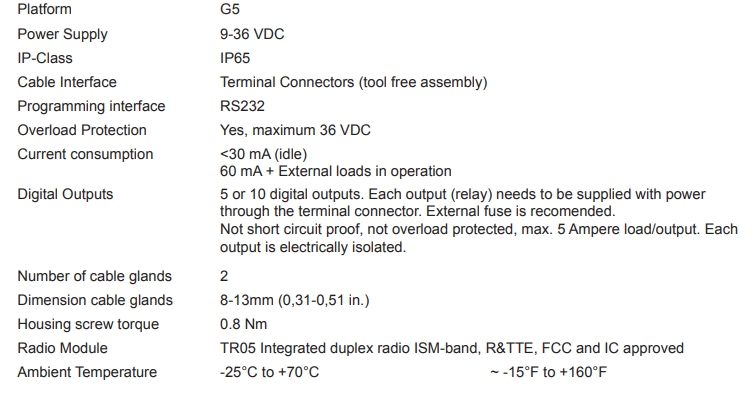

Technical data:
 |

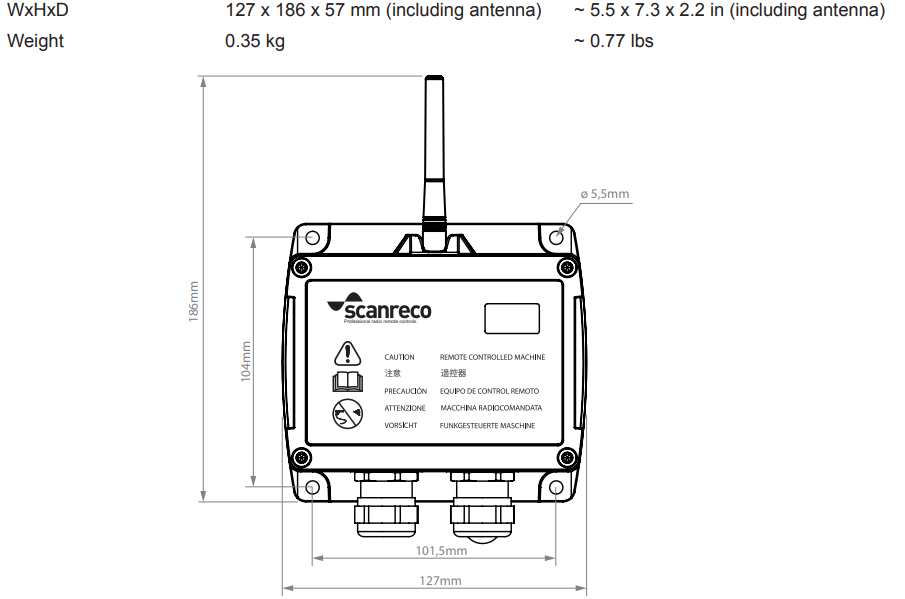

Dimensions:
 |
NO VIDEO PROVIDED FOR THIS PRODUCT
