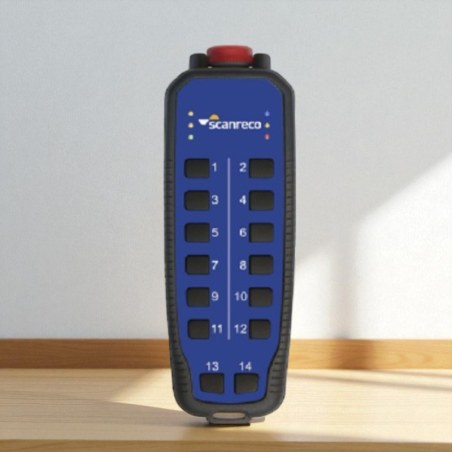

Scanreco RocketFlex Transmitters

Rocket Flex from Scanreco is characterised by efficiency and versatility. Thanks to numerous configuration options, the transmitter offers digital communication with almost all machines and vehicles on the market, ensuring safety and guaranteeing the quality and functionality of Scanreco's Never-Stop Technology.

The Rocket Flex Scanreco transmitter has 14 two-stage control buttons, which can also be configured as momentary, stable, or with exclusions. In addition, each button can be personalized with graphics and/or text. The ability to assign multiple outputs in the receiver to any button ensures effective use of all machine functions. The built-in “SHIFT” function doubles the number of commands that can be assigned using Rocket Flex, and the use of LED controls and an optional graphic display enables free communication between the machine and the operator – all to ensure the comfort of using Scanreco products.

Rocket Flex is the true multi-tasker for, e.g., suction trucks, concrete sprayers, and lifts. But also for applications such as gigantic grinders and crushers, for range extensions and much more. Combined with Mini or Maxi, it becomes even more useful in all situations and weather conditions.

Available in 6 different main versions:

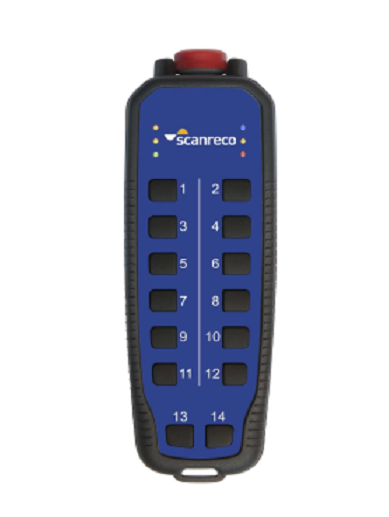

- 14 x 1-step buttons

- 12 x 2-step and 2x 1-step (the lower pair 13 & 14)

- 14 x 2-step buttons

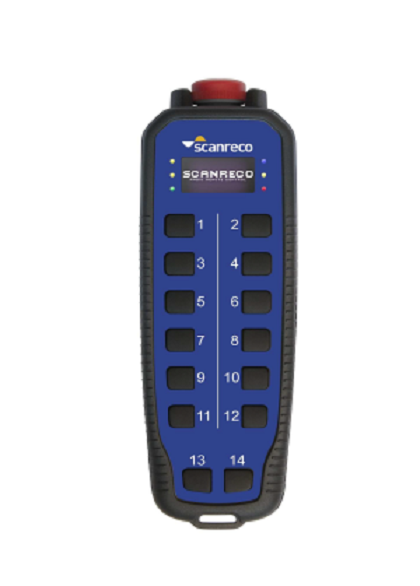

- With or without LCD-Display (OLED monocrome)

Standard features:

6 LED´s

- 1 Fixed for battery charging indication (Blue)

- 5 programmable for feedback or operational status

- Fixed color scheme (Green, Yellow, Yellow, Yellow & Red)

Delivered with 3 x AA re-chargeable batteries

≤ 120 hours without display, ≤ 40 hours with display

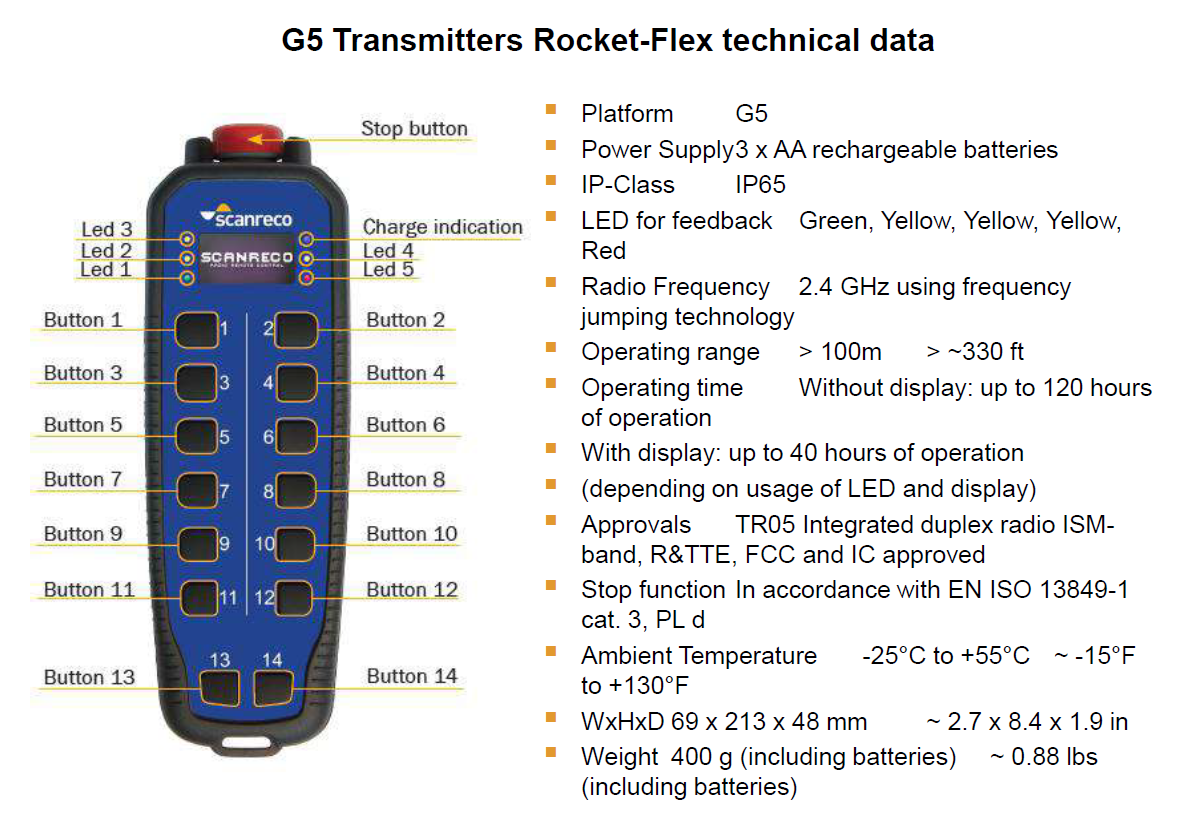

Technical information:

Protection category: IP65

Stop function in accordance with EN ISO 13849-1 cat. 3, PL d

Supply: 3xAA re-chargeable batteries

Operational time: ≤ 120 hours without display, ≤ 40 hours with display

External holder and battery charger

Frequency band: 2.4 GHz

Operating range > 100m / > ~330 ft.

Operational temperature: -25°C to +55°C / ~ -15°F to + 130°F

Dimensions: (WxHxD): 69x213x48 mm / ~2.7×8.4×1.9 in

Weight: 400 g / ~0.88 lbs. including batteries

14 one or two-step pushbuttons

Feedback to 5 light emitting diodes

Optional graphic display with feedback

Order number: 1

HCU Rocket Flex-14 G5 RF14B

RF14 (14x1-step), Std overlay

Scanreco code: 50171

Order number: 2

HCU Rocket Flex-14 G5 RF14A

RF26 (12x2-step, 2x1-step), Std overlay

Scanreco code: 49505

Order number: 3

HCU Rocket Flex-14 G5 RF14E

RF28 (14x2-step), Std overlay

Scanreco code: 51207

Order number: 4

HCU Rocket Flex-14 G5 RF14B Display

RF14 (14x1-step), LCD-Display, Std overlay

Scanreco code: 50142

Order number: 5

HCU Rocket Flex-14 G5 RF14A Display

RF26 (12x2-step, 2x1-step), LCD-Display, Std overlay

Scanreco code: 49503

Order number: 6

HCU Rocket Flex-14 G5 RF14E Display

RF28 (14x2-step), LCD-Display, Std overlay

Scanreco code: 50558
