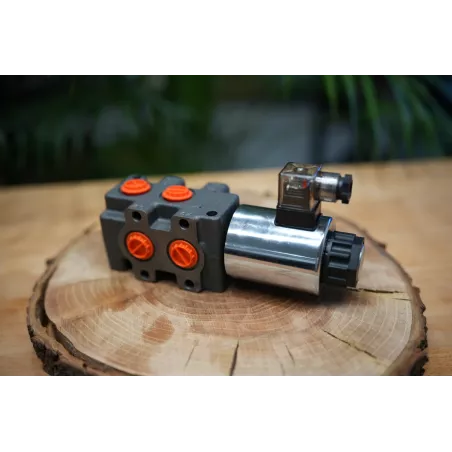

SOLENOID DIRECTIONAL CONTROL VALVE 24V 90 L/MIN 24GPM DIVIDER 6/2 FOR 3RD FUNCTION

175 $
Reference SVV-90/24V Category Home Brand Badestnost In stock 11 Items
Product ID: 75

Max flow: 90 l/min

Solenoids: 24 V

  • Share this:
  • pack2_securityCreated with Sketch. Secured Payment
  • pack2_carrierCreated with Sketch. Fast Delivery
  • pack2_parcelCreated with Sketch. 24/7 Tech Support

SOLENOID DIRECTIONAL CONTROL VALVE 24V 90 L/MIN 24GPM DIVIDER 6/2 FOR 3RD FUNCTION

175 $

Max flow: 90 l/min

Solenoids: 24 V

Informations

Max flow: 90 l/min

Solenoids: 24 V

Ambient temperature -40C...+95C

Hydraulic liquid -mineral oil based/hydraulic oil

Fluid temperature -20C...+70C

Nominal flow 90 l/min

Max operating pressure 280 bar = 4061psi

Viscosity 10-400 mm2/s

Filtration 18/14 acc. to ISO4406

Supply voltage 24 V DC

Power , W 65

Internal threads in the body:

Connection port supply: 1/2''

Connection port return: 1/2''

Connection port sections : 1/2''

Switching frequency, 1/h 15 000

Hydraulic liquid -mineral oil based/hydraulic oil

Duty cycle 100% Spool leakage-100bar and 25mm2/s viscosity 2.0 cm3/min

The distributor is suitable for various types of machinery such as: agricultural machines, tractors,

sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers,

industrial machines and other hydraulically operated equipment.

Volume discounts

Quantity Unit discount You Save
5 4% 35 $
10 8% 140 $
20 15% 525 $
