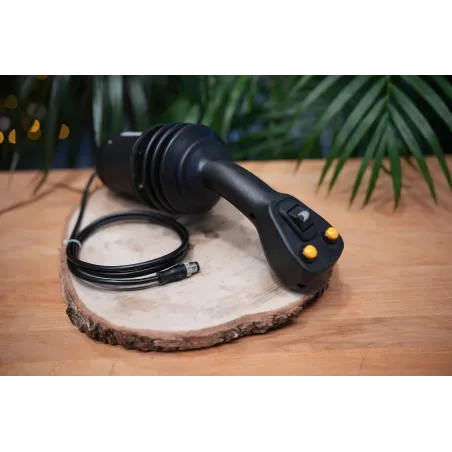

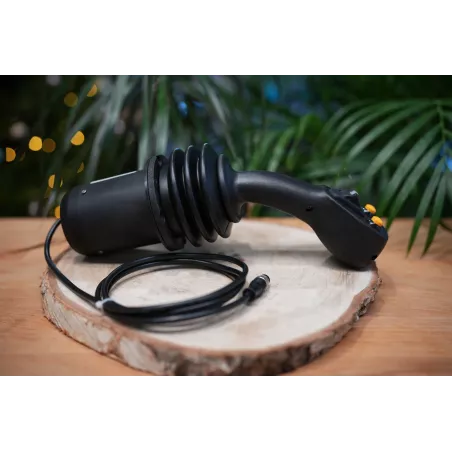

Three axis FABER-COM proportional joysticks can be used in a large variety of applications where is necessary to have a simple and reliable user interface to control construction machinery.

JC thanks to its inputs, can collect a large numbers of control signals and transmit them through a CANbus network.

Below are some of the available options:

- "virtual cross" to forbid diagonal movements.

- standard or capacitive dead man switch.

- linear or parabolic output curve.

- adjustable dead band, indipendently for each semiaxis.

- Thumbwheel, for third prop. axis (not available in Danfoss version)

- Outputs lock if the hand-grip is not in neutral position at joystick

turn on.

- Dump valve output with delayed turn off, to avoid high pressure

spikes in the hydraulic circuit.

- Offset to compensate the hydraulic distributor dead band.

- Auxiliary output activated with logic and command levels user defined (software configurable).

- Two or three speed sets allow to regulate speed according to the machine configuration.

- Combination with only one proportional PWM output with many directional ON/OFF outputs.

- Tracked machines driving function, to directly control two pumps of an hydraulic driven machine with the up/down

and left/right joystick movements (virtual 45° axis rotation).

- Dead man switch functionality active only with joystick in neutral position.

- Auxiliary inputs/outputs can be active high or active low (software configurable).

- All the joystick have a FAULT output which is driven low if a failure occurs. The LEDs on the bottom side helps the

user to check the correct joystick functionality and connections.

- Analog current outputs are feedback controlled. ON/OFF outputs are protected againts short-circuits.

- All the joysticks have a serial port to connect PRG2 serial programming keyboard (provided apart) to configure and

calibrate the product.

- All the joystiks are provided by default with 50 cm unpluggable cable but it is possible to require a customized wiring.

JC Specifications:

- CAN V2.0B communication bus

- 5 analog inputs (2 of them software configurable as 4-20 mA inputs), 2.5V centered, usable to read

 5 indipendent push buttons or 5 "rocker switch"-like push buttons

- 2 ON/OFF inputs (one of them can measure frequencies as PICK-UP input)

- 1 ON/OFF output

- push buttons power supply output, protected against to short-circuit

- serial port to configure and calibrate the joystick

The JC joystick is provided with the FABER-COM communication protocol.

On request it is possible to customize the communication protocol in order to link up the joystick to other customer

CANbus devices.
