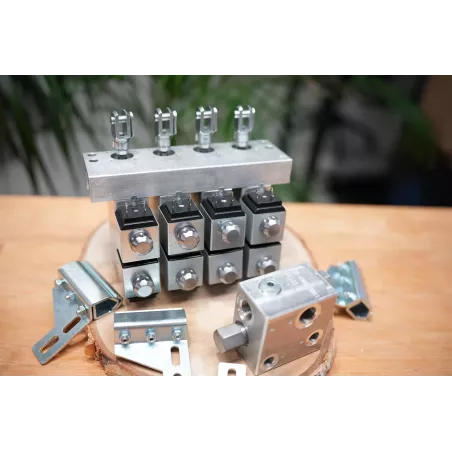

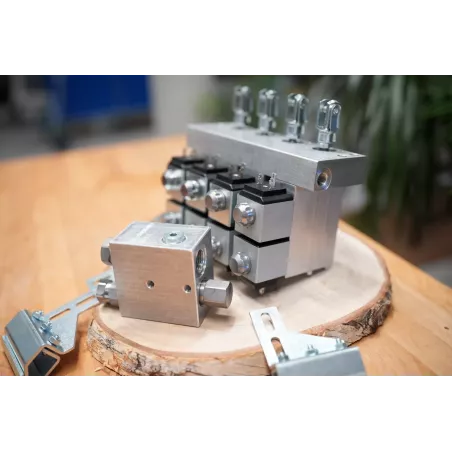

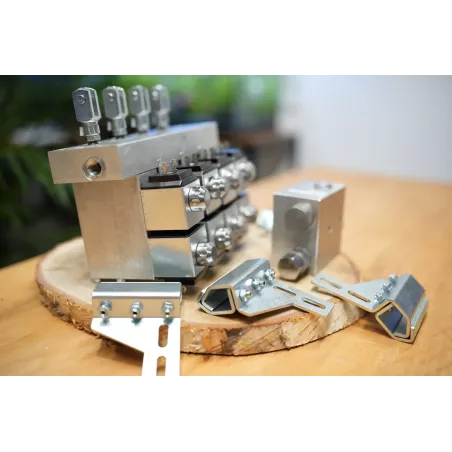

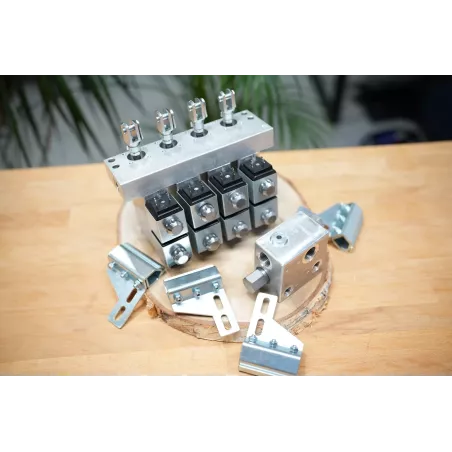

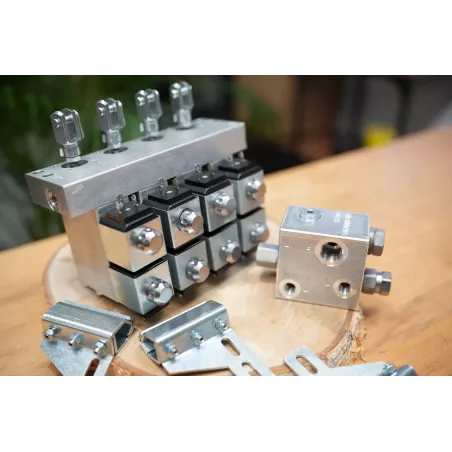

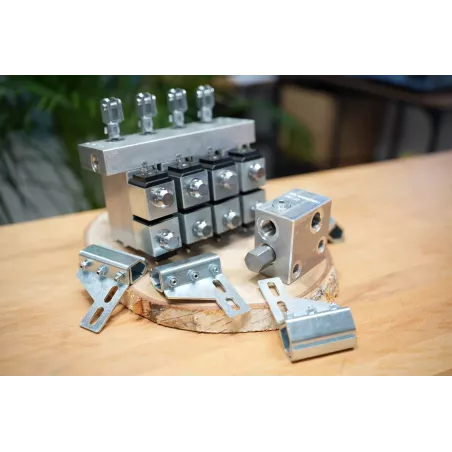

ACTUATOR BLOCK MOD 10 FOR 4 FUNCTION 24V

$2,400
Reference 4function24v Category Home Brand Scanreco In stock 50 Items
Product ID: 456
Stroke

Power supply: 24V

Max working pressure: 30 bar (435,1psi)

Max thrust: 1300 N (at 30 bar= 435,1psi)

Available models

  • Share this:
  • pack2_securityCreated with Sketch. Secured Payment
  • pack2_carrierCreated with Sketch. Fast Delivery
  • pack2_parcelCreated with Sketch. 24/7 Tech Support

ACTUATOR BLOCK MOD 10 FOR 4 FUNCTION 24V

$2,400
Stroke

Power supply: 24V

Max working pressure: 30 bar (435,1psi)

Max thrust: 1300 N (at 30 bar= 435,1psi)

Available models

Informations

MOD10 proportional servocontrols actuator block.

The hydraulic bank MOD10 electrohydraulic system, when coupled with a manual hydraulic distributor, allows for remote control.

The bank is made up of a manifold with mounted on as much sections (modules) as the movements to activate. All the modules are identical and they are fixed to the manifold with four screws stay. Each module works as standalone.

The coupling of the hydraulic bank pistons to the manual distributor, already mounted on the machine, is done by brackets to screw on the dual control rods which have to be coupled with the forks mounted on each piston.

It is possible to connect the forks to a different leverage system as long as is guaranteed, with right slots, an enough play to prevent stress in different direction than the axial one.

The product has a high reliability.

The installation of this block adds to a hydraulic valve the remote control, by cable or by radio. The specific design for the dual control rods allows its installation on any type of hydraulic mechanical valve.

Electrical specifications:

Fluid type: Mineral oil 10 ÷ 200 cSt
Max blow-by: 100 cc/minute

PWM solenoids (voltage signal)

The MOD10 offers 3 section spacing options; please specify which one you choose when purchasing.

Each module is made up of a hydraulic cylinder commanded by two proportional valves with mechanical feedback.

There are two mechanical strokes to choose from: 13 mm and 20 mm.

Hydraulic scheme:

Electrical connections:

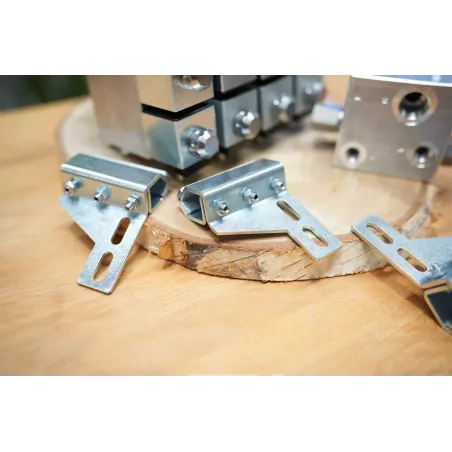

Each kit includes counter-pressure blocks, bracket and a filter.

Technical specifications:

Max flow:

70l/min

140l/min

Pressure working:

210 bar in P

8 ÷ 25 bar in V

1 bar in L

Default filtering: ISO4406 18/14

Fluid: 20-150cSt

Body material: Aluminium

Weight:

70l/min: 1,2Kg

140l/min: 2,3Kg

Dimensions (mm)

70l/mn: 133x83x50

140l/min: 148x115x50

Typical application: Hydraulic circuit
