Control Cards, Digital Electronics, Amplifiers For Proportional Hydraulics, Type 20RC 10E
342 $
Product ID: 1585

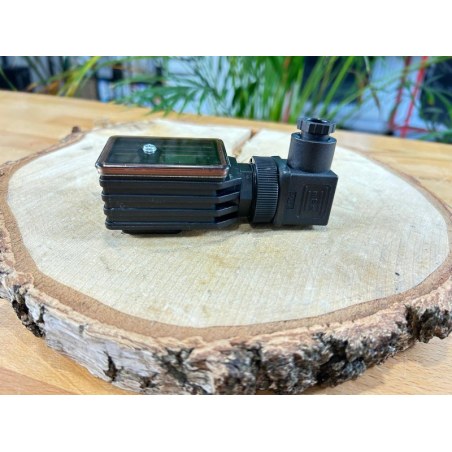

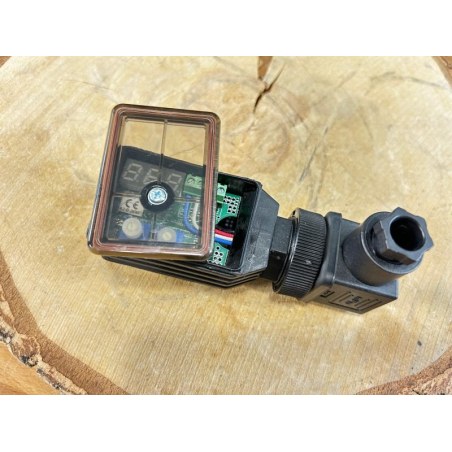

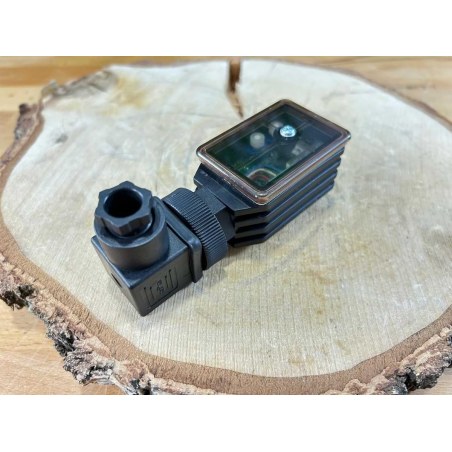

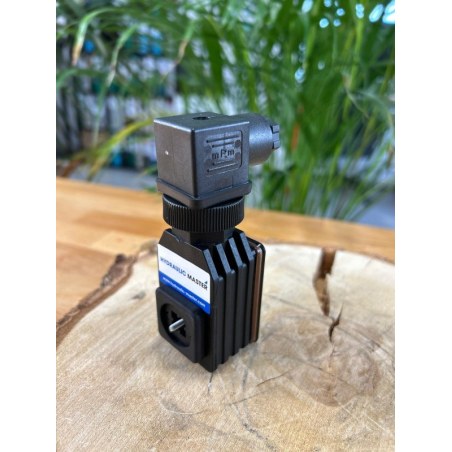

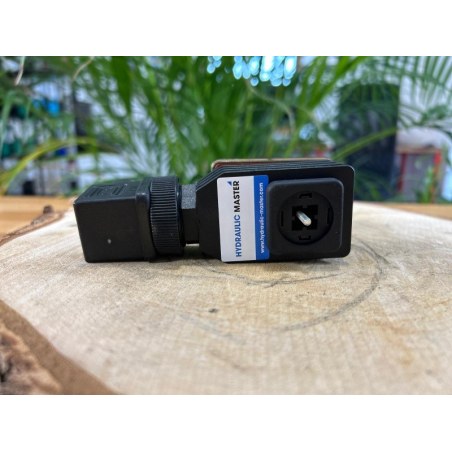

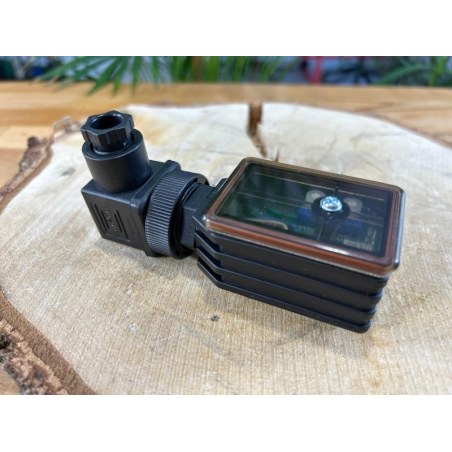

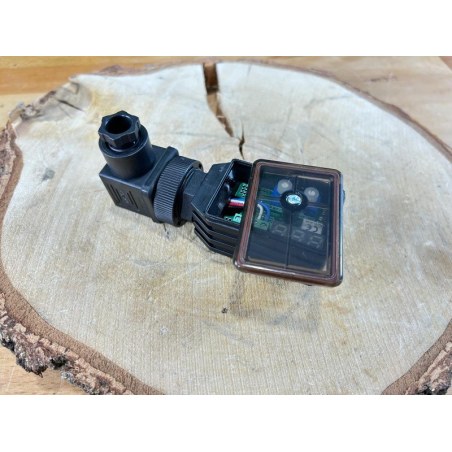

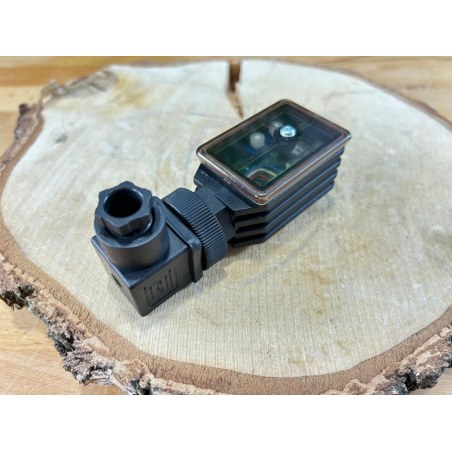

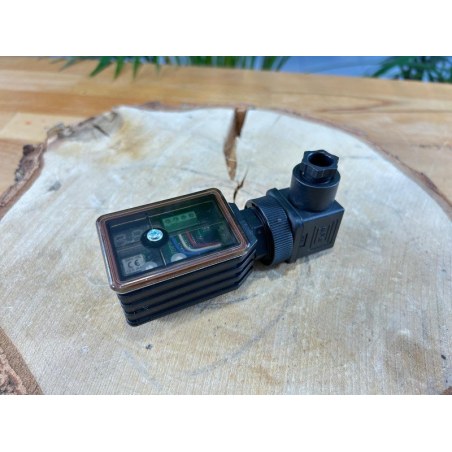

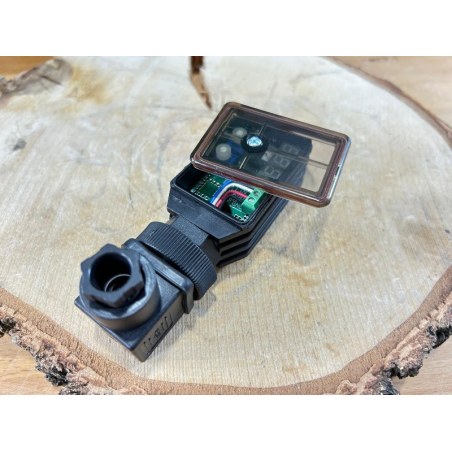

Digital current regulator with 4-pin plug
(mounted directly on coil).
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information
The 20RC10 E digital current regulator is used to control proportional solenoids in hydraulic valves.
The regulator is mounted directly on the solenoid with a connection according to ISO 4400/DIN 43650-A, power supply and control connected via a plug of the same type (ISO 4400/DIN 43650-A).
Characteristics of the regulator:
- wide supply voltage range
- large 3-digit LED display - easy to read parameters
- choice of control signal (current or voltage)
- displays the current value of the current flowing through the electromagnet or control signal
- wide range of ramp time settings
- independent adjustment of rise and fall ramp times
- microprocessor-based design
- adjustable output current
- high output current stability
- adjustable base current frequency
- plug-in housing mounted directly on the valve
- input protection against polarity reversal
- electronic short-circuit protection

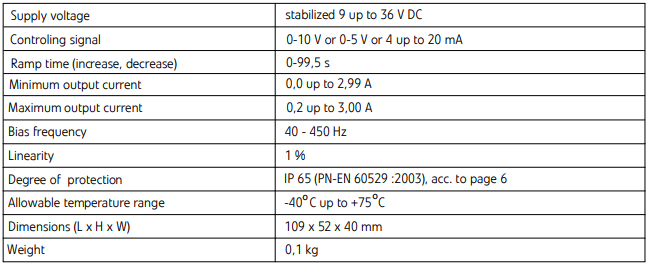

Technical data:
 |

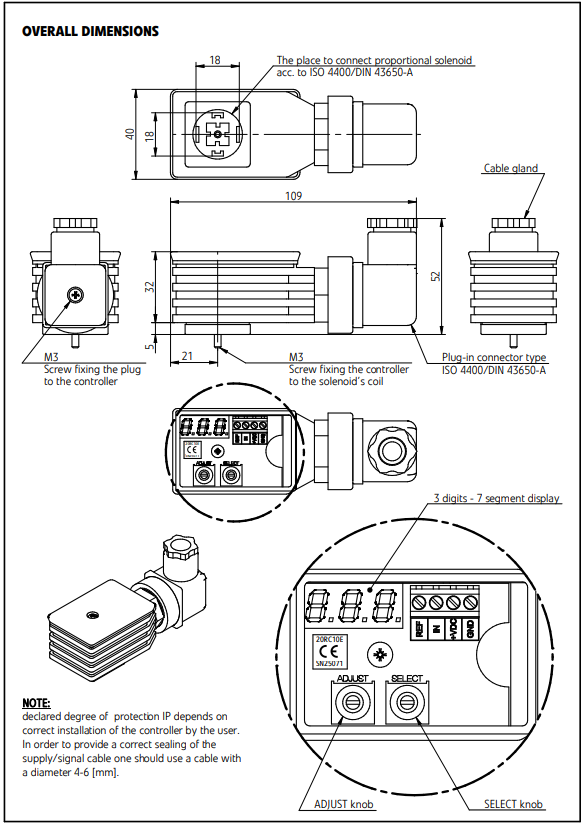

Overall dimensions:
 |
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 68 $ |
| 10 | 8% | 274 $ |
| 20 | 15% | 1,026 $ |
