Hydraulic Pump Sunfab SLPD-46/46W-N-DL4-L35-S4S-0

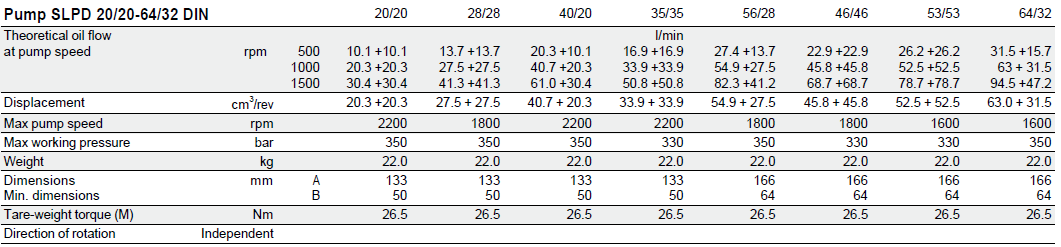

SLPD 20/20-64/32 DIN comes in eight different sizes, where three models feature differentiated flows.

Pumps with differentiated flow increase the field of application as they can provide three different flows: one small, one large and one combined flow.

Maximum pressure is 330-350 bar depending on the model. Its slim pump housing makes direct mounting on the power take-off possible in very confined areas.

SLPD 20/20-64/32 DIN is also ideal for installation using a frame bracket via an intermediate shaft.

Added value:

-  Independent direction of rotation

-  A cost effective total solution in relation to a conventional installation using two pumps with a splitter gear box

- Smooth operation over the entire speed range

- Long life due to high demands on material selection,

such as bearings, seals, etc.

- Extremely low noise

- O-rings on all contact surfaces as well as double

shaft seals

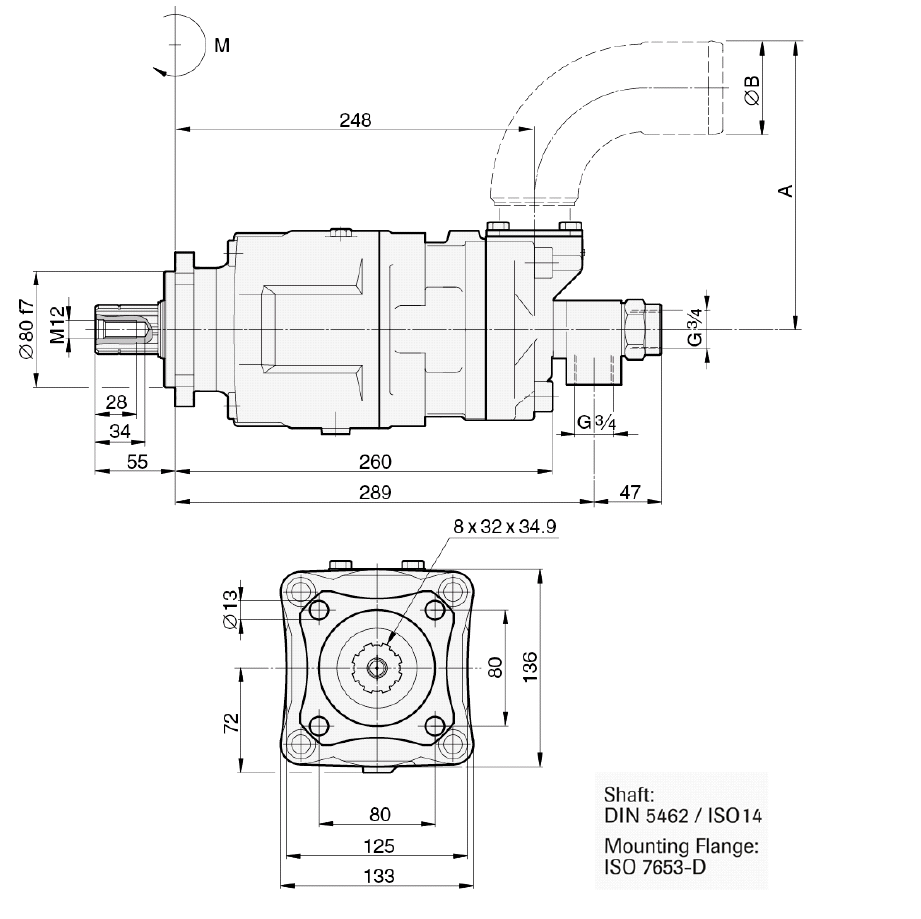

Scheme:

SLPD-46/46W-N-DL4-L35-S4S-0

Working displacement: 2x45.8 cm3/rev

Direction of rotation: Bidirectional

Max. working pressure (continuous): 330 bar (4786.25 psi)

Flange type: ISO 7653-D

Centering diameter: 80 mm (3.15 inch)

Shaft type: Spline 8x32x34.9

Pump type: Double flow piston

Manufacturer: Sunfab
