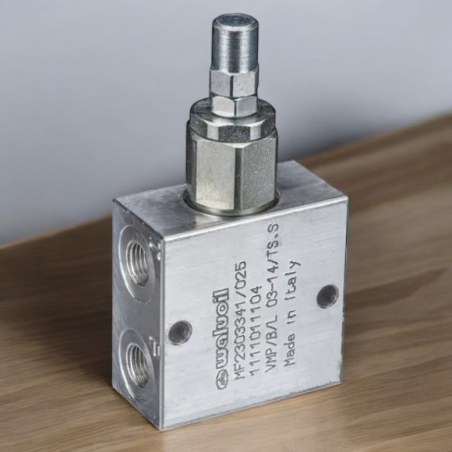

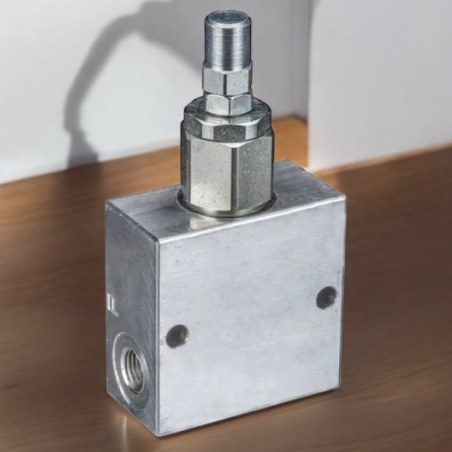

Pressure Relief Valve Walvoil VMP/B/L
92 $
Product ID: 1351
Order number
Direct operated pressure relief valve.
Version with conical seat.
Adjustment device: grub screw with lock nut and cap nut.
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information
 |
 |
Scheme:
 |
The pressure relief valve, also known as the maximum pressure valve or safety valve, has the task of limiting the pressure in a system.
It therefore protects the components and pipes from being subjected to a load above the maximum system pressure.
When the specified pressure is reached, the initially closed valve opens and discharges the excess volume flow from port P to port T into the tank. The pressure relief valve described here has a conical seat. The advantages of this design lie in the absolute tightness and the fast response behavior.
Directly controlled pressure relief valves operate depending on the volume flow. Due to their design, these valves do not open precisely at the set pressure.
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 18 $ |
| 10 | 8% | 73 $ |
| 20 | 15% | 275 $ |
