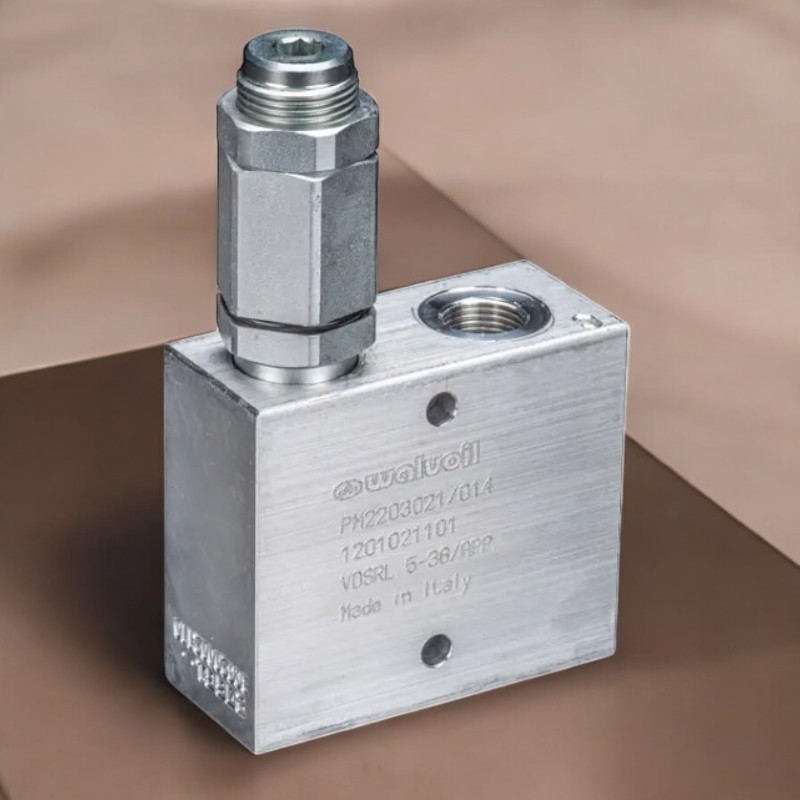

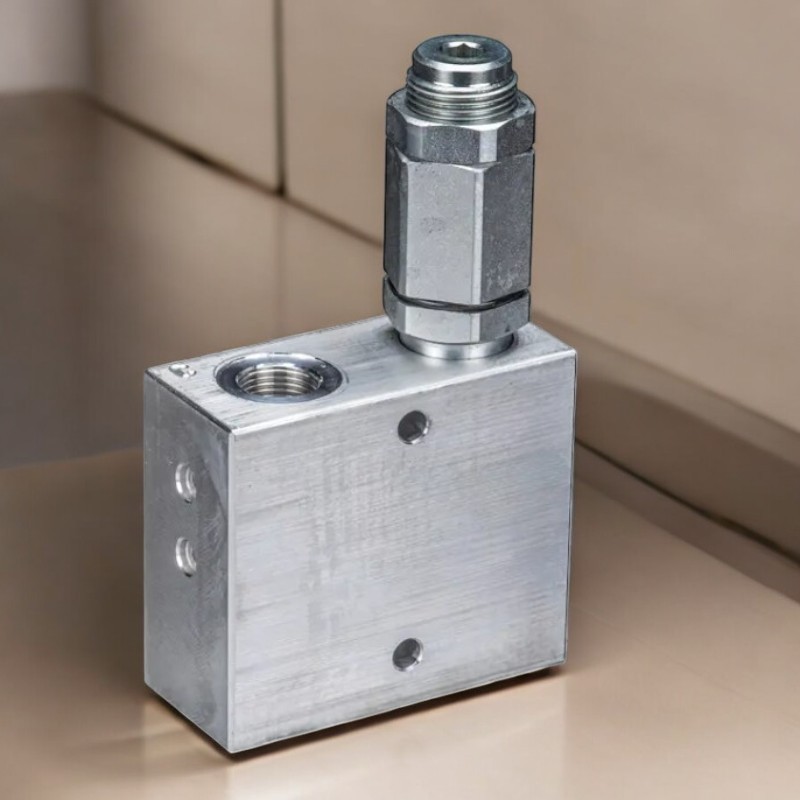

Pressure Sequence Valve Compensated Walvoil VDSRL 725,19–3190,8 PSI
176 $
Product ID: 1369
Order number
Pressure sequence valve direct operated and pressure compensated
Adjustment device: grub screw with lock nut
Opening pressure independent of pressure in port "C"
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information

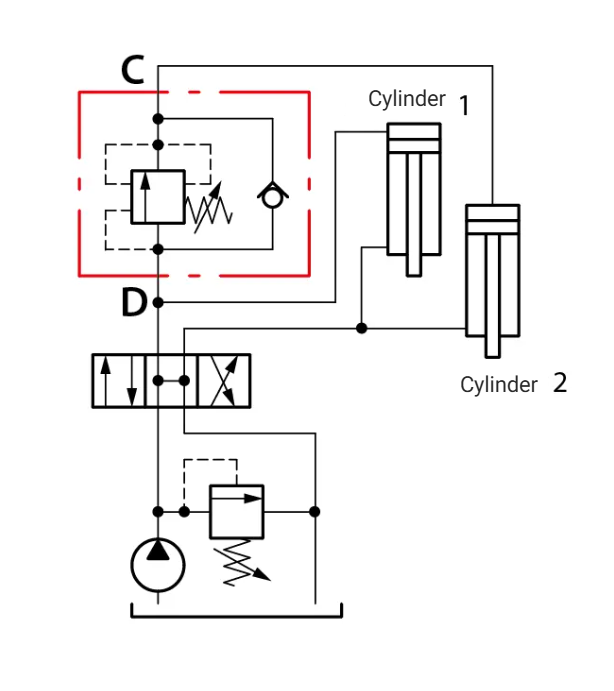

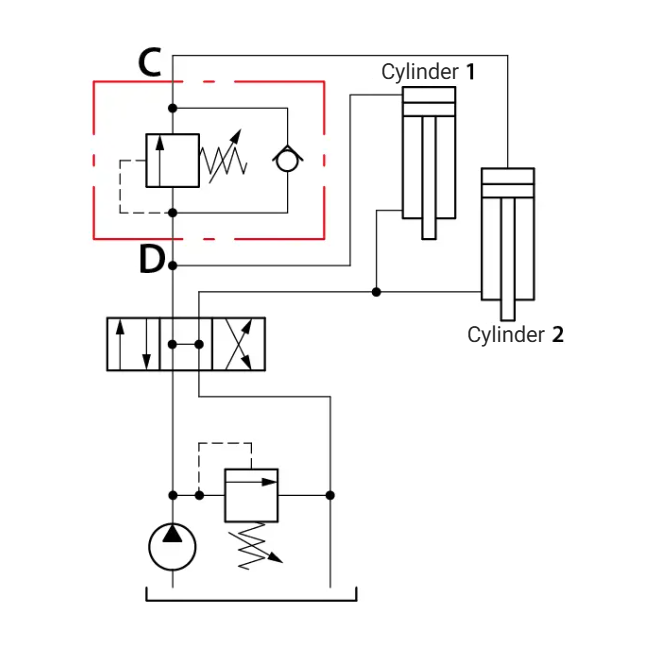

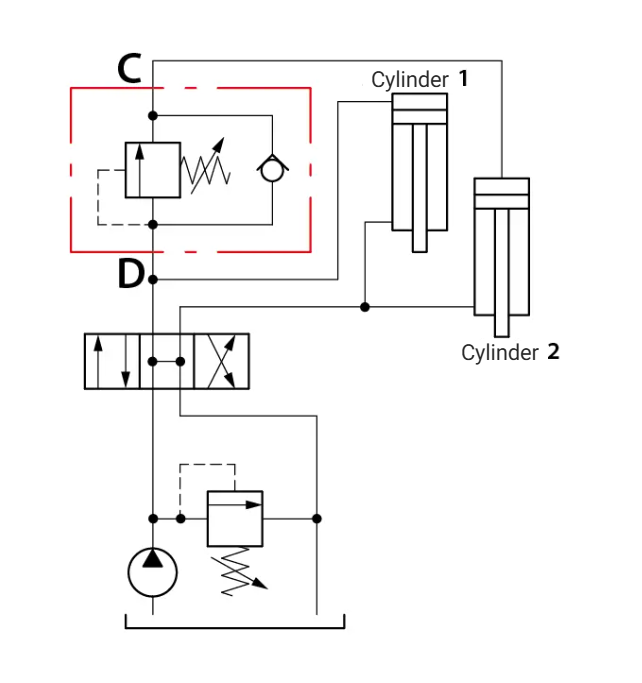

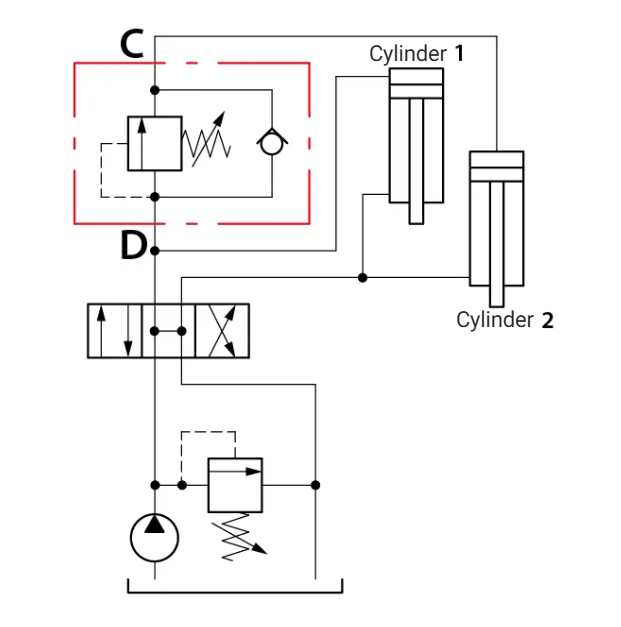

Pressure sequence valves are mainly used for sequence control
of hydraulic cylinders. In the example opposite, this means that cylinder 2 is only extended when the pressure in cylinder 1 reaches the value set on the valve. A bypass non-return valve is installed to ensure an unimpeded return flow.
As the valve has a pressure-balanced piston, the pressure setting is independent of the back pressure in cylinder 2.
The valve is preferably used in applications in which a consumer (cylinder) requires a lower pressure.
 |

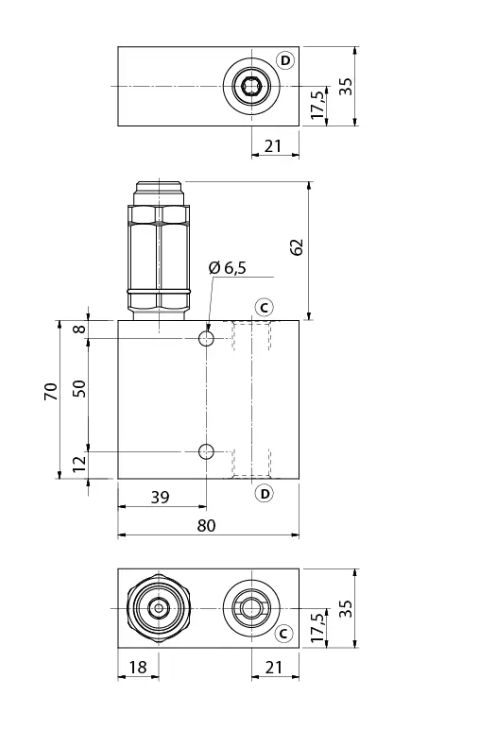

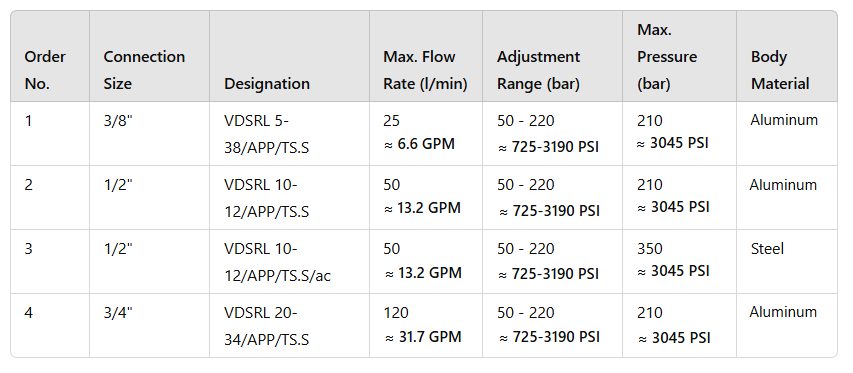

Order 1 schemes:
 |
 |

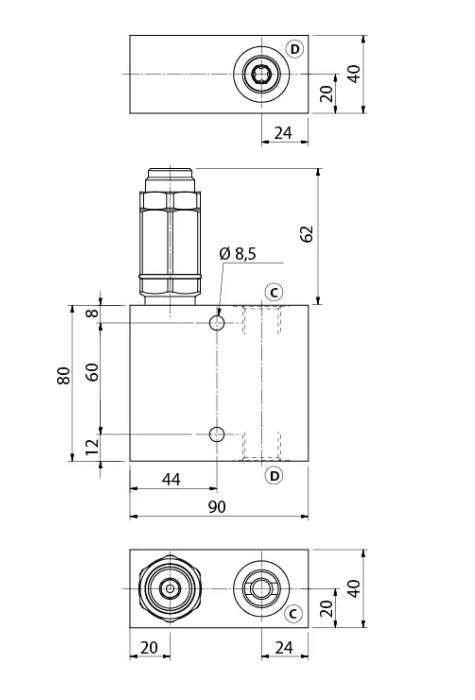

Order 2 schemes:
 |
 |

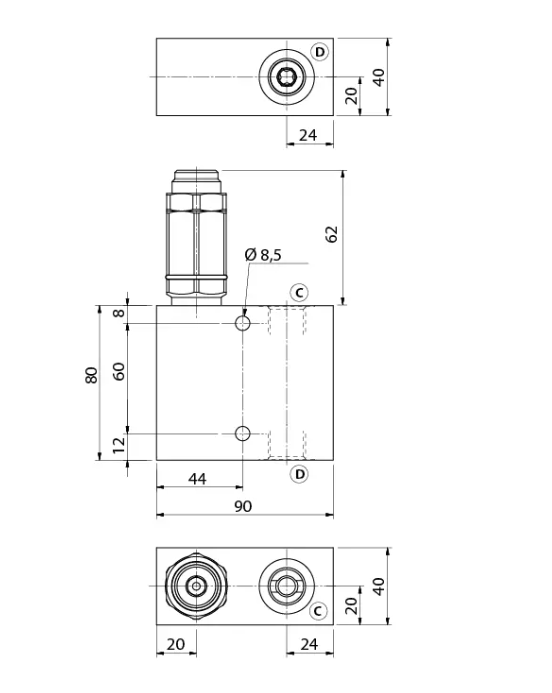

Order 3 schemes:
 |
 |
Order 4 schemes:
 |
 |
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 35 $ |
| 10 | 8% | 141 $ |
| 20 | 15% | 527 $ |
