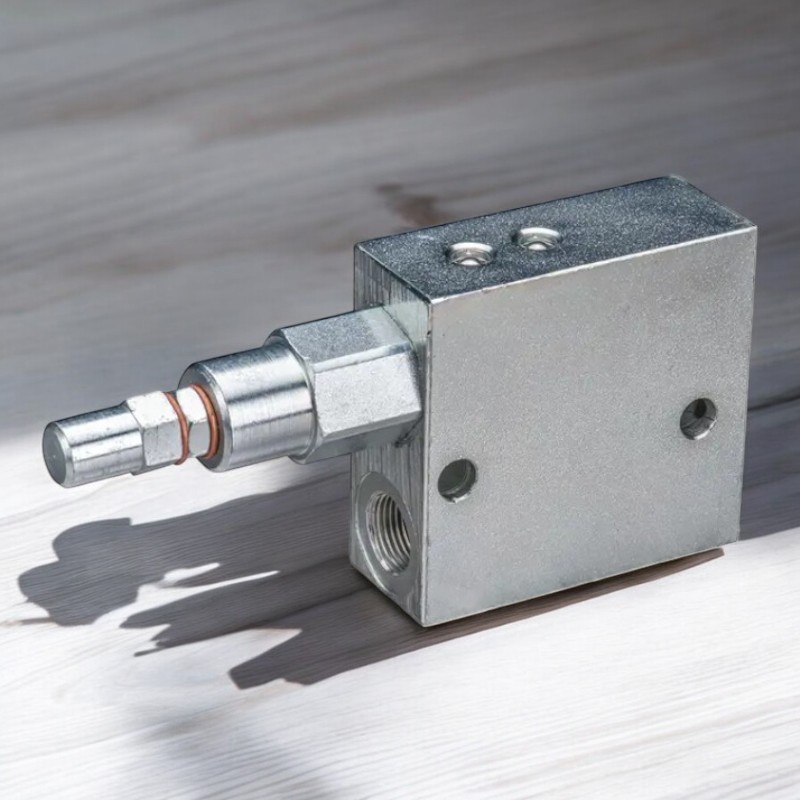

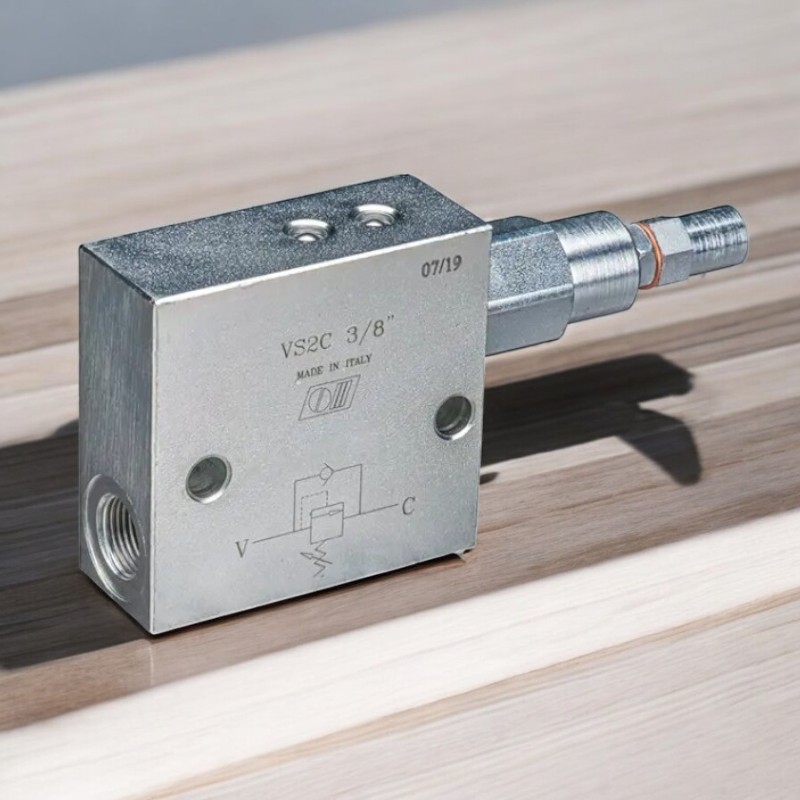

Pressure Sequence Valve VS2C
68 $
Product ID: 1370

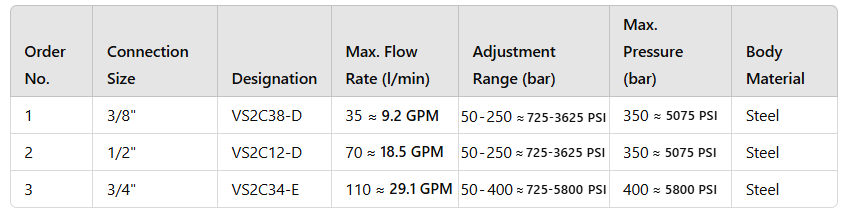

Order number
Pressure sequence valve direct operated
Adjustment device: grub screw with lock nut and cap nut
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information

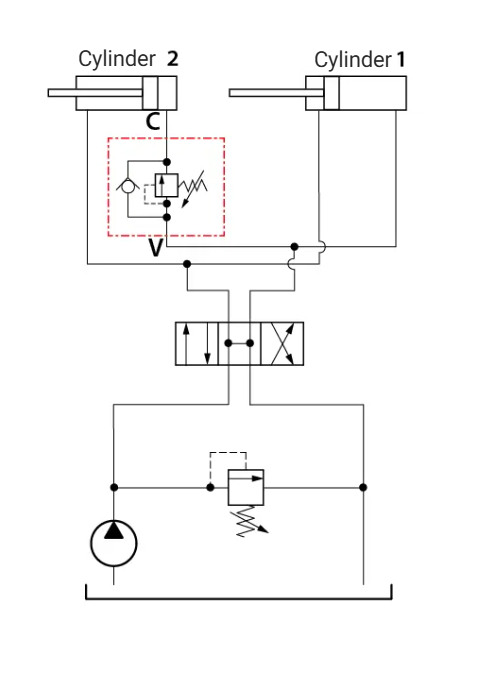

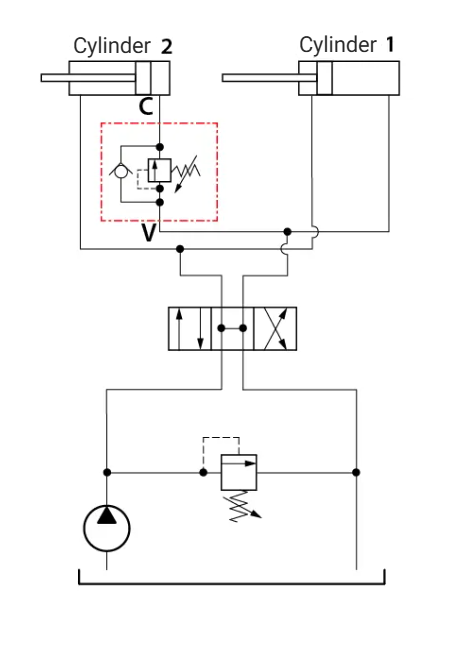

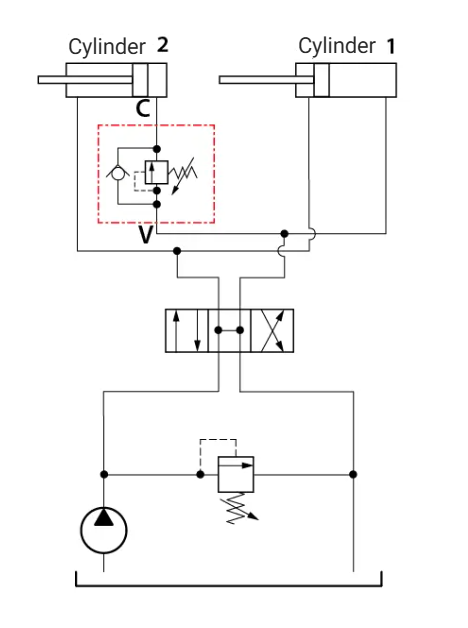

Pressure sequence valves are mainly used for sequence control of hydraulic cylinders. In the example opposite, this means that cylinder 2 is only extended when the pressure in cylinder 1 reaches the value set on the valve. A bypass non-return valve is installed to ensure an unimpeded return flow.
As the valve does not have a pressure-balanced piston, the load pressure of cylinder 2 must be added to the set pressure to set the opening pressure. The valve is preferably used in applications in which a consumer (cylinder) requires a lower pressure.
 |

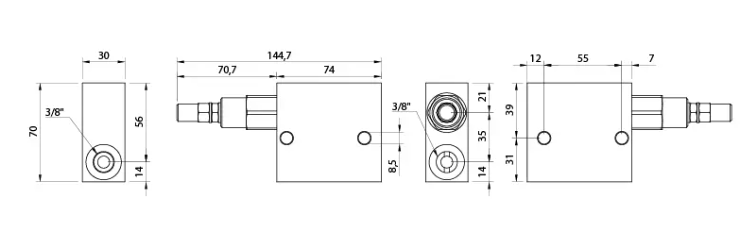

Order 1 schemes:
 |
 |

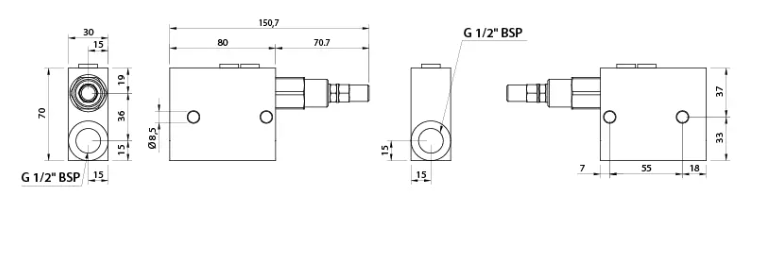

Order 2 schemes:
 |
 |

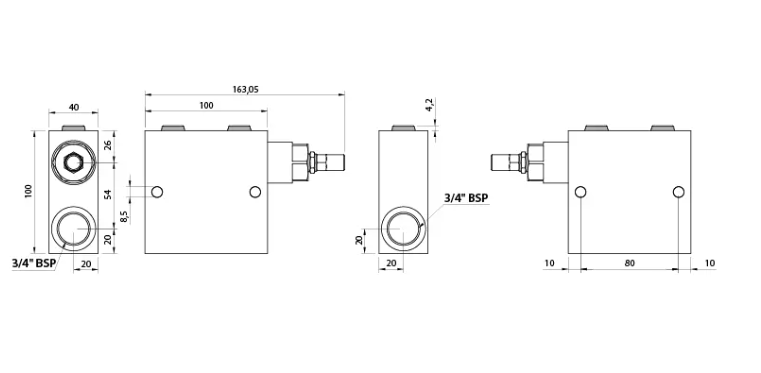

Order 3 schemes:
 |
 |
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 14 $ |
| 10 | 8% | 54 $ |
| 20 | 15% | 204 $ |
