Proportional Valve Walvoil DPX50 4 Functions

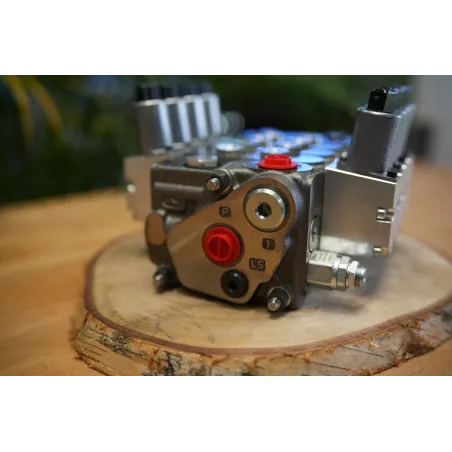

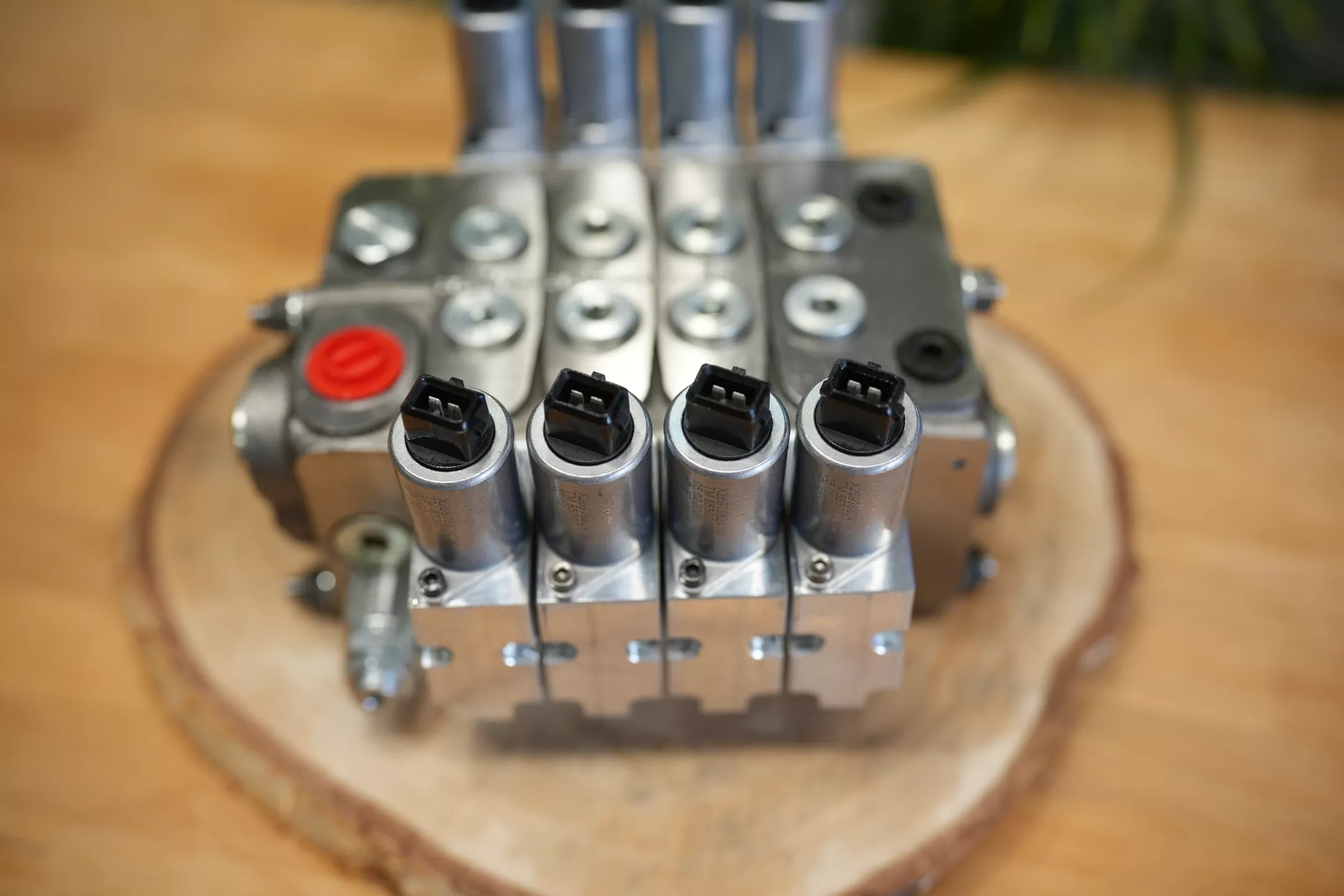

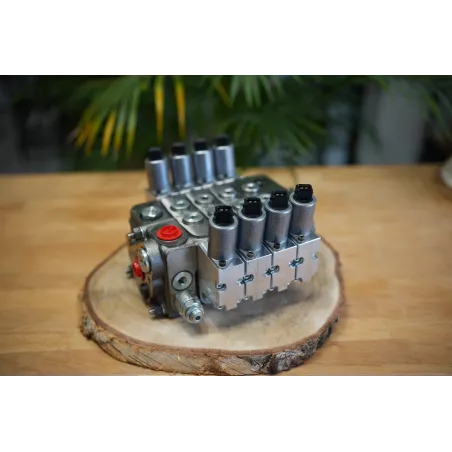

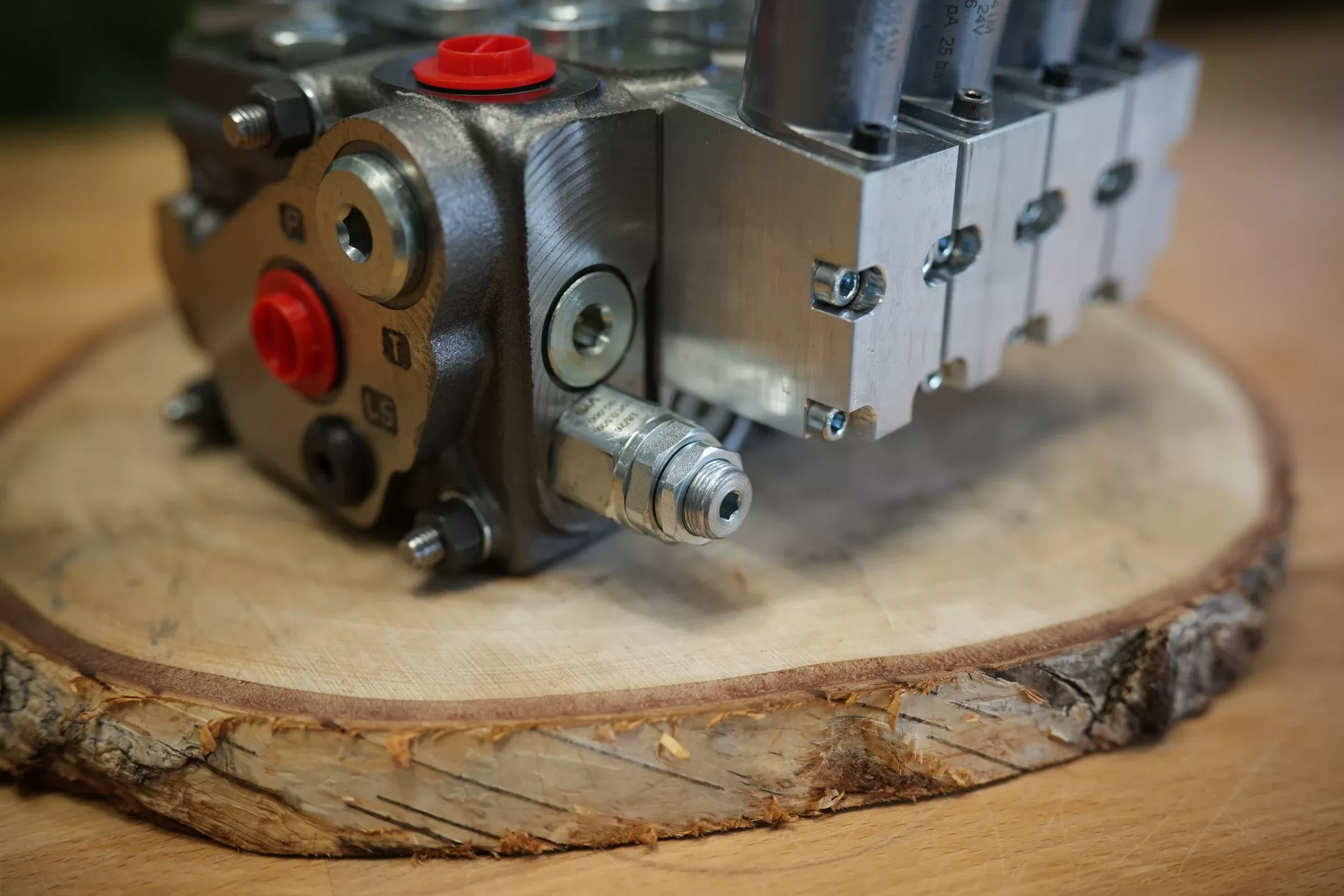

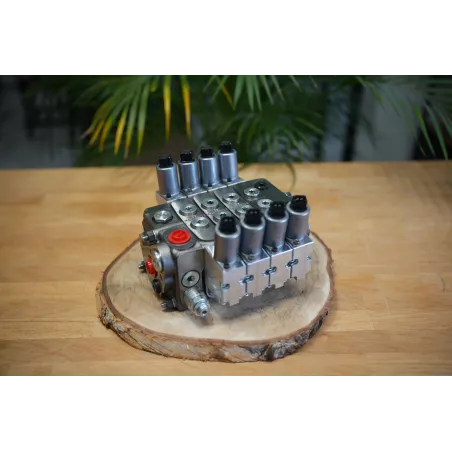

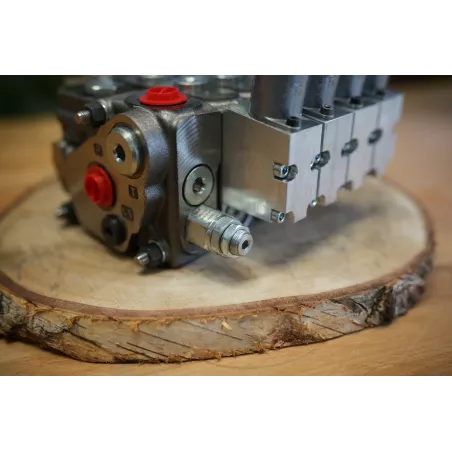

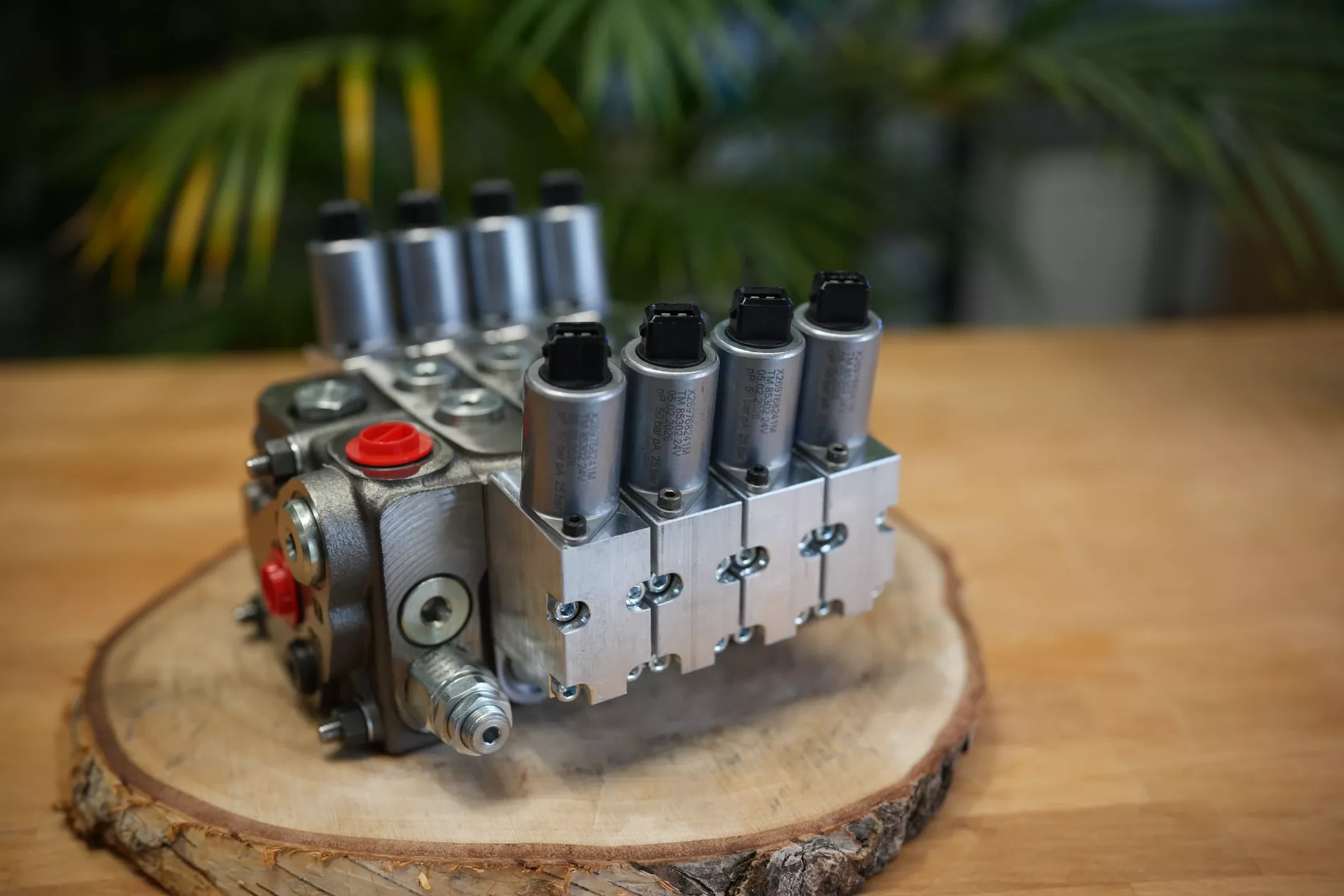

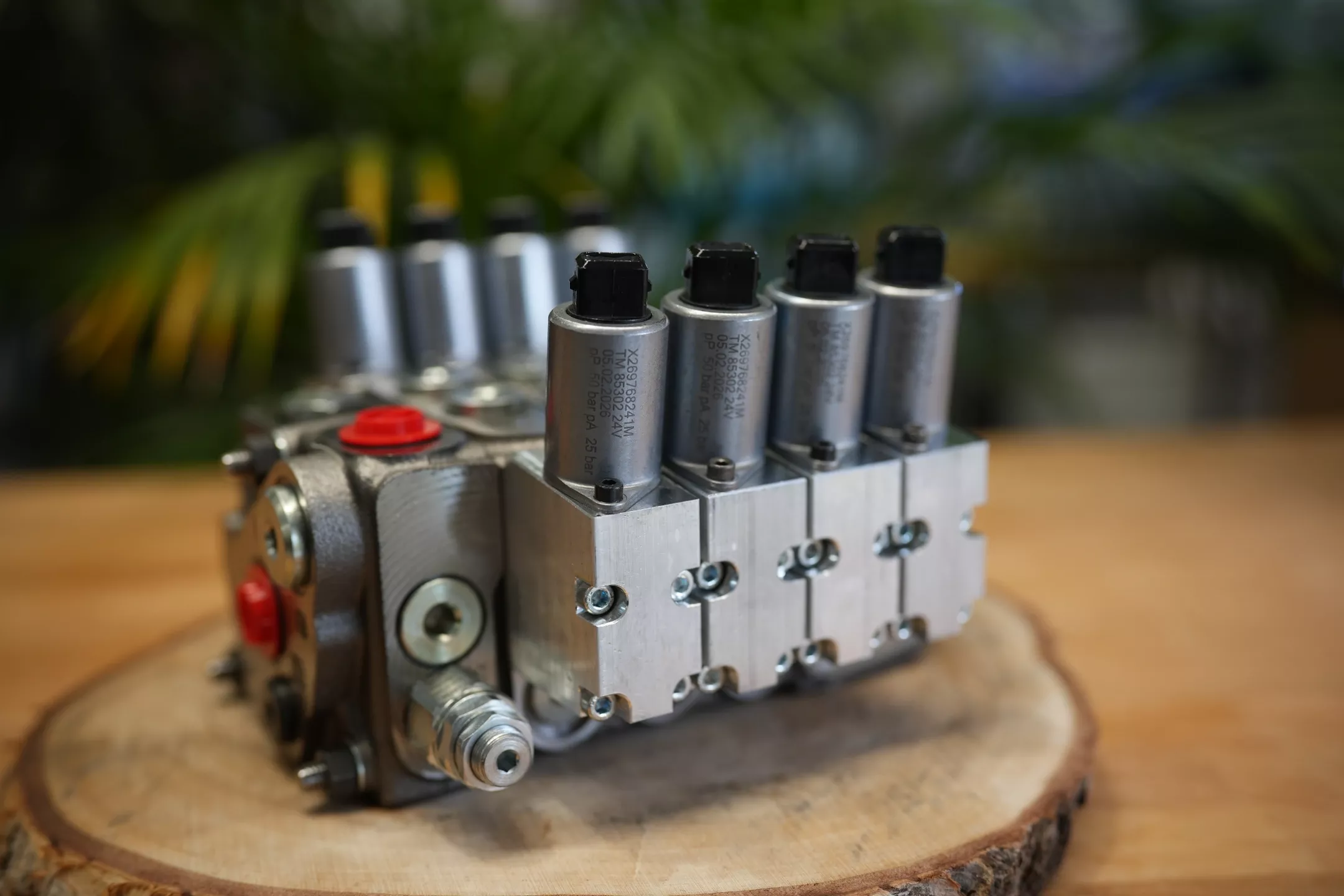

Name: Proportional Valve Walvoil DPX50 4 Functions
Brand: Walvoil
SKU: 997
Price: 2620 USD
Availability: InStock

2,620 $

Category Hydraulic Valves And Monoblocks Brand Walvoil In stock 10 Items

Product ID: 997

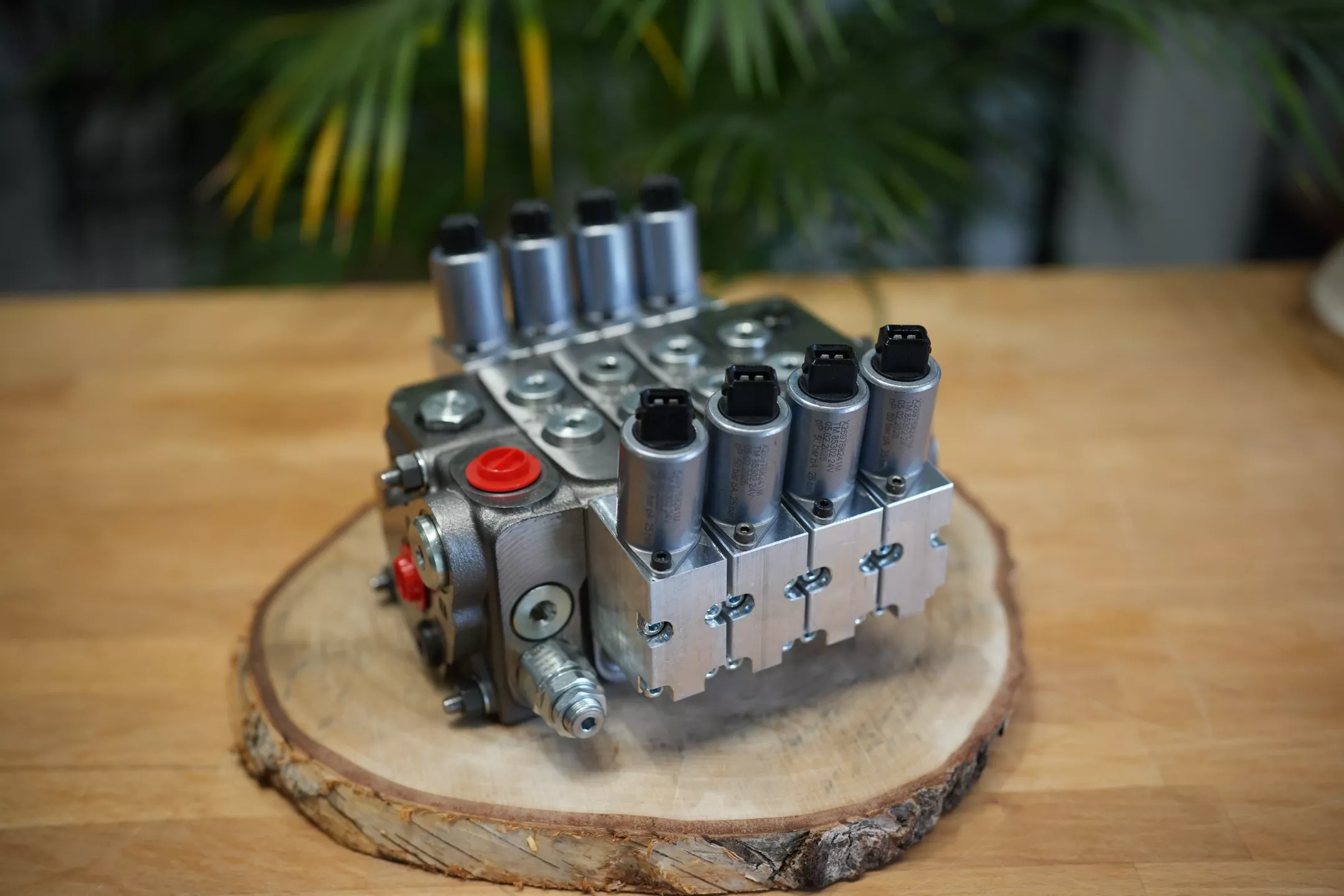

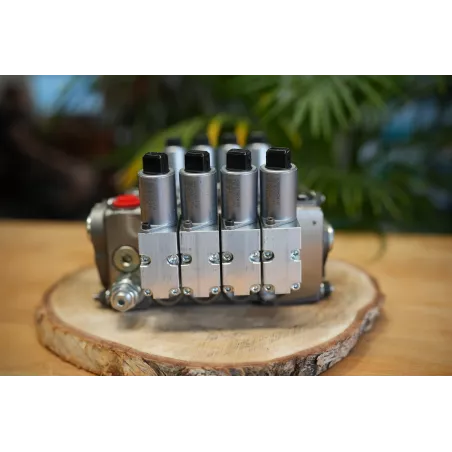

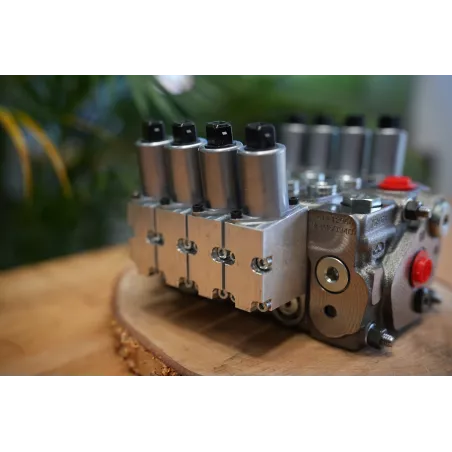

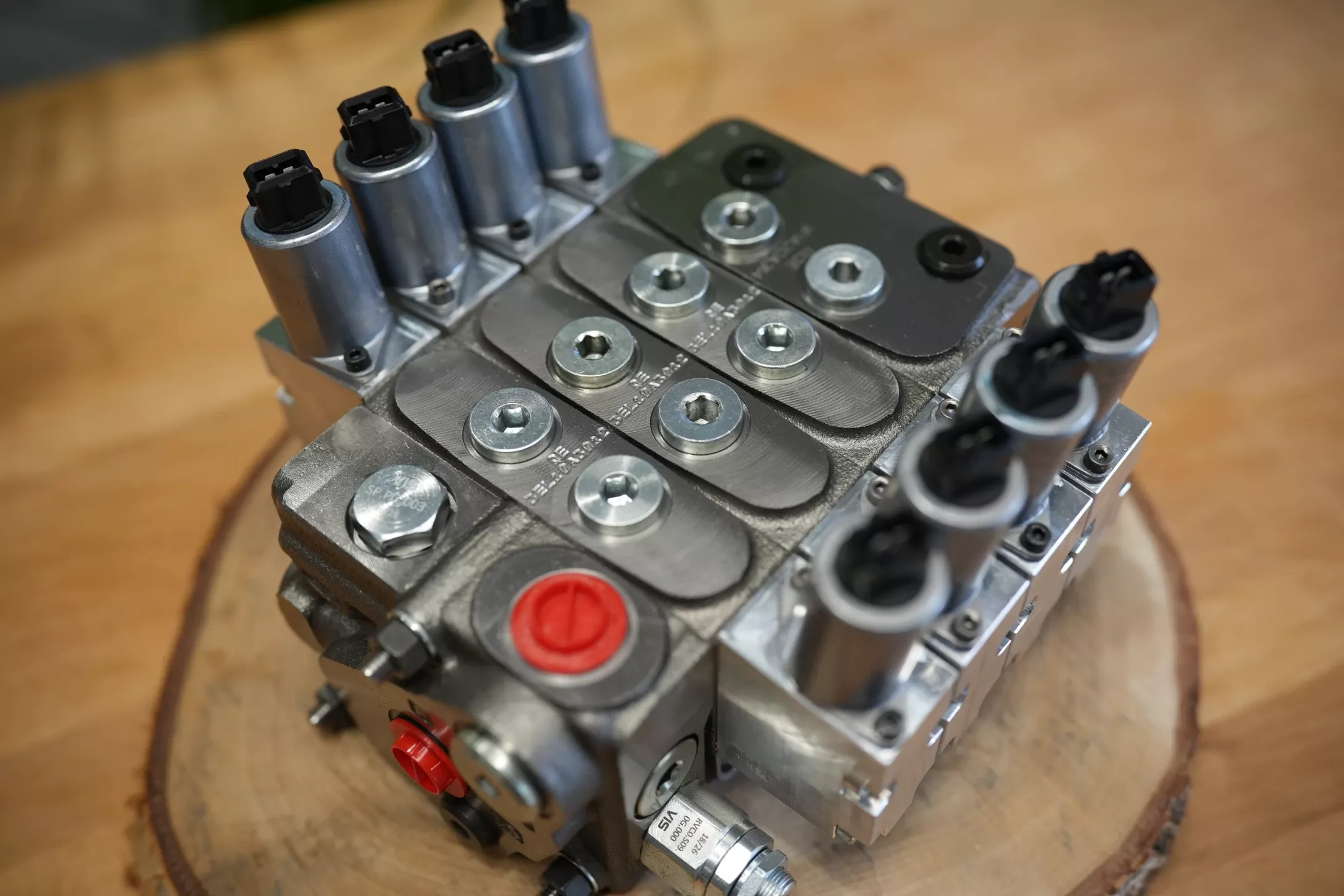

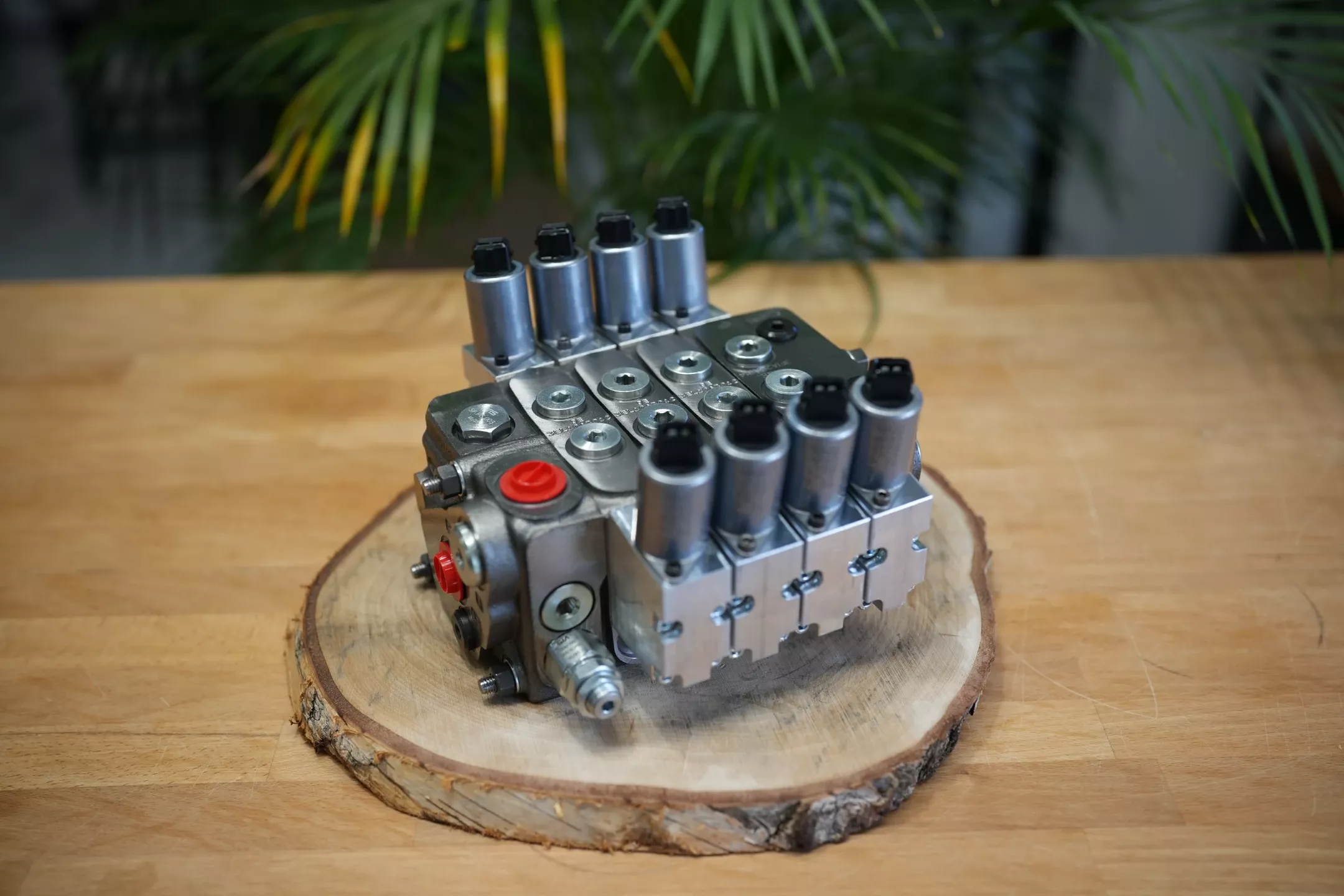

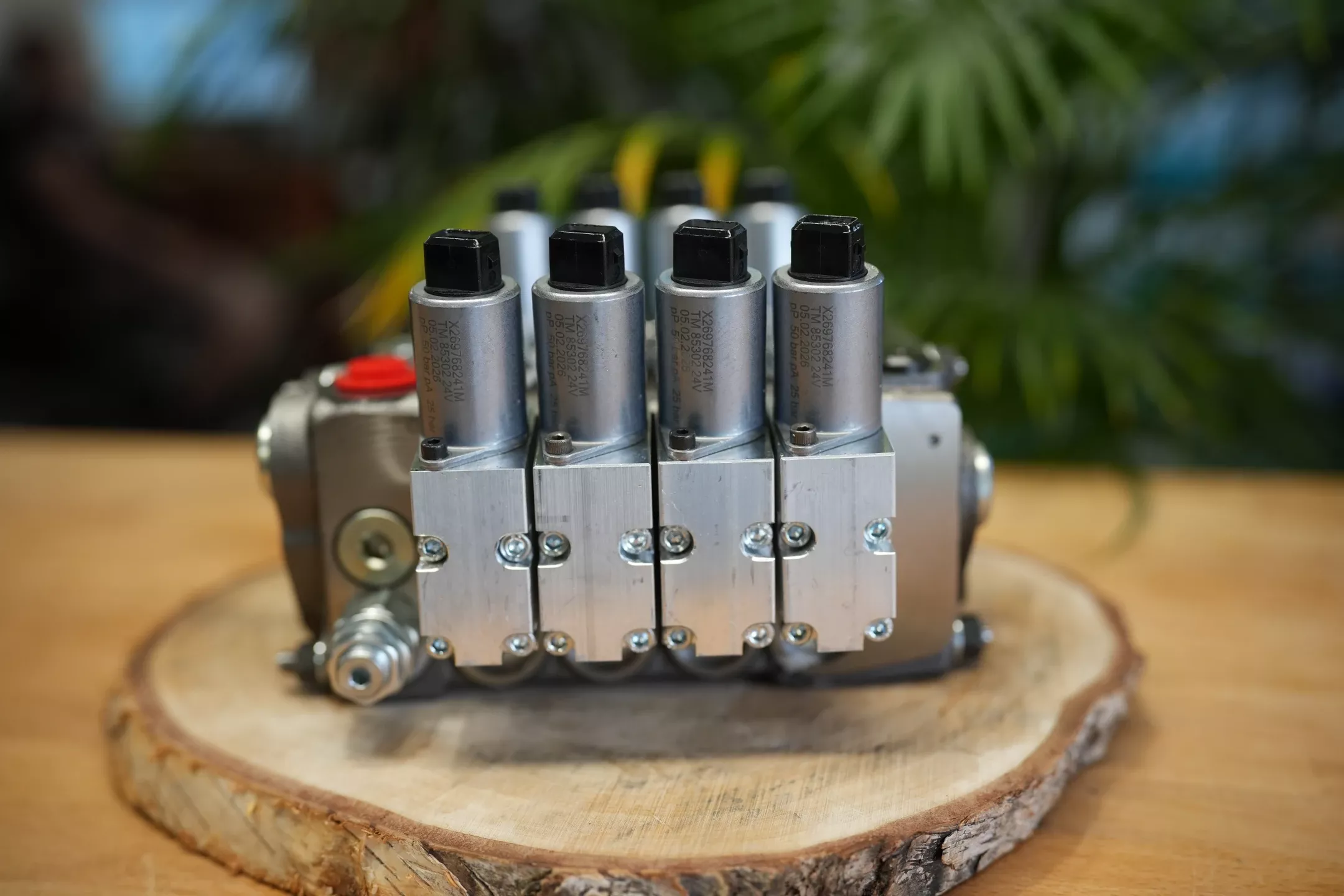

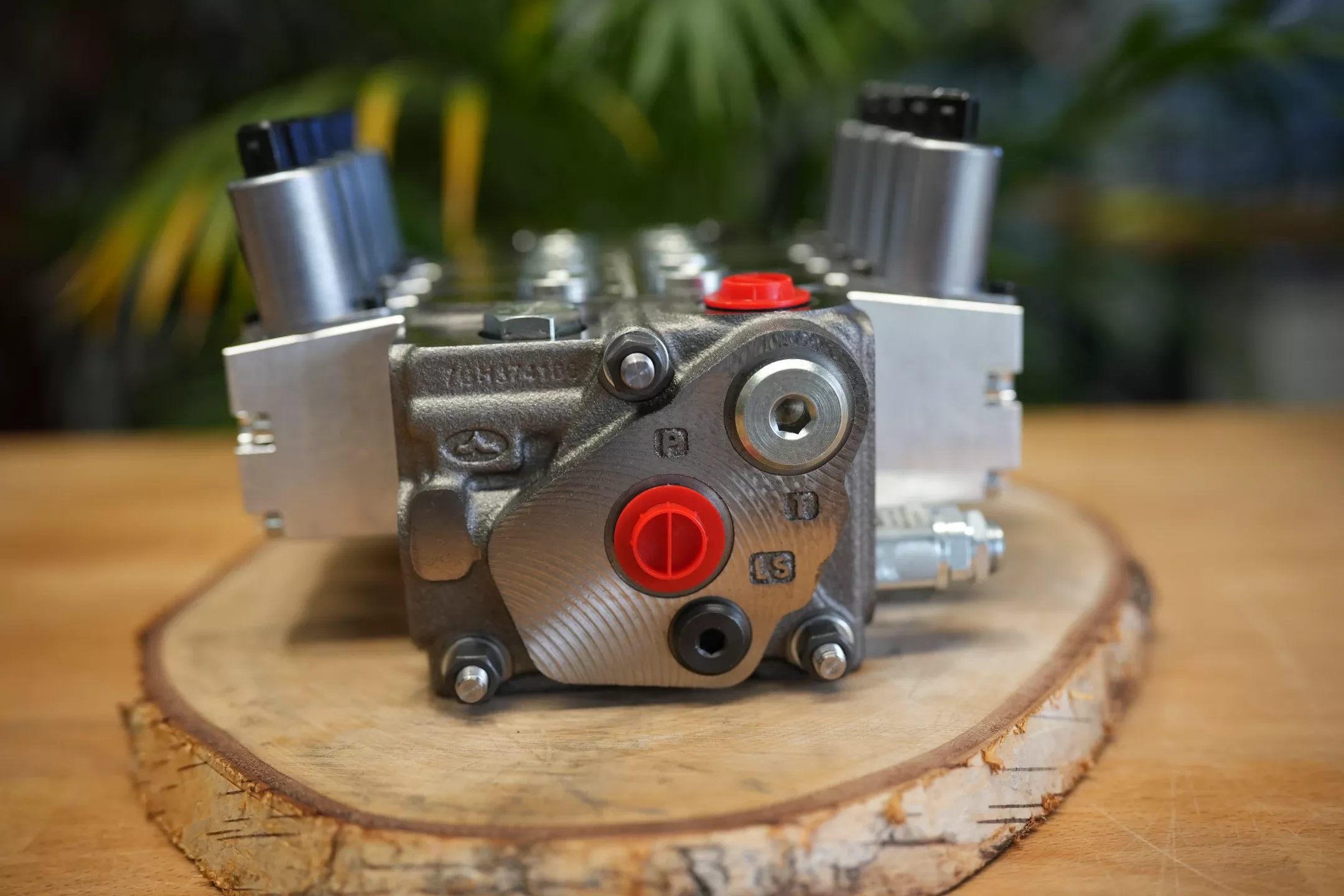

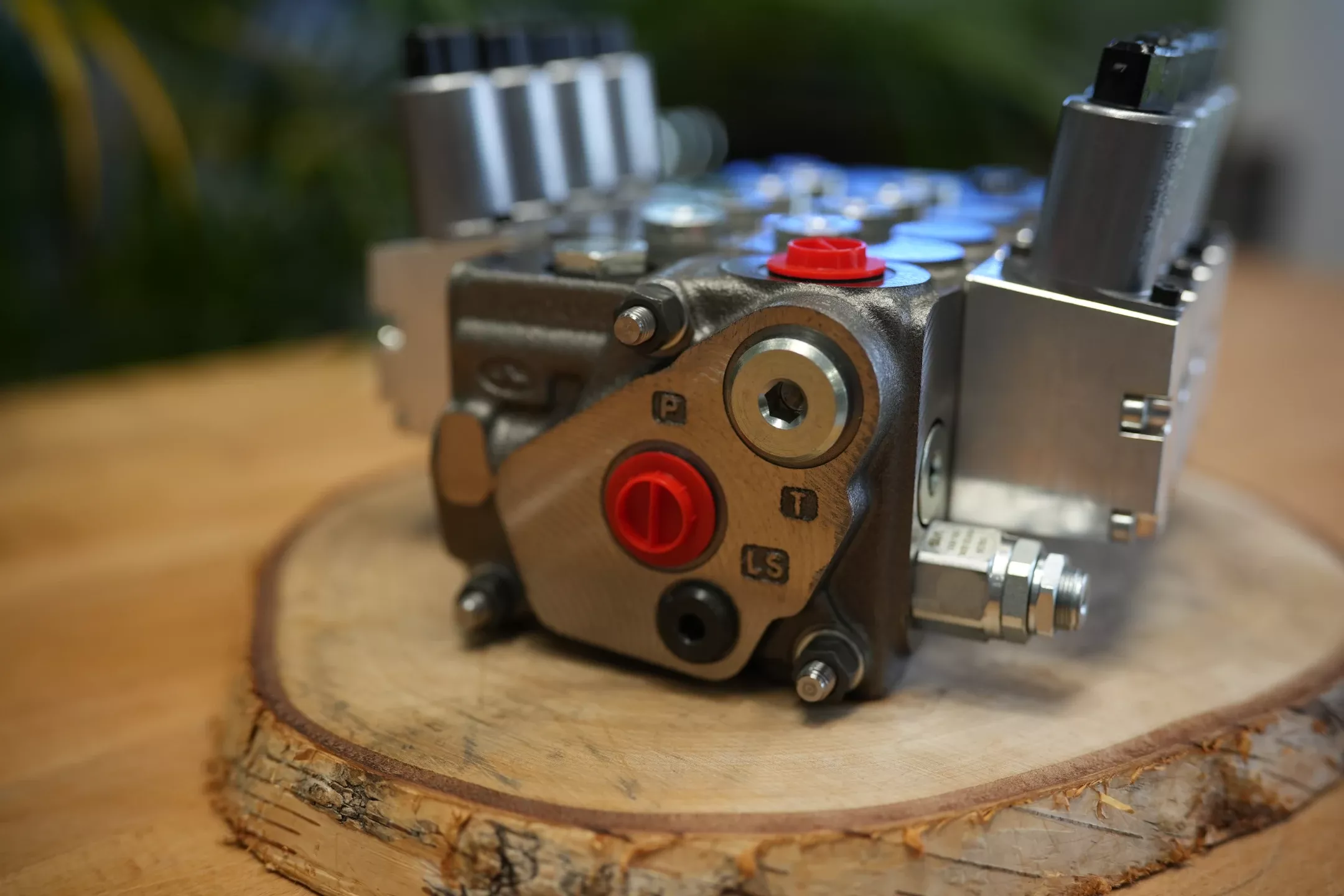

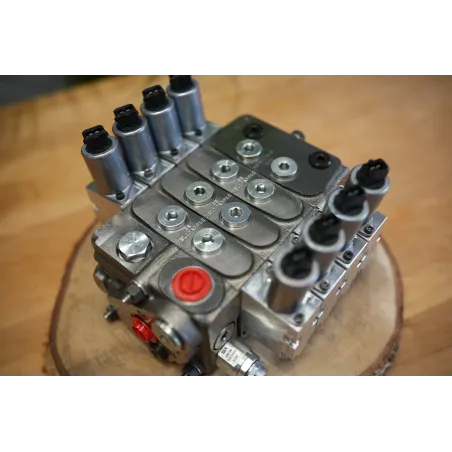

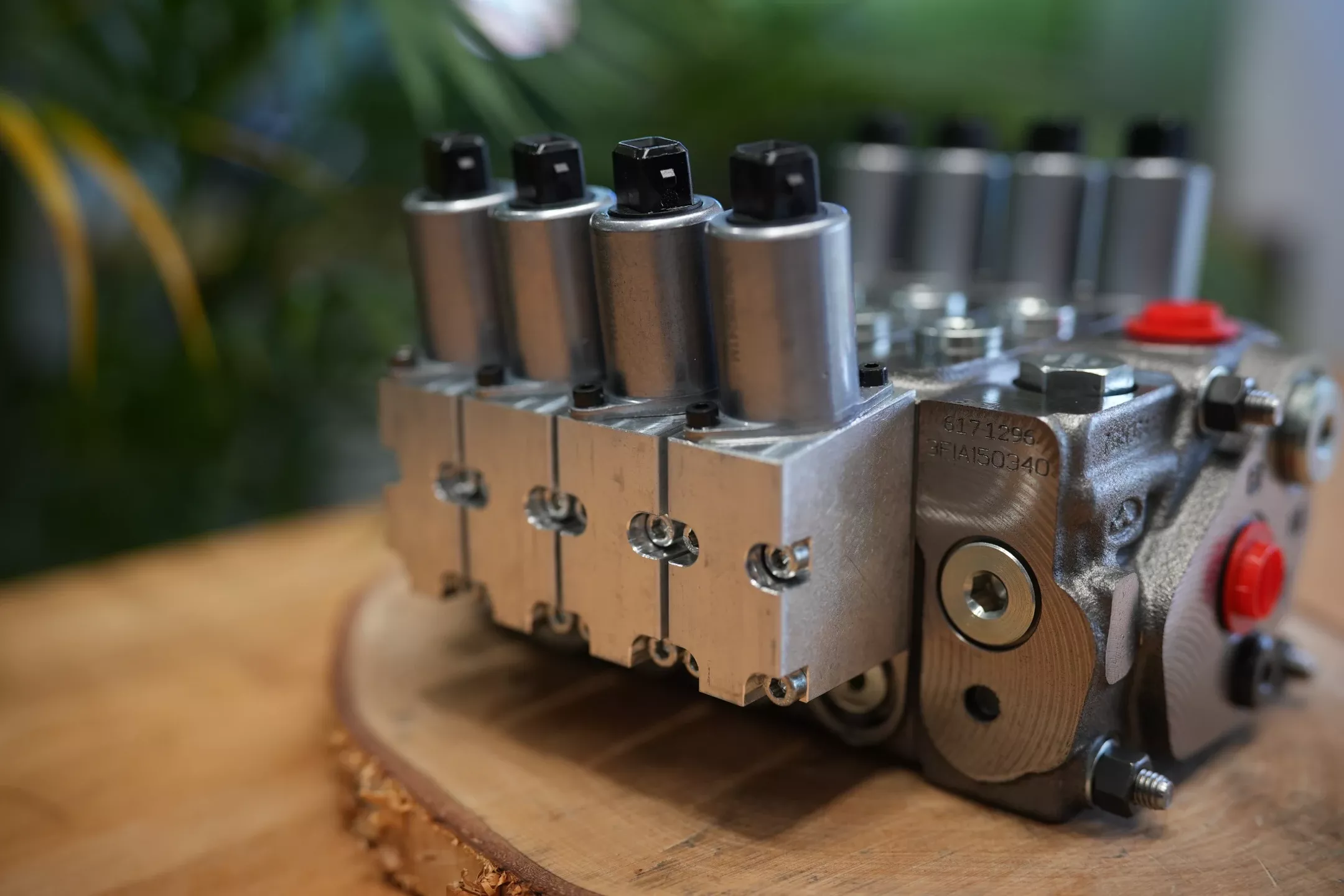

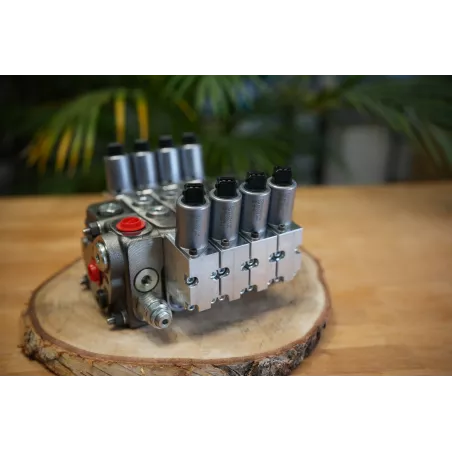

Hydraulic Valve Walvoil DPX 050 12/24V with 4 Proportional Sections, Open Center. The valve includes a post-compensation section.

This valve is configured for the most popular machine settings, supporting up to 4 standard crane functions. If you require a different dedicated configuration, we can customize it to meet your needs, including variations in spools, voltage, the number of sections, anti-shock valves, connectors, etc. The relief valve can also be adjusted as required. Spool type and flow can be individually selected to suit your application. Please send us a diagram, and we can assist further.

We provide technical support and are readily available via email, whatsup and telephone.

Feel free to contact us at shop@hydraulic-master.com or damian@hydraulic-master.com for any inquiries or assistance.

After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.

Proportional Valve Walvoil DPX50 4 Functions

2,620 $

Hydraulic Valve Walvoil DPX 050 12/24V with 4 Proportional Sections, Open Center. The valve includes a post-compensation section.

We provide technical support and are readily available via email, whatsup and telephone.

Feel free to contact us at shop@hydraulic-master.com or damian@hydraulic-master.com for any inquiries or assistance.

After placing an order, the flow and pressure can be fully adapted to the machine according to the customer's specific requirements.

Information

Hydraulic, sectional valve Walvoil DPX 050 with compensation, full proportional.

Directional valve of the DPX series and the most versatile and complete. Highly configurable and versatile for applications such as Miniexcavators, Aerial platform, Truck Mounted Cranes, Telehandlers, Agricultural and Forestry machines.

- Valve model for high pressure applications (HP), inspheroidal graphite cast iron

- Optional spool position sensors

- Valve configurations with high flow sections (HF)

- Special inlet sections designed for steering applications

- Synergy with the Walvoil electronic systems range

- Inlet sections with or without by-pass valve

- Manual, hydraulic and proportional electro-hydraulic controls

Dimensional data and performance:

Working conditions:

Technical specifications of default configuration:

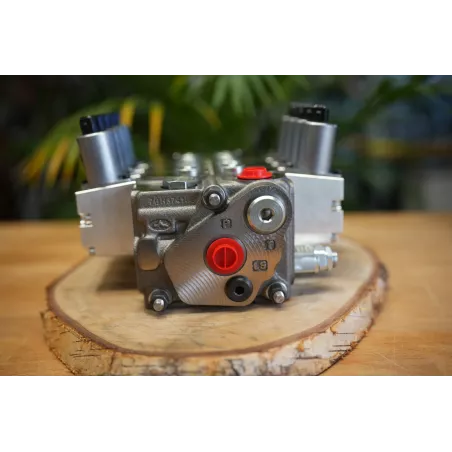

Inlet section: 32GPM 120l/min - Pmax 300 bar 4351psi Power supply port: 1/2" BPS, tank return port: 1/2" BPS

1st Slewing - Horizontal movement of the crane 50 L/min 13GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors

2nd Main lift 50 L/min 13GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors

3rd Jib - Horizontal bean extending from the crane 50 L/min 13GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors

4th Rotator 50 L/min 13GPM A+B closed, electro-hydraulic control on both sides with AMP-JPT or Deutsch connectors

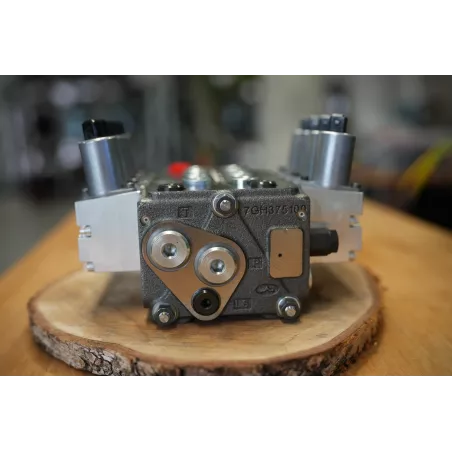

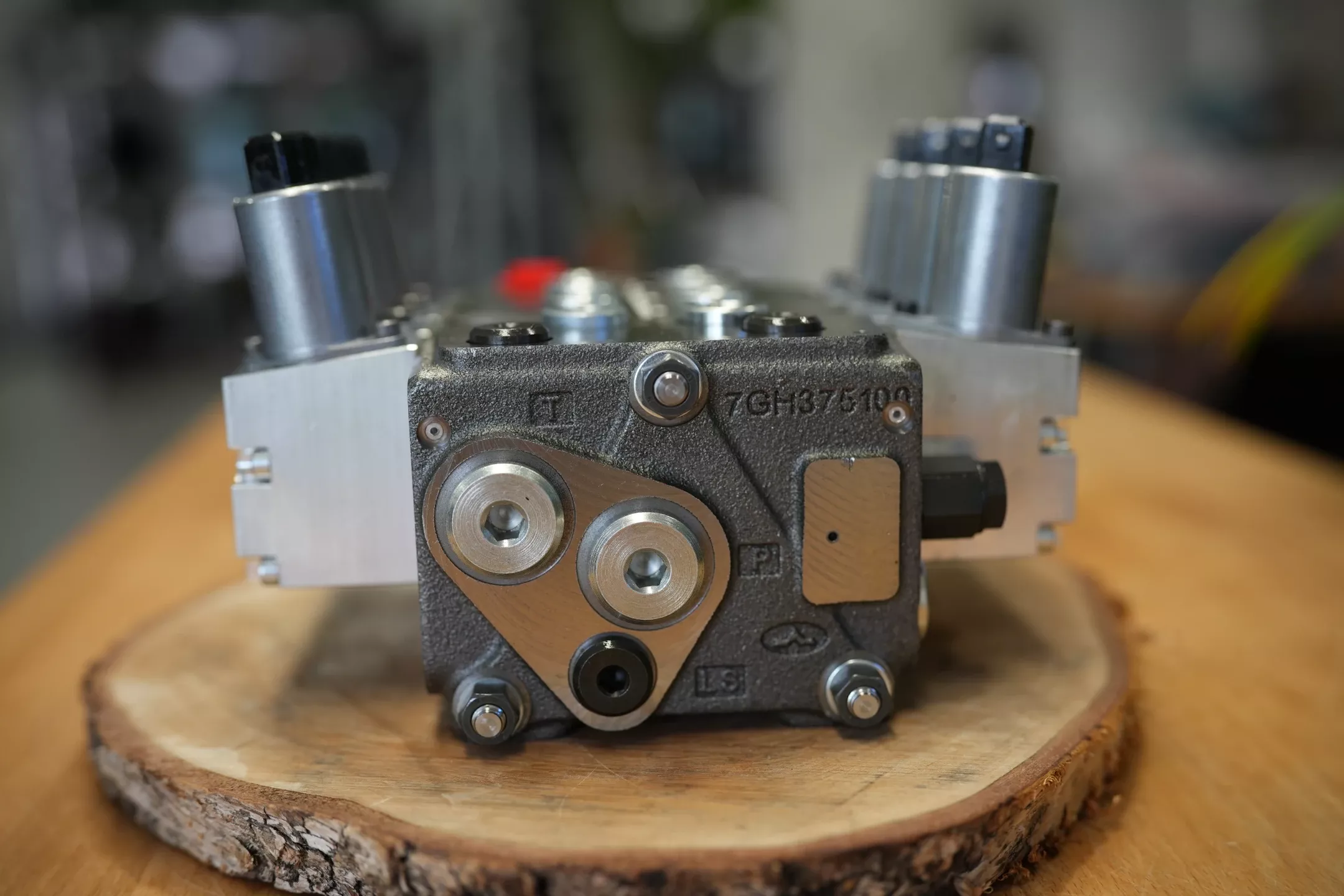

Outlet section: with the possibility of combining valves, with bleed valve (LS relief), with pressure reducing valve. Control connection "V" and drainage connection "L" closed. Side connections "T1", "P1", "LS1" closed. DBV fixed and sealed to 175 bar at 90L/min.

The kit works with a lot of application. For sure please contact with us.
