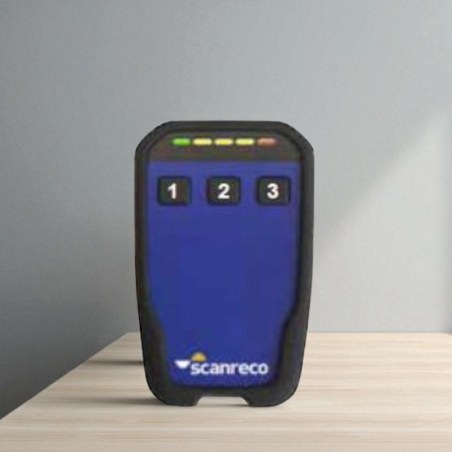

Scanreco Pocket Transmitters

Available in following configurations:

- 3 Buttons

- 4 Buttons

- 6 Buttons

- 8 Buttons

All models available with or without standard overlay (without requires the overlay to be ordered separately or in a system kit).

Programmable LEDs usable for feedback or operational status

- fixed color scheme (Green, Yellow, Yellow, Yellow, Red)

Technical information:

Protection category: IP67

Power supply: 3 x AAA batteries

Frequency band: 2.4 GHz

Operating range: > 100m / > ~330 ft

Operational temperature: -25°C to +70°C / ~-15°F to +160°F

Dimensions: (W x H x D): 67 x 115 x 38 mm / ~ 2.6 x 4.5 x 1.5 in Weight: 160 g / ~ 0.35 lbs. including batteries

3, 4, 6 or 8 one-step pushbuttons

Feedback to 5 light emitting diodes

Operational time: several months (depending on usage)

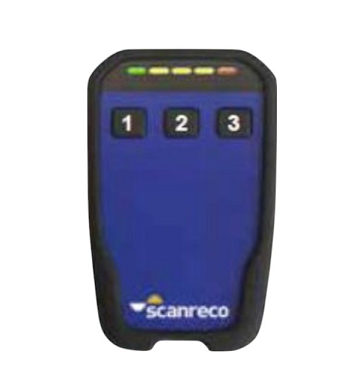

Order number: 1

HCU Pocket-03 G5 P3A;

Button print 1 - 2 - 3

Scanreco code: 49281

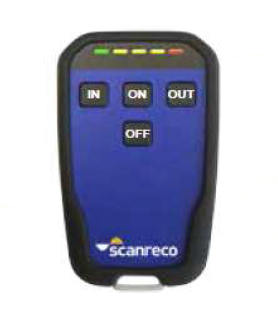

Order number: 2

HCU Pocket-04 G5 P4A;

Button print IN - ON - OUT - OFF

Scanreco code: 49282

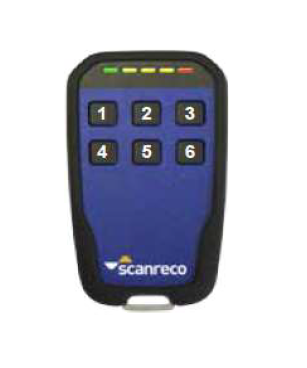

Order number: 3

HCU Pocket-06 G5 P6A

Button Print 1 - 2 - 3 - 4 - 5 - 6

Scanreco code: 49283

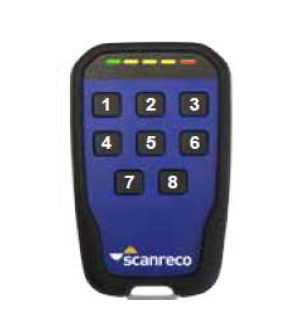

Order number: 4

HCU Pocket-08 G5 P8A

Button Print 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

Scanreco code: 49110

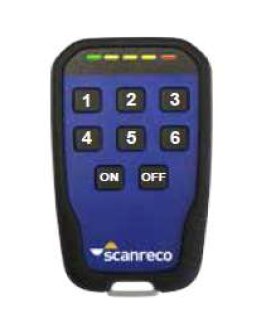

Order number: 5

HCU Pocket-08 G5 P8B

Button Print 1 - 2 - 3 - 4 - 5 - 6 - ON - OFF

Scanreco code: 49112

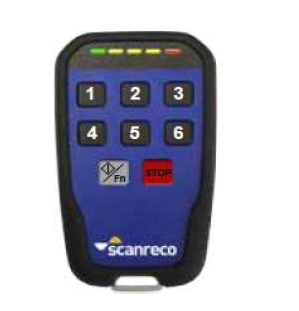

Order number: 6

HCU Pocket-08 G5 P8C

Button Print 1 - 2 - 3 - 4 - 5 - 6 - ON/Fn - STOP

Scanreco code: 49284
