Scanreco Receiver - G5-M19
3,093 $
Product ID: 1570
Order number
When ordering a receicer as a spare part for an existing system the application program configuration file
must be declared if the receiver should be delivered pre-configured!
Order number: 1 CU Digital I/O G5 G5 CU M19A
Scanreco code: 5001
Order number: 2 CU Digital I/O G5 G5 CU M19E
Scanreco code: 5010
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information
The G5-M19 has 19 MOSFET outputs, 14 of these can be configured as digital inputs. Each output can handle the maximum output of 3A and the total load of the system is limited to 10A. The connections of the receiver unit are protected against short circuits and transients. Connections are made via two 12-pin Deutsch connectors. Protection category: IP67
The Scanreco G5 system is based on advanced microprocessor technology that works even in the most difficult conditions. These receivers are the ideal choice for mobile machines with hydraulic drives. Since they operate in the 2.4 GHz band, they are also a good choice for global manufacturers.
Each Scanreco system has a unique identification code, thanks to which the receiver communicates only with paired transmitters. No other transmitter or product can accidentally activate the receiver. The system is highly resistant to electromagnetic and radio interference. All G5 receivers use automatic frequency hopping technology, making them resistant to interference from other devices on site.

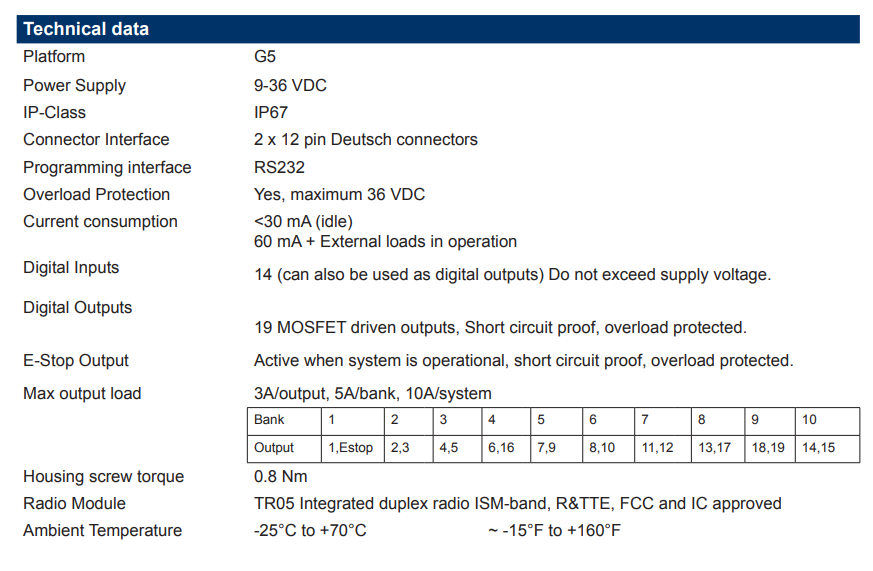

Technical information:
Protection category: IP67
Supply voltage: 12/24 V DC
Frequency band: 2.4 GHz
Operating temperature: -25°C to +70°C / ~-15°F to +160°F
Number of digital outputs: ≤ 19
Number of digital inputs: ≤ 14
Fieldbus interface: –
Dimensions (W x H, including antenna, D): 127 x 186 x 57 mm ~5.0 x 7.3 x 2.2 inches
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 619 $ |
| 10 | 8% | 2,474 $ |
| 20 | 15% | 9,279 $ |
