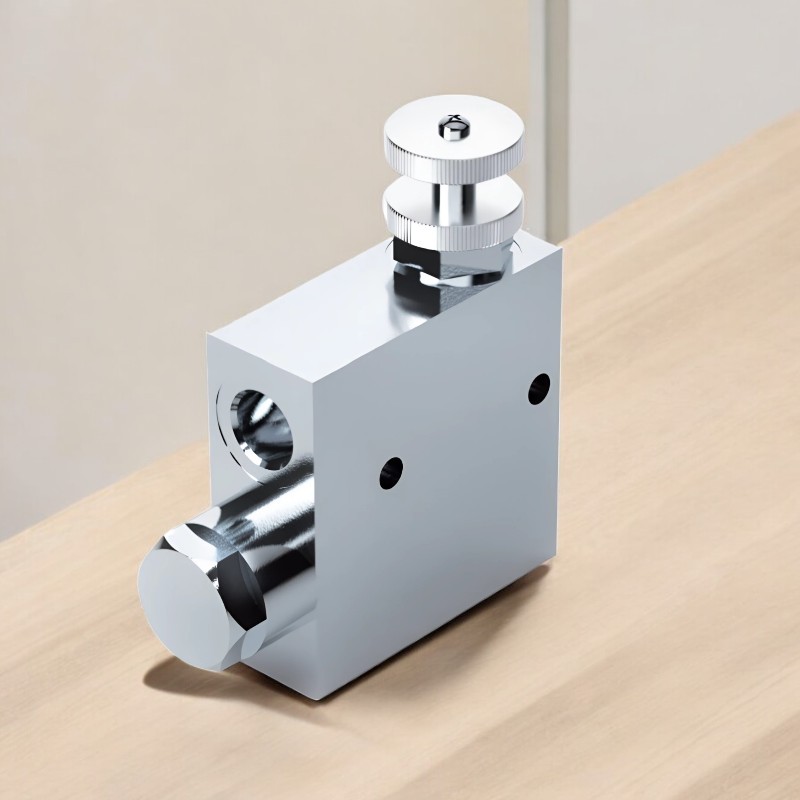

Three Ways Flow Control Valve With Excess To Tank RFP3 5076 PSI
158 $
Product ID: 1389
Order number
3-way flow control valve residual oil to tank
Maximum pressure: 350bar (5076 psi)
Pressure compensated
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information
Scheme:
 |
Order 1
Connection size: 3/8” BSP
Max. Inlet volume flow: 60l/min
Max. regulated volume flow: 50l/min
Order 2
Connection size: 1/2” BSP
Max. Inlet volume flow: 80l/min
Max. regulated volume flow: 60l/min
Order 3
Connection size: 3/4” BSP
Max. Inlet volume flow: 120l/min
Max. regulated volume flow: 100l/min
The valve keeps the volume flow in port C | P constant regardless of the load pressure and input volume flow. The residual oil flow in T | T is discharged to the tank without pressure. Back pressure in T | T may influence the controlled flow rate in C | P. The valve can only be used for flow in one direction.
The additional use of a pressure relief valve between the flow control valve and the consumer is essential.
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 32 $ |
| 10 | 8% | 127 $ |
| 20 | 15% | 475 $ |
