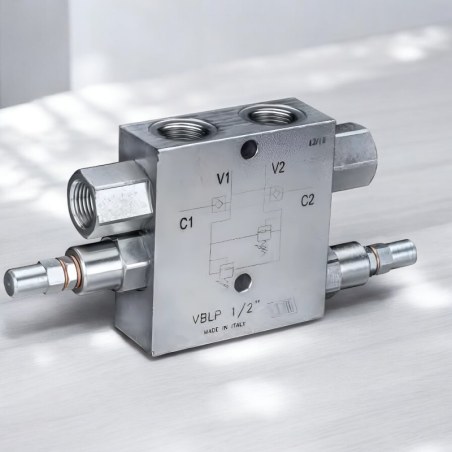

DBV + Double-Acting Pilot-Operated Check Valve 5076,32 Psi
241 $
Product ID: 1356
Order number
Combined double pressure relief valve + double-acting pilot-operated check valve.
Adjustment lock with lock nut and cap nut.
Maximum pressure: 350 bar (5076,32 psi)
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information
The combination valve consists of a double-acting pilot-operated check valve combined with two pressure relief valves.
The function of the pilot-operated non-return valve is to hold the consumer in position.
The pressure relief valves limit the inlet pressure to the consumer.
 |
 |

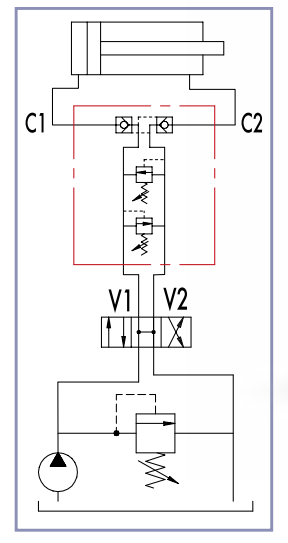

Scheme:
 |
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 48 $ |
| 10 | 8% | 193 $ |
| 20 | 15% | 723 $ |
Do you need help?
Looking for a non-standard product?
We are able to prepare a customized solution especially for you.
