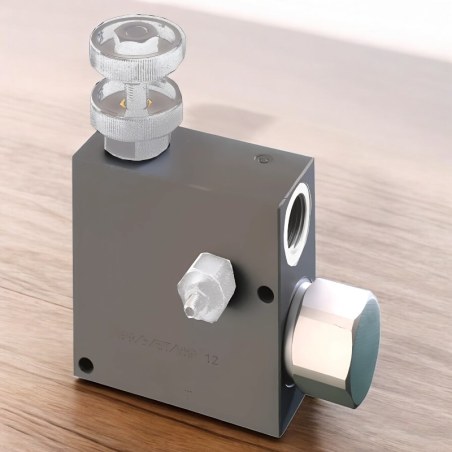

Flow Control Pressure Compensated Valves 3 Way, With Relief Valve VPR/3/ET/VMP
294 $
Product ID: 1392
Order number
3-way flow control valve with integrated DBV residual oil flow to tank VPR/3/ET/VMP
The valve keeps the flow rate in port C constant regardless of the load pressure and input flow rate. The residual oil flow in T is discharged to the tank without pressure.
The integrated pressure relief valve enables the consumer at port C to be protected.
Back pressure in T may influence the regulated flow rate in C.
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information
 |

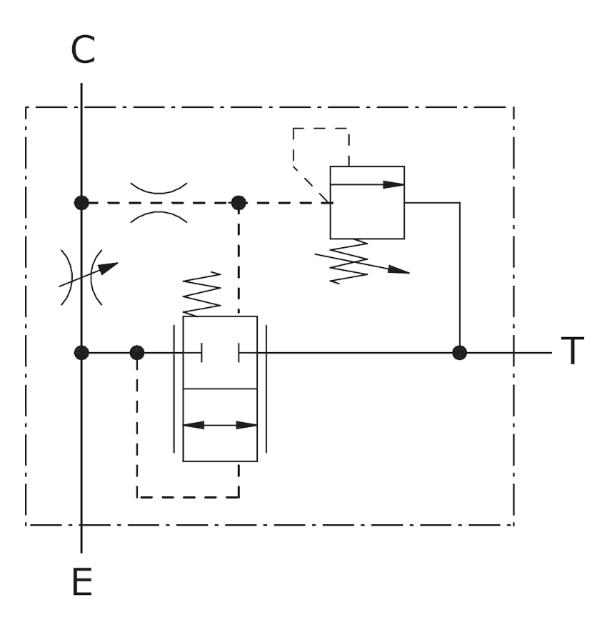

Scheme:
 |
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 59 $ |
| 10 | 8% | 236 $ |
| 20 | 15% | 883 $ |
