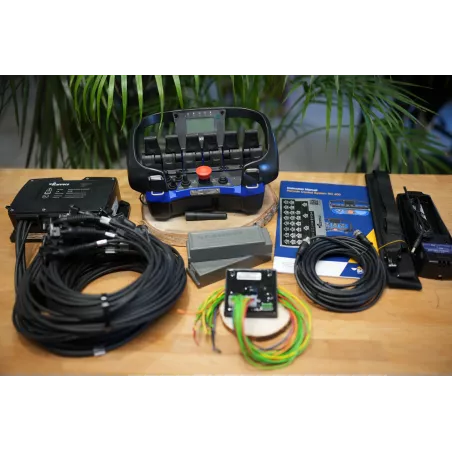

Radio Remote Scanreco G2B RC 400 6 Functions With Display And Main Boom Pressure Sensor

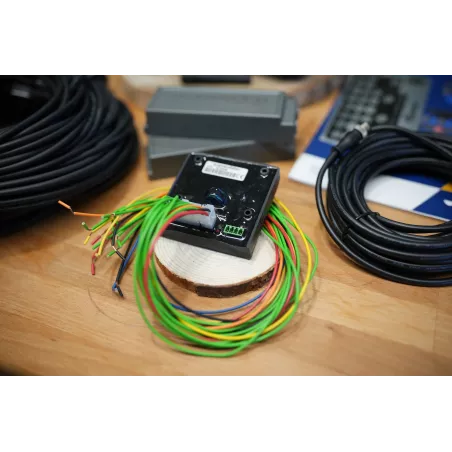

The set includes a sensor and an MDC card with a measuring range of 0–400 bar (0 - 5801,5 psi) for the main boom.

Scanreco RC400 Radio Remote Control Systems.

The Scanreco RC 400 G2B remote control system has been especially developed for hydraulically driven mobile cranes and machinery. The system is a digital remote control system based on an extremely advanced microprocessor technology. Years of exhaustive and demanding testing have shown that the remote control system can cope with the roughest of environments.

The system is protected against electromagnetic and radio frequency radiation and can be installed onto all hydraulic valve types (voltage, current pulse width, or

protocol steered) found on the market.

In its basic form the remote control system is comprised of a portable control unit with manoeuvre levers for proportional control and switches for ON/OFF functions, a central unit with connection cable for driving proportional electro-hydraulic slide controllers.

Digitally coded control information (lever deflection and switch position) is sent from the portable control unit via radio to the central unit. The portable control unit and central unit translate the magnitude and direction of the manoeuvre lever deflectionsand switch position.

It can be used for four typical proportional functions, e.g.

-Slewing (rotation of crane)

-Main lift

-Jib

-Extension

-Grab open / close

-Rotator

You can also choose a different function as below:

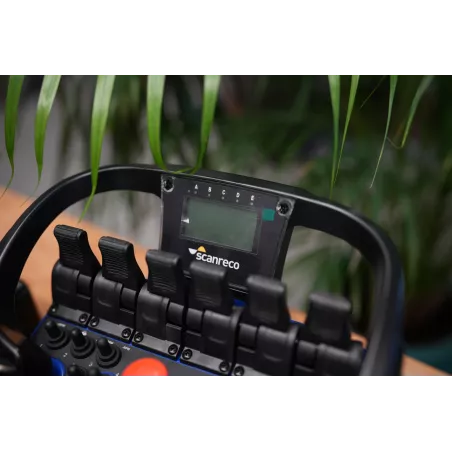

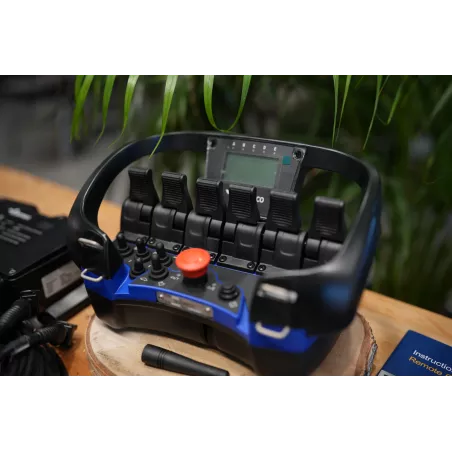

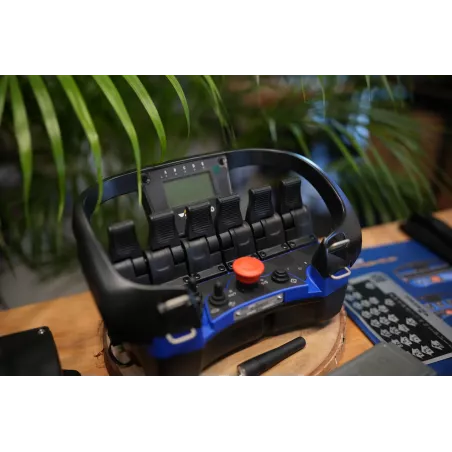

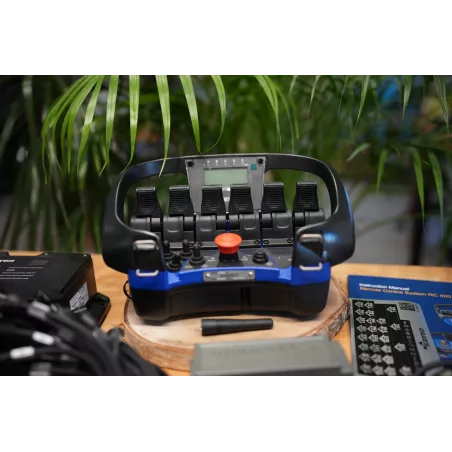

Scanreco G2B Mini with 6 levers and screen

- 1-6 linear levers

- Stop function according to EN ISO 13849-1 Cat. 3, PL e

- Various toggle switches, buttons and rotary switches

- Frequency bands: 433-434 or 902-928MHz (other frequencies available on request)

- Operating range > 100 m / > ~330 ft.

- Degree of protection: IP65

- Operating temperature: -20°C to +70°C / ~-4°F to +160°F

- Cable control: standard length 10 meters / ~33 ft.

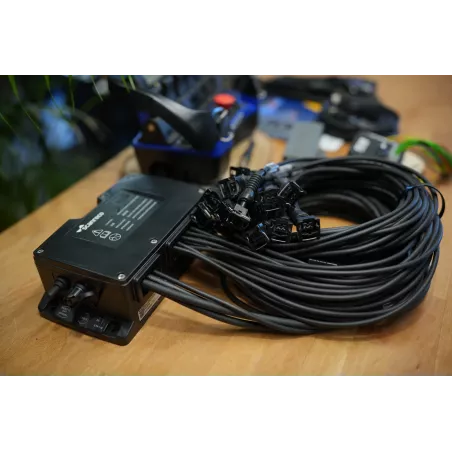

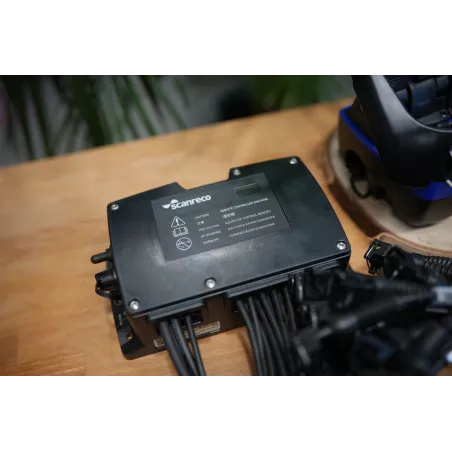

- G2B Receiver PWM 12 or 24 VDC power supply

- Choice of radio or cable control

- 8 bi-directional proportional outputs

- All analog outputs are programmable for final setting of speeds

- 14 digital outputs (where 1 is combined input/output) and 4 digital inputs (where 1 is combined input/output)

- A DV output to control the dump valve

- Radio communication in the ISM band using frequency hopping technology

- Manual mode available to bypass the radio system, providing only the DV output and allowing manual control via the hydraulic manifold (where available).

- Programmable logic with block, soak, decelerate, ramp functions and much more

- Please note that cable sets or connection plug sets are NOT included in the scope of delivery and must be ordered separately if required.

- Dimensions: (W x H x D): 350 x 160 x 190 mm / ~13.78 x 6.30 x 7.48 inches (without color display)

Pressure sensor 4-20 ma universal 0-400 bar (0 - 5801,5 psi) load monitoring.

Pressure transmitter for mobile hydraulics.

Model: MH-2

Technical Data: As per data sheet PE 81.37

Specifications:

Material of Wetted Parts: Steel 1.4435 and 1.4542

Medium Temperature Range: -40°C to +125°C (-40°F to +257°F)

Output Signal: 4 ... 20 mA, 2-wire

Unit: Bar

Pressure Range: 0 ... 400 bar ( 0 - 5801,5 psi)

Process Connection: G 1/4 A (to DIN 3852-E)

Housing Material: High-resistance glass-fibre reinforced plastic (PTB)

Electrical Connection: 4-pin M12x1 circular connector

Accuracy: 1.0% of span

Load Monitoring: Yes

Features:

OEM pressure transmitter with advanced thin film technology

Specifically designed for mobile hydraulic applications

Compatible with CLG Loglift 120 System

Pin 1: Power

Pin 3: Signal

The system is configured and ready to use in Plug and Play mode.

The kit works with a lot of application. For sure please contact with us.
