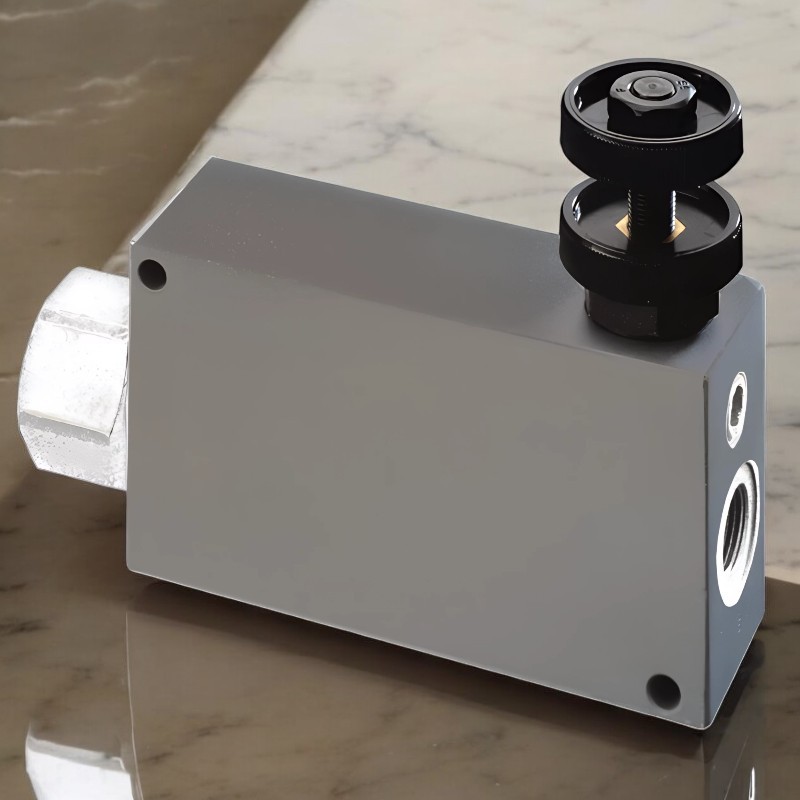

3-Way Flow Control Valve Residual Oil Pressurizable VPR/3/EP
328 $
Product ID: 1393
Order number
Flow control valve 3-way pressure compensated-residual quantity pressurizable-steel housing
The valve keeps the volume flow in port C | P constant regardless of the load pressure and input volume flow E | E.
The residual oil flow in R | B can be pressurized and can be used for another consumer. The connections C | P and R | B are pressure-compensated. The oil can only flow through the valve in one direction.
The additional use of a pressure relief valve between the flow control valve and the consumer is essential.
- Share this:
- Secured Payment
- Fast Delivery
- 24/7 Tech Support
Information
 |

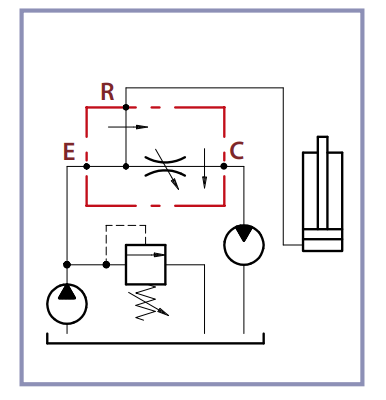

Scheme:
 |
NO VIDEO PROVIDED FOR THIS PRODUCT
Volume discounts
| Quantity | Unit discount | You Save |
|---|---|---|
| 5 | 4% | 66 $ |
| 10 | 8% | 263 $ |
| 20 | 15% | 985 $ |
